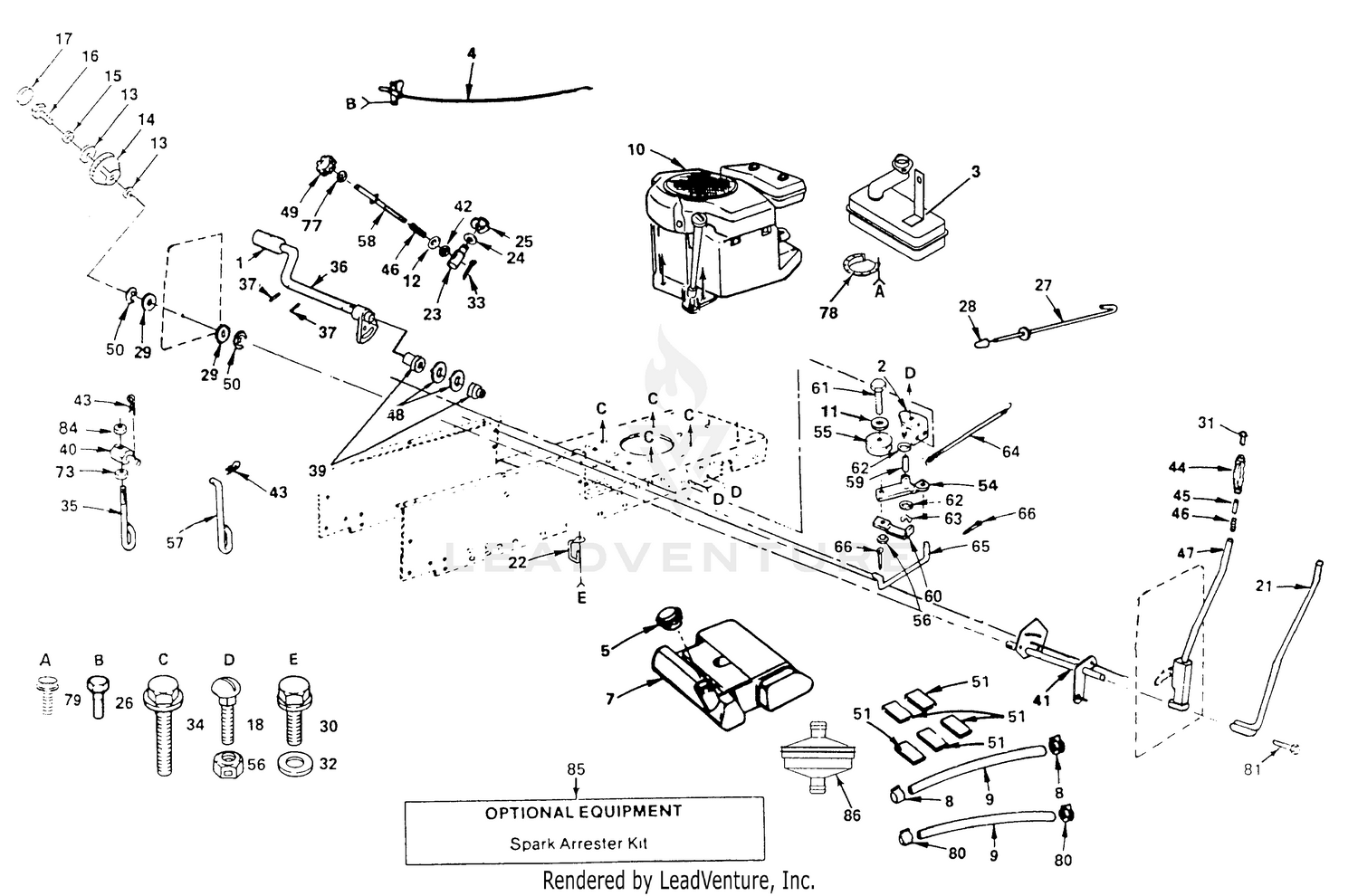

Power And Mechanical Controls Group

Power And Mechanical Controls Group

Parts (67)

RefPart NumberDescription
1 510089501 PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99
2 532123102 BRKT ASM Price: $11.99
3 532125799 MUFFLER This part replaces 532123816. Price: $143.99
4 532132752 CONTROL.TH/CH.RH.BLK.FLG.26 This part replaces 532124055. Price: $19.99
5 532124462 FUEL CAP ASS'Y Price: $15.99
7 532106020 FUEL TANK LT Price: $55.00
8 532123487 HOSE CLAMP Price: $3.99
9 532008548 FUEL LINE T This part replaces 532101335. Price: $6.99
10 532123817 Engine 12.5 HP Price: Call Us
11 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
12 819131016 WASHER Price: $2.99
13 819112410 WASHER Price: $3.99
14 532123934 HEIGHT INDICATOR Price: $2.99
15 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99
16 596580801 Bolts This part replaces 874780516. Price: $2.99
17 532123935 PLUG,HOLE Price: $4.99
18 872140606 Bolt, Carriage, 3/8-16 x 3/4 Price: $4.99
21 532121006 LEVER ROD LT Price: $24.99
22 532136715 KEEPER BELT This part replaces 532104777. Price: $6.79
23 532110810 TRUNION LT Price: $17.99
24 819151216 Washer, 15/32 x 3/4 x 16 Ga. Price: $2.45
25 812000037 Klip Ring Price: $4.99
26 596582501 Bolts This part replaces 817720410. Price: $2.99
27 532133261 BRAKE PARK ROD This part replaces 532125637. Price: $4.99
28 532071673 PLUNGER CAP Price: $4.99
29 819292016 Washer, 29/32 x 1 - 1/4 x 16 Ga Price: $6.99
30 534200501 BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99
31 532125925 PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99
32 596134901 GSPH This part replaces 819131312. Price: $2.99
33 596917601 Pins This part replaces 876020308. Price: $1.99
34 532125006 SCREW Price: $4.62
35 532110448 LINK ADJ T Price: $7.99
36 532122424 SHAFT FOOT PEDAL Price: $21.56
37 532001572 PIN.ROLL.3/16 X 1" Price: $3.99
39 532120183 BEARING.NYLON Price: $5.99
40 532132793 LIFT TRUNION This part replaces 532110447. Price: $4.99
41 532124516 SHAFT LIFT Price: $54.20
42 532110807 NUT T Price: $3.99
43 532124670 RETAINER-SPRNG RB Price: $5.99
44 532109413 GRIP Price: $3.99
45 532125925 PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99
46 532002876 SPRING This part replaces 532124874. Price: $3.99
48 596933401 Washers This part replaces 819211616. Price: $2.99
49 532121891 HDLE ADJ LIFT Price: $4.99
50 812000022 E-RING Price: $3.99
51 532006431 PAD-SPACER T Price: $2.38
54 532123789 ARM IDLER Price: $13.07
55 532139245 PULLEY IDLER This part replaces 532123766. Price: $32.99
56 596322601 Nuts This part replaces 873680600. Price: $2.99
57 532110029 LIFT LINK LT Price: $3.45
58 532110729 ROD LIFT LT Price: $18.99
59 532105706 BEARING LT (2 2) Price: $5.99
60 531151801 SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99
61 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99
62 532110812 WASHER LT Price: $3.10
63 812000039 KLIP RING Price: $4.99
64 532105709 SPRING, RETURN LT Price: $9.99
65 532199652 LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99
66 596029501 Pins This part replaces 876020412. Price: $2.99
73 873610700 NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99
77 873220600 NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99
78 532101326 DEFL MUFFLER LTV Price: $4.01
79 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99
80 532123487 HOSE CLAMP This part replaces 532006999. Price: $3.99
81 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99
84 873610700 NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $5.99
85 532123110 SPARK ARREST KIT Price: $48.44
