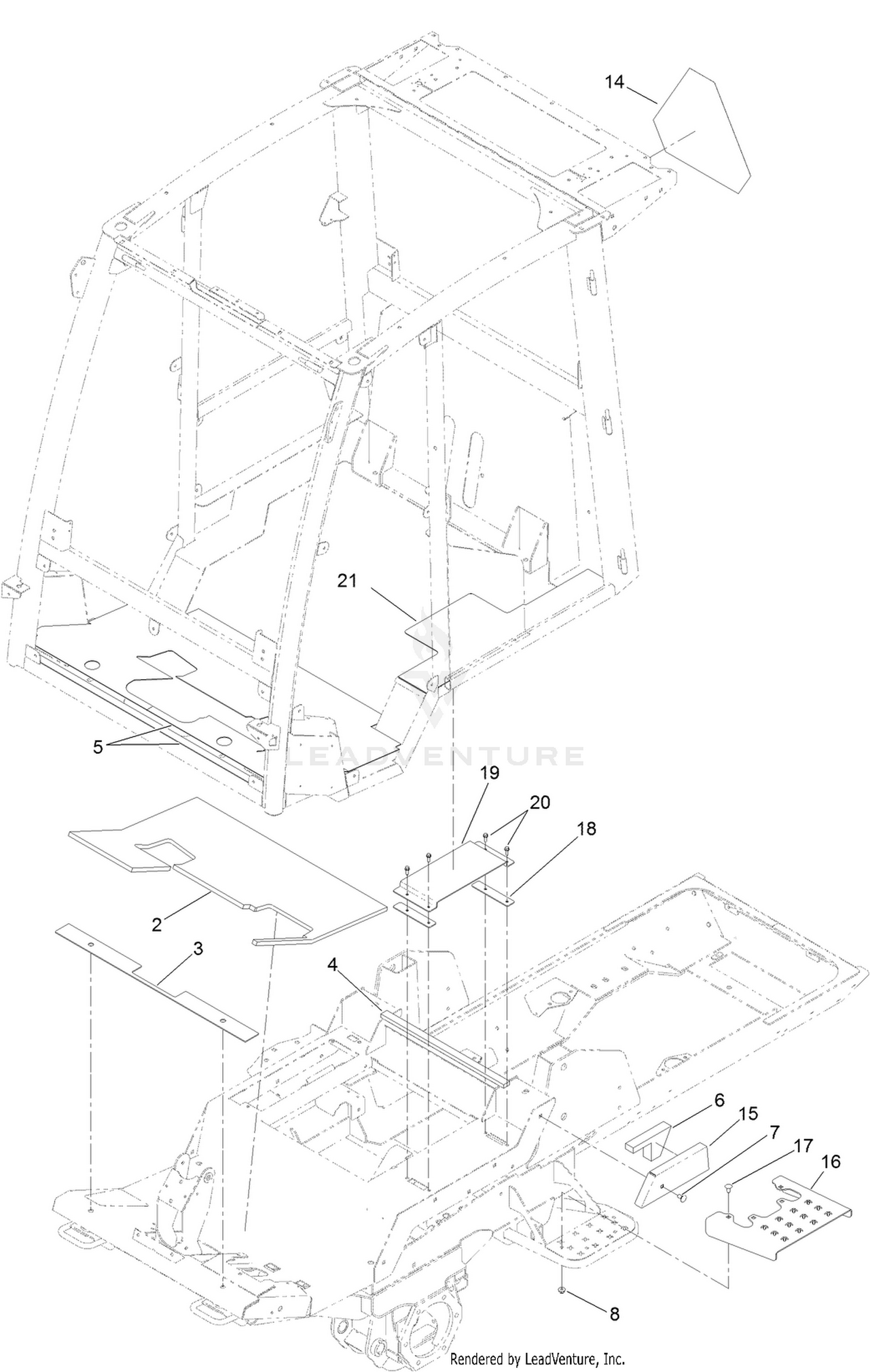

Step and Tread Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 132-3598 | FOAM-TREAD Price: $99.99 |
| 3 | 132-3599 | GASKET-FRONT Price: $15.52 |
| 4 | 121-8548 | FOAM-SEAL, REAR Price: $16.49 |
| 5 | 132-3528 | TREAD Price: $261.33 |
| 6 | 127-9861 | FOAM-CORNER Price: $8.72 |
| 7 | 3231-1 | SCREW-CARR Price: $0.99 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 14 | 120-0250 | DECAL-WARNING Price: $41.33 |
| 15 | 130-5748-03 | COVER-MOUNT Price: $49.94 |
| 16 | 127-9976-03 | PLATE-STEP Price: $120.08 |
| 17 | 3231-21 | SCREW-CARR Price: $0.76 |
| 18 | 125-9748 | GASKET-STEP Price: $2.41 |
| 19 | 125-9747-01 | BRACKET-STEP Price: $41.04 |
| 20 | 3234-4 | SCREW-HHF Price: $0.50 |
