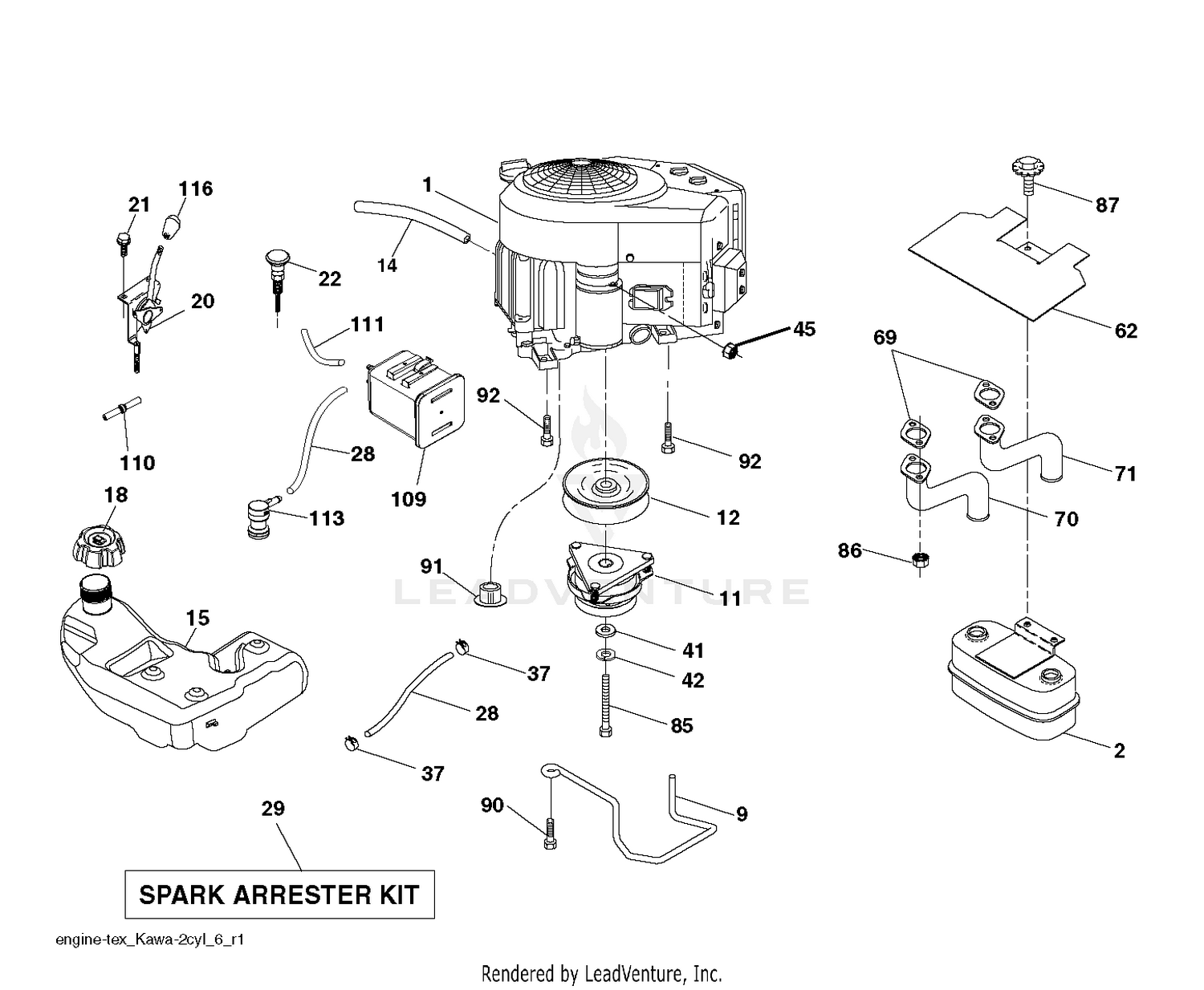

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 2 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 4 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 5 |
65-9940 |
SPRING Price: $4.01 |
| 6 |
95-8866 |
TUBE-ARM, ROCKER Price: $11.97 |
| 7 |
32105-9 |
SCREW Price: $0.54 |
| 8 |
3296-9 |
NUT-HEX Price: $0.25 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
99-3593 |
ARM-ROCKER Price: $9.29 |
| 10 |
95-8900 |
SWITCH Price: $95.42 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
3218-2 |
NUT-JAM Price: $0.25 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
323-4 |
SCREW-HH This part replaces 322-41. Price: $1.02 |
| 14 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
140-6253 |
TRACTION BRACKET ASM This part replaces 95-8869-03. Price: $58.24 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 17 |
95-8893 |
BAR-DEFLECTOR Price: $29.34 |
| 18 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 This part replaces 532430213. Price: $37.99 |
| 19 |
106-4154 |
FLOORPLATE ASM Price: $477.71 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
106-2661-0P |
PLATE-SUPPORT This part replaces 106-2661-01. Price: $18.75 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 25 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 26 |
99-3388 |
DECAL Price: $12.99 |
| 27 |
99-3565 |
NUT-SQUARE Price: $0.54 |
| 28 |
3217-6 |
NUT-HEX Price: $1.19 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
100-4871 |
BRACKET-SWITCH, NEUTRAL Price: $17.90 |
| 33 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 34 |
3229-20 |
SCREW-CARR Price: $0.80 |
| 35 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 37 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 40 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 41 |
3217-5 |
NUT-HEX Price: $0.25 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
