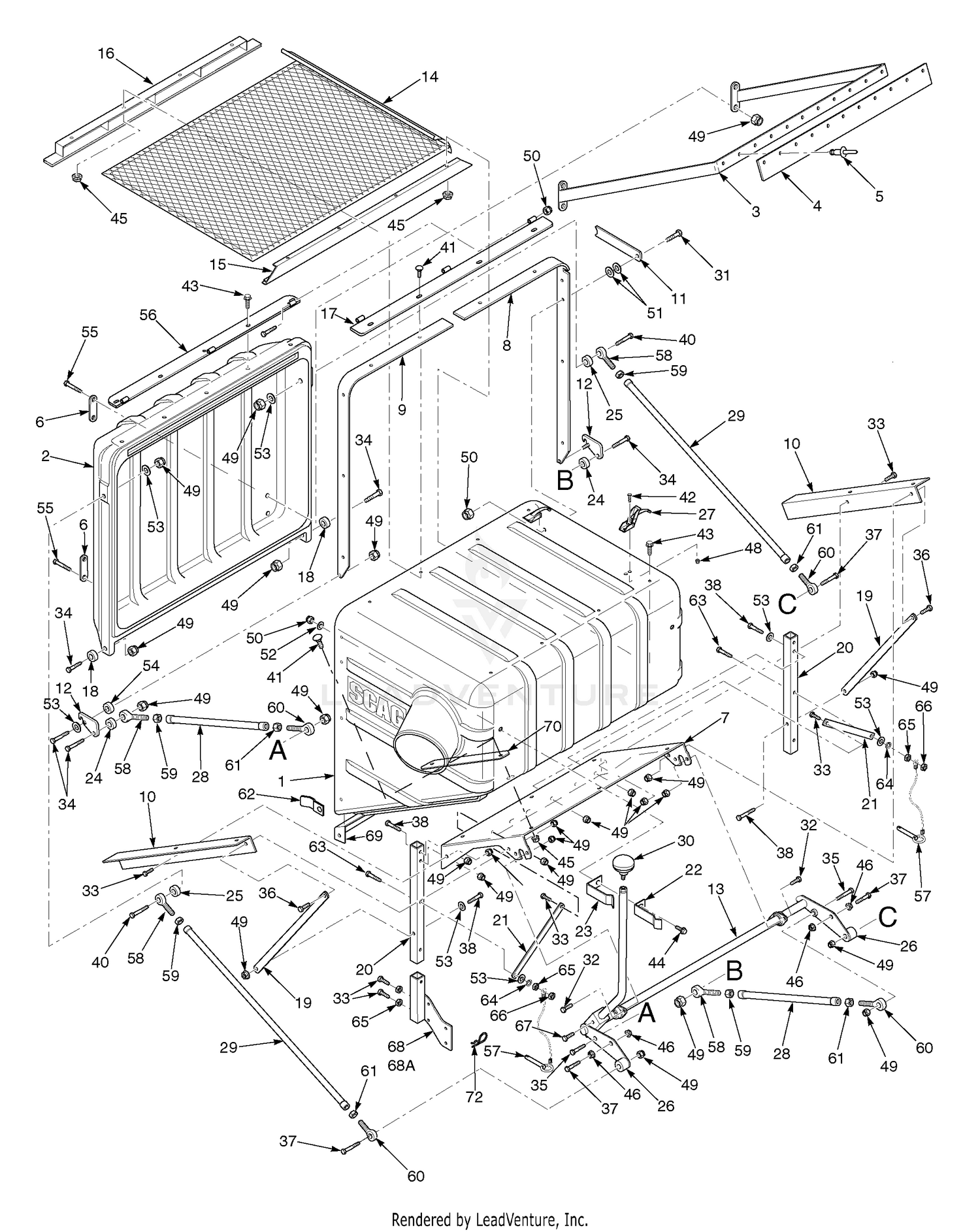

| Ref | Part Number | Description |
|---|
| 1 |
483038 |
Hopper, GC-STC-CS Price: Call Us |
| 2 |
482732 |
Door, GC-CS Price: Call Us |
| 3 |
461626 |
Sweeper Weldment, GC-CS Price: Call Us |
| 4 |
482777 |
Pad, Rubber Price: Call Us |
| 5 |
04090-02 |
Pop Rivet, 3/16 x .652 Price: Call Us |
| 6 |
423834 |
Plate, Stiffener Price: Call Us |
| 7 |
423938 |
Support Frame, Hopper Price: Call Us |
| 8 |
423849 |
Hinge Bracket, L.H. Price: Call Us |
| 9 |
423850 |
Hinge Bracket, R.H. Price: Call Us |
| 10 |
423858 |
Bracket, Hopper Support Price: Call Us |
| 11 |
423837 |
Latch, Door Prop Price: Call Us |
| 12 |
423840 |
Plate, Latch Price: Call Us |
| 13 |
451980 |
Bellcrank Weldment, Lever This part replaces 451838. Price: Call Us |
| 14 |
451601 |
Debris Screen Weldment Price: Call Us |
| 15 |
451602 |
Screen Support Weldment, Rear Price: Call Us |
| 16 |
451603 |
Screen Support Weldment, Front Price: Call Us |
| 17 |
451607 |
Hinge Weldment, Hopper Price: Call Us |
| 18 |
43631 |
Spacer Price: Call Us |
| 19 |
423851 |
Brace Stiffener, Short Price: Call Us |
| 20 |
423852 |
Tube, Upright Price: Call Us |
| 21 |
422386 |
Brace, Engine Mount Price: Call Us |
| 22 |
424405 |
Latch, Dump Rod Inner Price: Call Us |
| 23 |
424406 |
Latch, Dump Rod Outer Price: Call Us |
| 24 |
43063 |
Spacer Price: Call Us |
| 25 |
43282 |
Spacer Price: Call Us |
| 26 |
43277 |
Spacer Price: Call Us |
| 27 |
481309 |
Latch, Hood Price: Call Us |
| 28 |
43641 |
Linkage Assembly, Lower Price: Call Us |
| 29 |
43640 |
Linkage Assembly, Upper Price: Call Us |
| 30 |
481245 |
Knob Price: Call Us |
| 31 |
04001-10 |
Bolt, Hex Head 5/16-18 x 1-1/4 Price: Call Us |
| 32 |
04001-18 |
Bolt, Hex Head 3/8-16 x 3/4" Price: Call Us |
| 33 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 34 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 35 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 36 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 37 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 38 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 39 |
04001-63 |
Bolt, Hex Head 5/16-18 x 3-1/2" Price: Call Us |
| 40 |
04001-77 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 41 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 42 |
04010-01 |
Screw, #10-32 x 1/2" Price: Call Us |
| 43 |
04017-16 |
Cap Screw, 5/16-18 x 3/4" Serr. Flan. Price: Call Us |
| 44 |
04017-17 |
Cap Screw, 5/16-18 x 1" Serr. Flan. Price: Call Us |
| 45 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 46 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 47 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 48 |
04021-01 |
Nut, #10-32 Elastic Stop Price: Call Us |
| 49 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 50 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 51 |
04032-01 |
Washer, Special Wave Price: Call Us |
| 52 |
04040-15 |
Washer, 5/16-.375 x .875 x .083 Flat Price: Call Us |
| 53 |
04041-07 |
Washer, 3/8-.931 x .938 x .105 Flat Price: Call Us |
| 54 |
43642 |
Bushing, Hopper Latch GC-CS Price: Call Us |
| 55 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 56 |
451598 |
Hinge Weldment, Door Price: Call Us |
| 57 |
481547 |
Lanyard Price: Call Us |
| 58 |
482585 |
Rod End, Male 3/8-24 LH Thread This part replaces 481538. Price: Call Us |
| 59 |
04020-26 |
Nut, 3/8-24 UNF L.H. Thread Price: Call Us |
| 60 |
482586 |
Rod End, Male 3/8-24 RH Thread This part replaces 481539. Price: Call Us |
| 61 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 62 |
423865 |
Alignment Bracket, GC-CS Price: Call Us |
| 63 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 64 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 65 |
04020-04 |
Nut, 3/8-16 UNC Zinc Price: Call Us |
| 66 |
04021-05 |
Nut, 3/8-16 Center Lock Price: Call Us |
| 67 |
04001-12 |
Bolt, Hex Head 5/16-18 1-3/4" Price: Call Us |
| 68 |
461995 |
Mounting Bracket Weldment RH This part replaces 451726. Price: Call Us |
| 68A |
461994 |
Mounting Bracket Weldment LH This part replaces 451725. Price: Call Us |
| 69 |
423855 |
Bracket, Lower Stiffener Price: Call Us |
