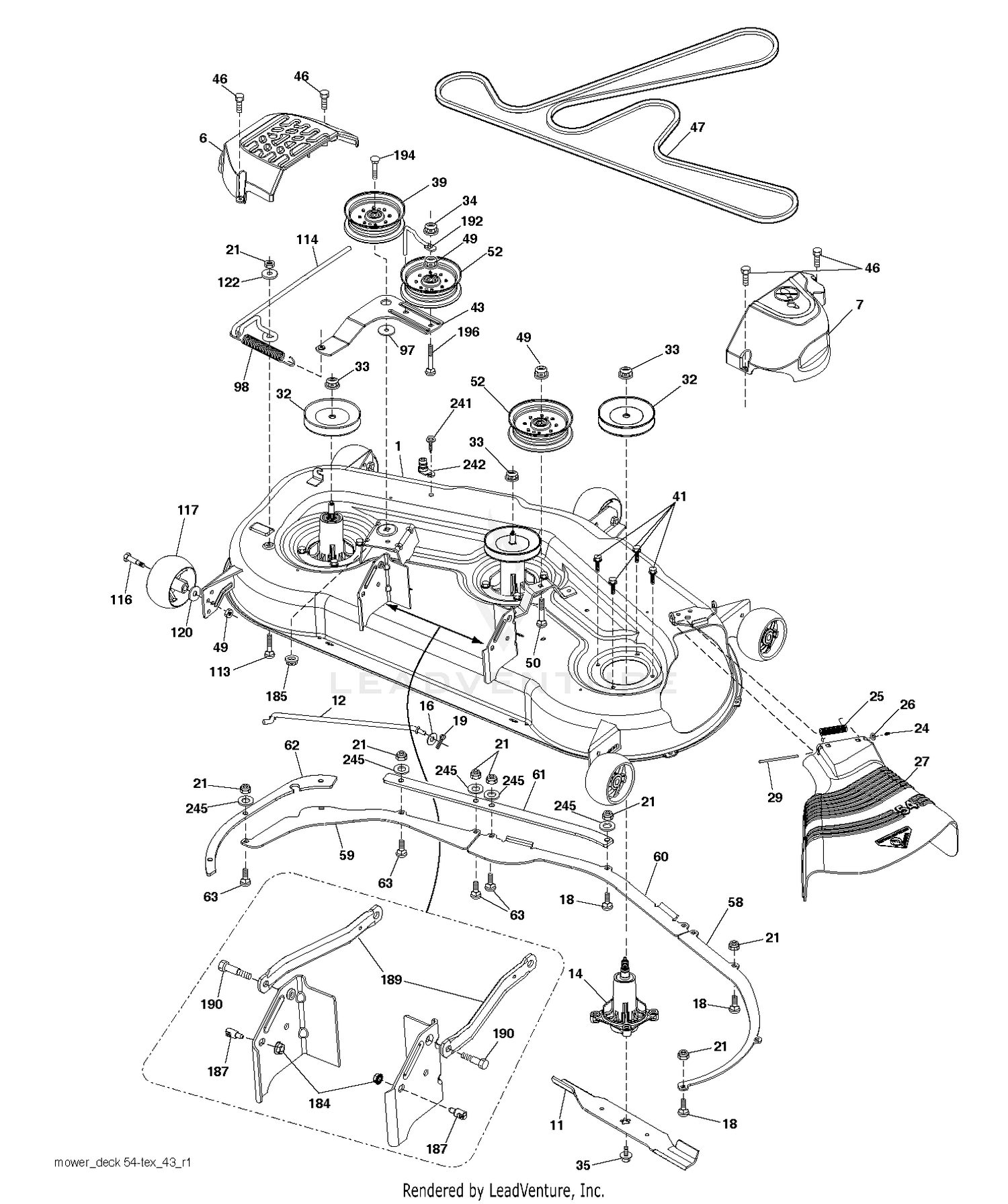

| Ref | Part Number | Description |
|---|
| 1 |
532418230 |
DECK SVC 54" 417743X668 Price: $649.99 |
| 2 |
117-3238 |
GAUGE-FUEL Price: $86.50 |
| 3 |
46-6560 |
BUSHING Price: $2.94 |
| 4 |
117-3370 |
PIPE-STAND Price: $47.06 |
| 5 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 14 |
587820301 |
KIT.MANDREL.GREASEABLE.TALL Price: $49.99 |
| 16 |
596133201 |
Washers Price: $5.99 |
| 18 |
596136401 |
Bolts Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 21 |
596040501 |
Hardware Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts Price: $1.00 |
| 34 |
596322601 |
Nuts Price: $2.99 |
| 35 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 Price: $54.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136301 |
Bolts Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 61 |
585322605 |
PLATE.REIN.FRONT.BOLT54"X431 Price: $17.99 |
| 62 |
585322806 |
REINFORCEMENT PLATE 54 SIDE BO This part replaces 585322805. Price: $14.99 |
| 63 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 120 |
596134901 |
GSPH Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 184 |
596135701 |
GSPW Nuts Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 189 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 196 |
596337801 |
Bolts Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 245 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
