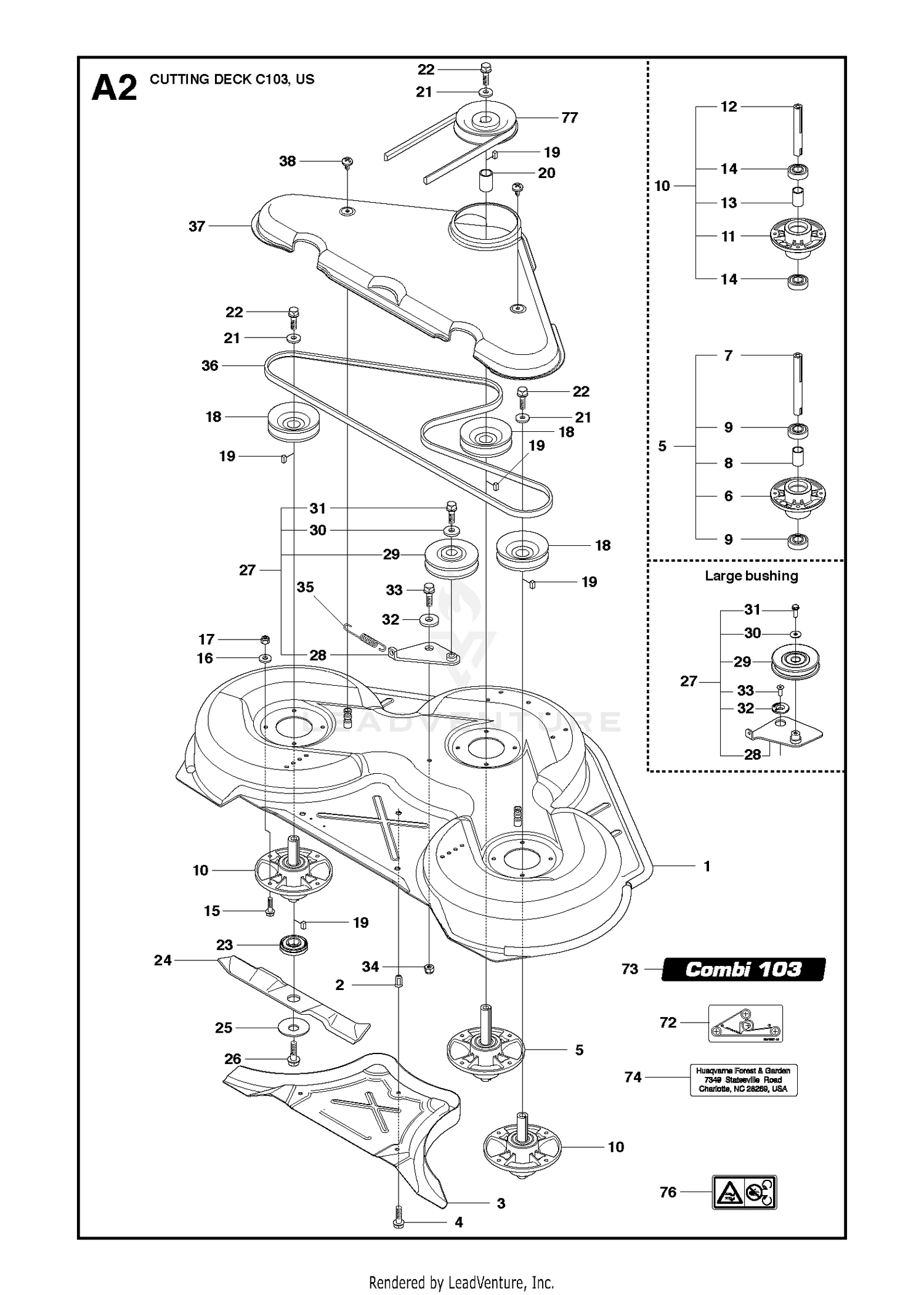

103CM CUTTING DECK
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 574210801 | CUTTING DECK RIDER Price: $379.99 |
| 3 | 544449201 | PLUG Price: $64.99 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 504188210 | BLADE Price: $27.99 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589530601 | BELT Price: $54.99 |
| 37 | 544096103 | BELT COVER C103 HUSQ - GREY This part replaces 544096101. Price: $74.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238103 | DECAL Price: $4.99 |
| 74 | 506983901 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
| 77 | 506778601 | PULLEY Price: $49.99 |
