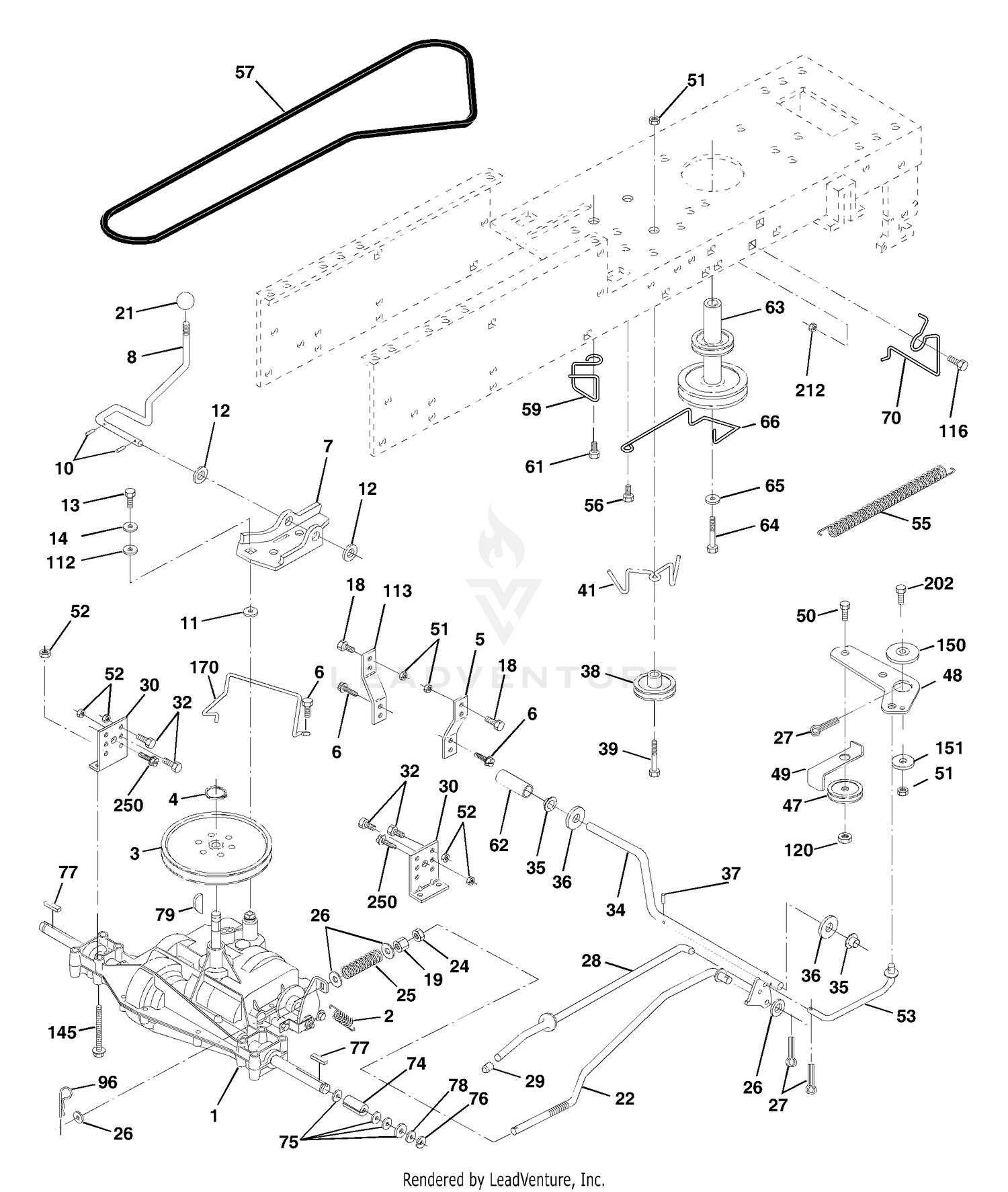

| Ref | Part Number | Description |
|---|
| 1 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 2 |
146682 |
Spring Extension Brake Price: Call Us |
| 2 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 5 |
121520X |
Strap Torque Rh Pnt Blk Price: Call Us |
| 5 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 5 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 6 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 6 |
17060512 |
Screw 5/16-18 X 3/4 Price: Call Us |
| 6 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 7 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 7 |
162240 |
Bracket T/A Saddle Shift Price: Call Us |
| 7 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 7 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 8 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 8 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
| 8 |
131679 |
Rod Shifter Black(dana) Price: Call Us |
| 8 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
| 9 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 9 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 9 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 10 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 10 |
76020416 |
Pin,Cotter Price: Call Us |
| 10 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 98-9555. Price: $62.26 |
| 10 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 11 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 11 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 12 |
19151216 |
Washer 15/32 X 3/4 X 16ga Price: Call Us |
| 12 |
98-9373 |
O-RING Price: $3.11 |
| 13 |
74550412 |
Bolt 1/4-28 UNF Gr. 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Price: Call Us |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5 Price: Call Us |
| 19 |
73800600 |
Nut Price: Call Us |
| 21 |
106933X |
Knob Rd 1/2-13 Plstc Thds Blk Price: Call Us |
| 22 |
130804 |
Rod Brake Lt Price: Call Us |
| 24 |
73350600 |
Nut Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer Price: Call Us |
| 27 |
76020412 |
Pin Price: Call Us |
| 28 |
175765 |
Rod Brake Parking Price: Call Us |
| 29 |
71673 |
Cap Parking Brake Price: Call Us |
| 30 |
174973 |
Bracket Transmission Price: Call Us |
| 32 |
74760512 |
Bolt Price: Call Us |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Roll Pin Price: Call Us |
| 38 |
179114 |
Pulley Idler Composite Price: Call Us |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 Unc x 3 Price: Call Us |
| 41 |
175556 |
Keeper Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Price: Call Us |
| 51 |
73680600 |
Nut Price: Call Us |
| 52 |
73680500 |
Nut Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
130801 |
V-belt Ground Drive 95 Price: Call Us |
| 59 |
169691 |
Keeper Belt Chassis Span Ctr. Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Pulley Engine Price: Call Us |
| 64 |
71170764 |
Bolt, Hex 7/16-20 x 4 Grade 5 Price: Call Us |
| 65 |
10040700 |
Washer, Lock, Hvy Hlcl Spring 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Flproof Price: Call Us |
| 70 |
134683 |
Guide Belt Dr Mower Rh Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E Ring Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1 5/8 X 16ga Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 X 3/4 X 10 Ga Price: Call Us |
| 113 |
127285X |
Strap Torque Lh Price: Call Us |
| 116 |
72140608 |
Bolt, Rdhd Sqnk 3/8-16 x 1.00 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 145 |
74490540 |
Bolt Hex Flghd 5/16-18 x Gr. 5 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 170 |
178394 |
Keeper Belt Price: Call Us |
| 212 |
145212 |
Nut Hex Flange Lock Price: Call Us |
