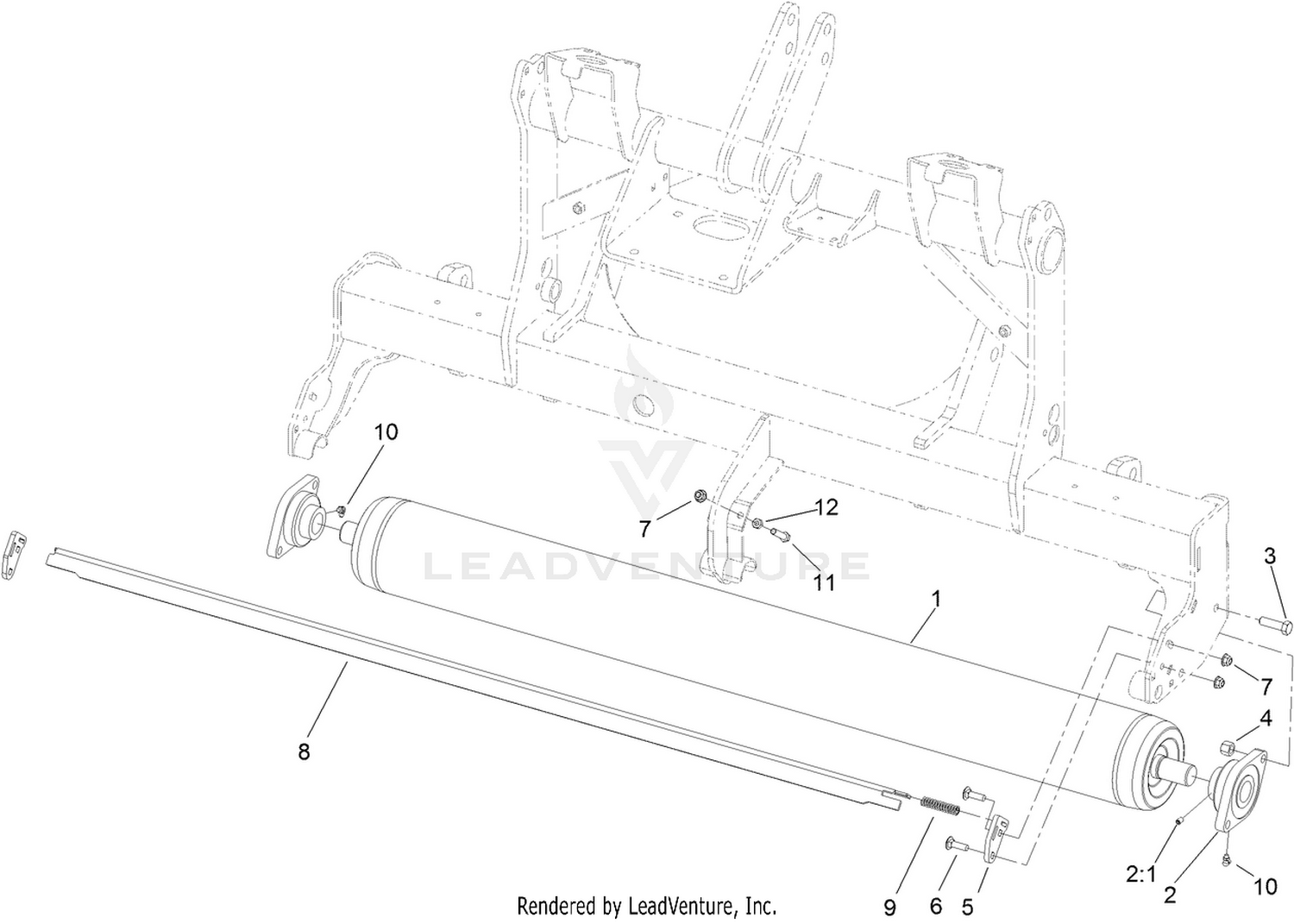

Roller and Scraper Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4252-03 | ROLLER ASM Price: $1,262.16 |
| 2 | 105-0962 | BEARING-MOUNT, FLANGE Price: $64.56 |
| 3 | 325-7 | SCREW-HH Price: $1.53 |
| 4 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 5 | 110-4290 | ARM-SCRAPER Price: $21.45 |
| 6 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 8 | 110-4288-03 | SCRAPER-ROLLER Price: $96.84 |
| 9 | 108-4469 | SPRING-COMPRESSION Price: $7.45 |
| 10 | 302-40 | FITTING-GREASE, 90 DEG Price: $1.70 |
| 11 | 323-53 | SCREW-HH Price: $1.36 |
