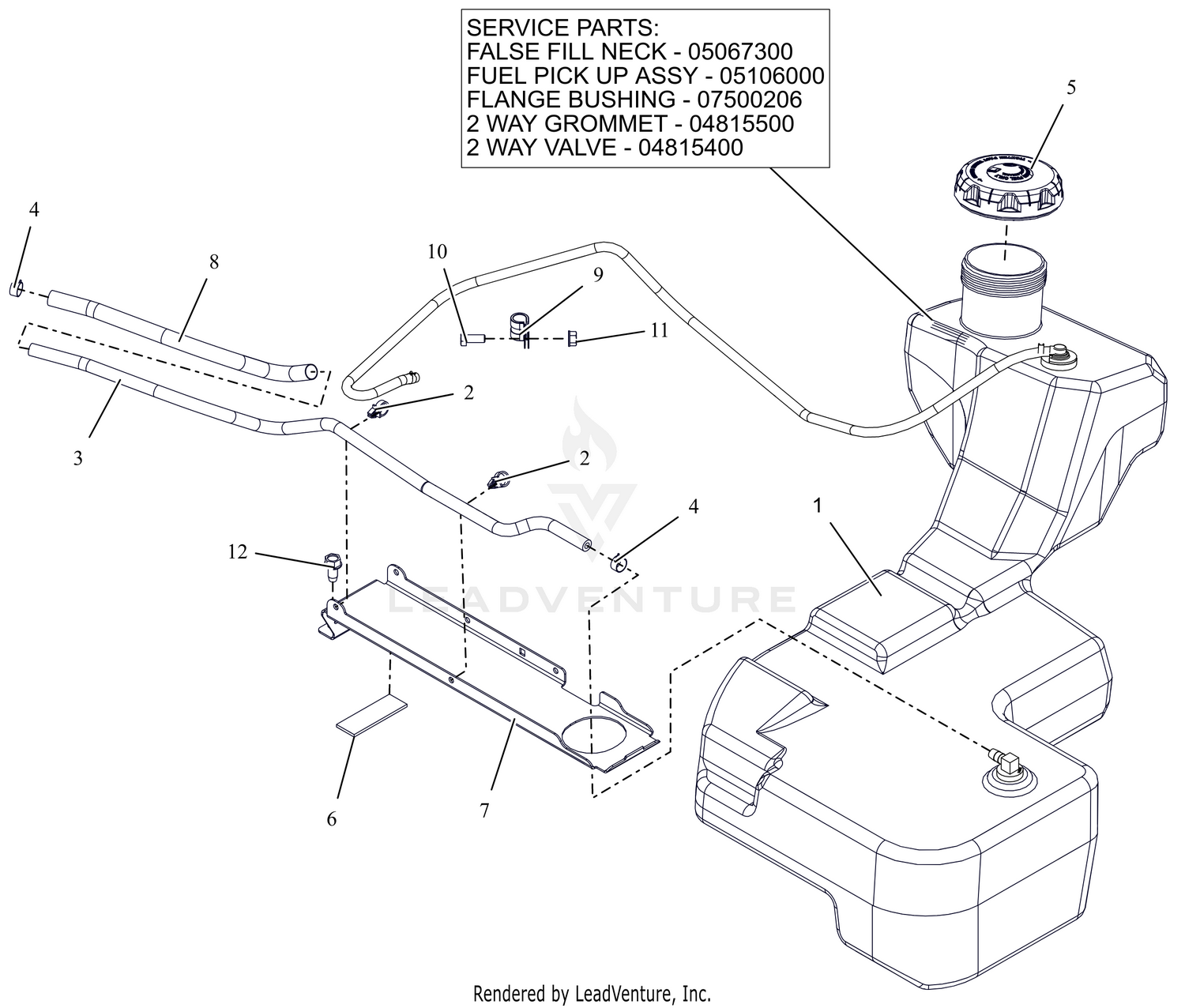

| Ref | Part Number | Description |
|---|
| 1 |
09167300 |
ASM, FUEL TANK-HD This part replaces 05264900. Price: $193.95 |
| 2 |
00367900 |
ROUTING CLIP (1/2" ID) Price: $1.45 |
| 3 |
03278100 |
HOSE, .25 LOW-PERM BULK GAS, SOLD BY THE INCH Price: $0.95 |
| 4 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 5 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04558000. Price: $30.95 |
| 6 |
04850000 |
PAD,RBR 1.0"X3.0" W/ADHESIVE Price: $2.45 |
| 7 |
05024151 |
BRKT, FUEL TANK HOLD DOWN Price: $19.45 |
| 8 |
05133700 |
SLEEVE, THERMAL 12" Price: $11.45 |
| 9 |
06908200 |
CLAMP, CUSHIONED STEEL Price: $5.45 |
| 10 |
05901704 |
BLT,HEX .31-18X.75 G5 ZCC Price: $1.45 |
| 11 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
