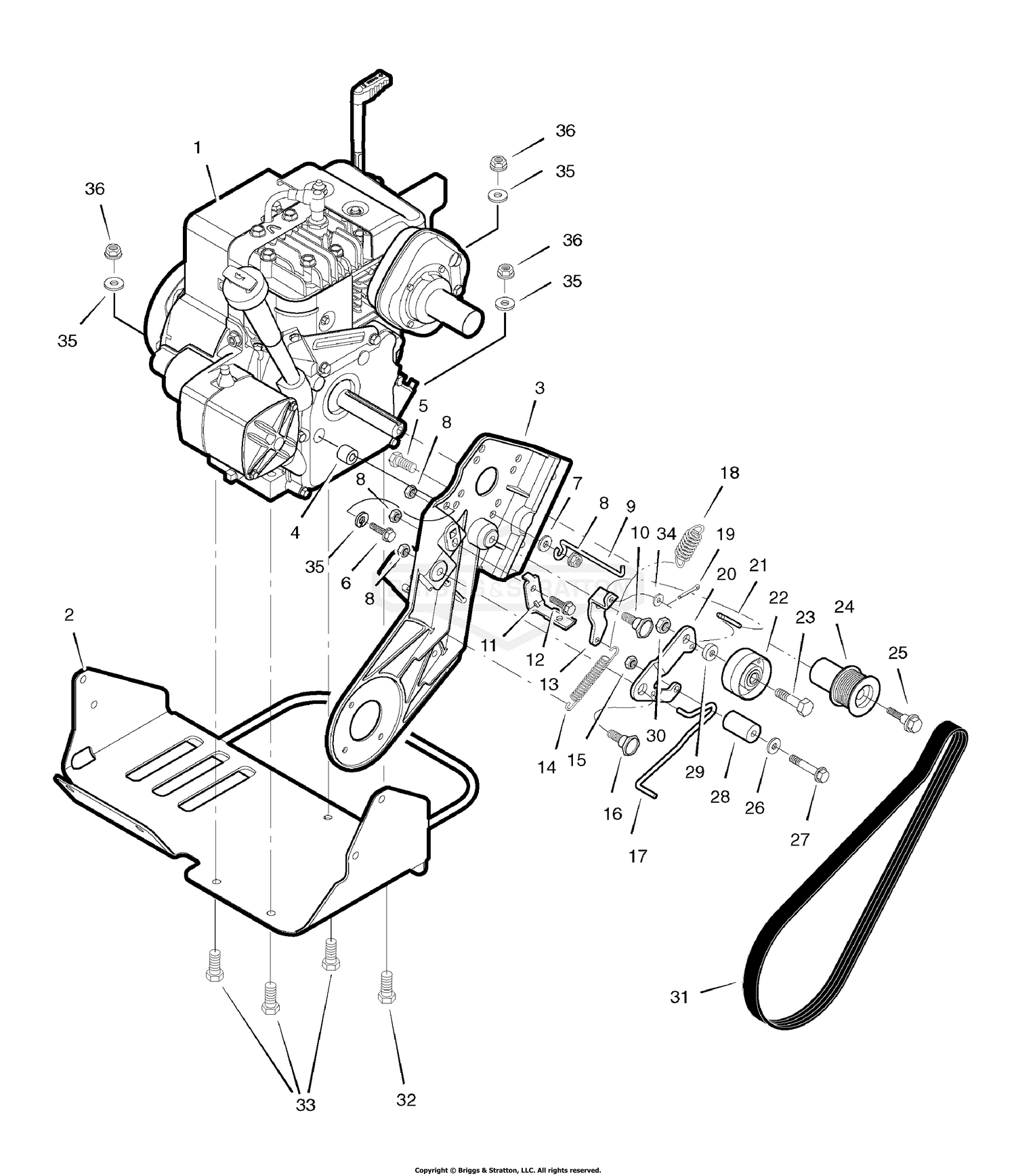

| Ref | Part Number | Description |
|---|
| 2 |
1741989HYP |
CRADLE ASSEMBLY, Engine This part replaces 1741989H. Price: $155.14 |
| 3 |
1501872E701MA |
FRAME, L.H. This part replaces 722321. Price: Call Us |
| 4 |
1502027MA |
ANTIVIBRATION MOUNT, Engine This part replaces 722360. Price: $3.52 |
| 5 |
1X216MA |
BOLT, Hex 5/16-18 x 0865 This part replaces 727947. Price: $3.29 |
| 6 |
6X118MA |
BOLT, Hex 5/16-24 x 1.125 This part replaces 725244. Price: $3.29 |
| 7 |
703350 |
WASHER This part replaces 725331. Price: $3.72 |
| 8 |
703164 |
NUT This part replaces 725408. Price: $2.87 |
| 9 |
334079MA |
GUIDE, Belt This part replaces 723651. Price: $6.84 |
| 10 |
333594MA |
BOLT-SHD.500X.177 .31 This part replaces 723625. Price: $18.18 |
| 11 |
333970MA |
PAD, Brake This part replaces 723648. Price: $4.80 |
| 12 |
579052MA |
SCREW.25-20X0.62 HHC This part replaces 728095. Price: $4.07 |
| 13 |
313444MA |
IDLER, Arm Pivot This part replaces 727078. Price: Call Us |
| 14 |
313473MA |
SPRING, Extension .38 O.D. x .039W This part replaces 723264. Price: $5.55 |
| 15 |
1501216MA |
KIT,SHEAR BOLT.25-20X This part replaces 725429. Price: $4.40 |
| 16 |
333594MA |
BOLT-SHD.500X.177 .31 This part replaces 723625. Price: $18.18 |
| 17 |
1501009MA |
WIRE, Brake This part replaces 722046. Price: $8.44 |
| 18 |
313471MA |
SPRING,EXT.75 OD X.06 This part replaces 723263. Price: $4.16 |
| 19 |
121223MA |
PIN, Cotter This part replaces 727500. Price: $2.88 |
| 20 |
1741727YP |
ARM, Idler This part replaces 1741727. Price: $8.79 |
| 21 |
313436MA |
ROD, Clutch Linkage This part replaces 723256. Price: $4.80 |
| 22 |
48924MA |
PULLEY, Idler This part replaces 724085. Price: $28.91 |
| 23 |
1741500MA |
SCREW, 3/8-16 x 1-5/8 This part replaces 1741500. Price: $2.79 |
| 24 |
1501908MA |
PULLEY, Model 9 Engine This part replaces 722331. Price: $25.13 |
| 25 |
1501907MA |
BOLT, Engine Pulley This part replaces 722330. Price: $8.34 |
| 26 |
703332 |
WASHER This part replaces 725330. Price: $3.72 |
| 27 |
180044MA |
SCREW, 1/4-20 x 2.00 This part replaces 727940. Price: $3.28 |
| 28 |
1501010MA |
PINCH ROLLER This part replaces 729335. Price: $5.45 |
| 29 |
1741499MA |
SPACER, Idler This part replaces 1741499. Price: $3.79 |
| 30 |
703996 |
NUT, HEX, 3/8-16 This part replaces 724840. Price: $4.41 |
| 31 |
333721MA |
BELT, Drive This part replaces 723627. Price: $17.59 |
| 32 |
001X81MA |
BOLT, Hex, 5/16 - 18 This part replaces 720025. Price: $3.06 |
| 33 |
47792MA |
SCREW 3/8-16 x 1.00 This part replaces 724071. Price: $3.39 |
| 34 |
414106MA |
WASHER, FLAT No. 8 This part replaces 723979. Price: $2.89 |
| 35 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 725326. Price: $3.51 |
