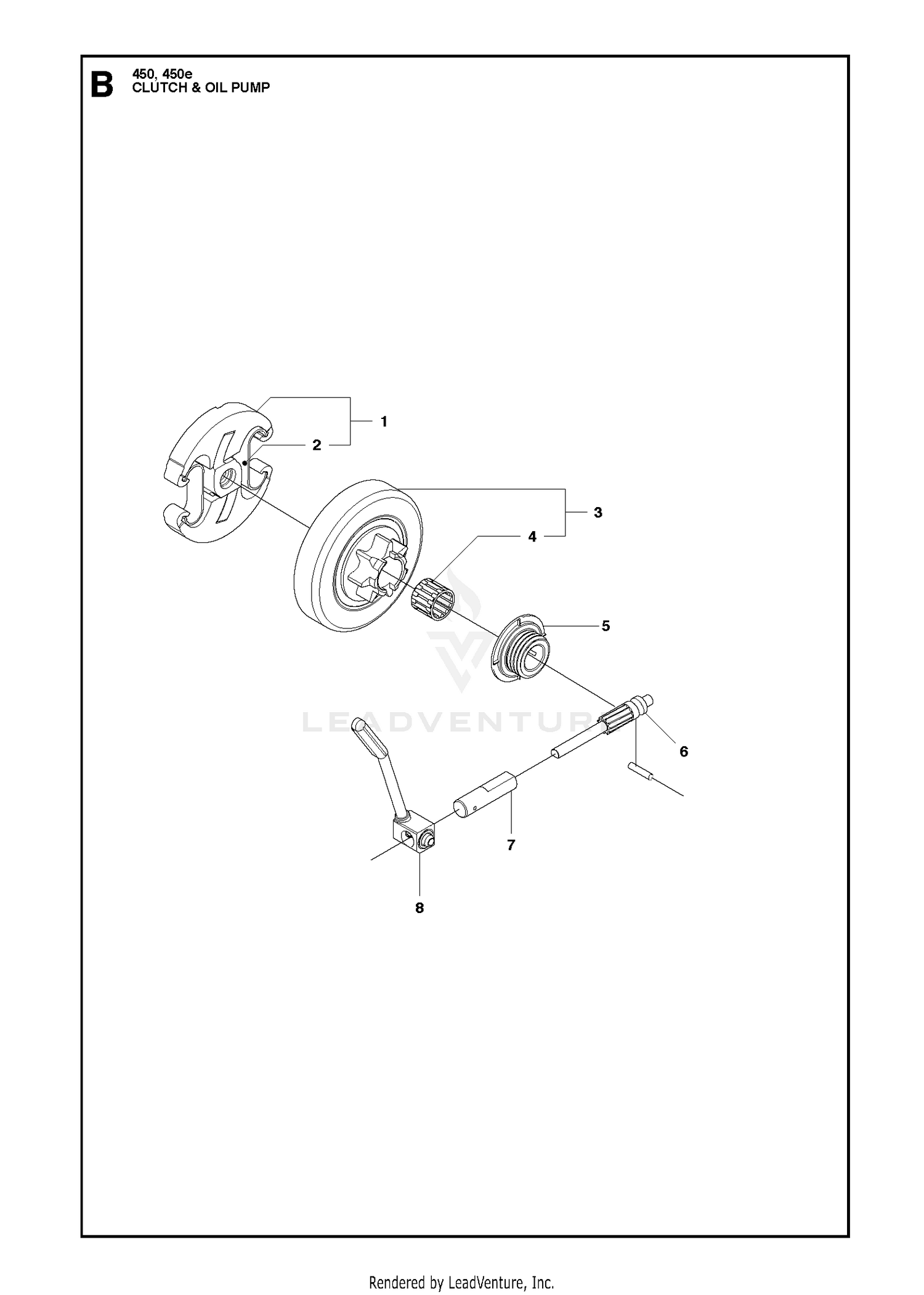

| Ref | Part Number | Description |
|---|
| 1 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 1 |
537110503 |
CLUTCH Price: $39.99 |
| 2 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 3 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 3 |
578097901 |
CLUTCH DRUM Price: $32.99 |
| 4 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 5 |
503931801 |
GEAR WHEEL OIL PUMP Price: $8.99 |
| 5 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 6 |
540057901 |
PISTON PUMP Price: $6.99 |
| 6 |
82-9850-03 |
AXLE-REAR This part replaces 82-9850. Price: $1,614.33 |
| 7 |
537154801 |
PUMP CYLINDER Price: $9.99 |
| 7 |
98-4434 |
LH WHEEL SPINDLE ASM This part replaces 69-7370. Price: $631.93 |
| 8 |
69-2990 |
STUD-WHEEL Price: $4.85 |
| 9 |
117-8969 |
HUB ASM This part replaces 69-2960. Price: $336.24 |
| 10 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 11 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 12 |
69-9880 |
TIRE (23X10.5-12) 6-PLY Price: $189.93 |
| 13 |
23-7270 |
NUT-LUG Price: $10.37 |
| 14 |
217-116 |
WHEEL Price: $258.19 |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 16 |
69-2970 |
CAP-HUB Price: $20.74 |
| 17 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 18 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 19 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 20 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 21 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 22 |
69-2980 |
SEAL Price: $33.94 |
| 23 |
110-6141-03 |
RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18 |
| 24 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 25 |
2412-7 |
CLAMP ASM Price: $23.32 |
| 27 |
110-9719-03 |
TIE ROD ASM This part replaces 82-9260. Price: $380.21 |
| 29 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 30 |
32136-2 |
NUT-SHH Price: $3.55 |
| 31 |
32136-13 |
NUT-SHH Price: $2.85 |
| 32 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 33 |
48-6640 |
BEARING Price: $10.04 |
| 34 |
48-6660 |
WASHER Price: $5.22 |
| 35 |
82-9840 |
DISCONTINUED Price: Call Us |
| 36 |
115-8014 |
CYLINDER-HYDRAULIC This part replaces 77-4800. Price: $1,015.97 |
| 37 |
82-9841 |
DISCONTINUED Price: Call Us |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 40 |
237-78 |
O-RING Price: $3.85 |
| 41 |
60-3670 |
PIN Price: $12.56 |
| 42 |
82-9210 |
SHAFT-PIVOT Price: $187.73 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
106-6895-03 |
BALL JOINT ASM This part replaces 69-9810. Price: $258.08 |
| 47 |
98-4433 |
RH WHEEL SPINDLE ASM This part replaces 69-7360. Price: $514.93 |
