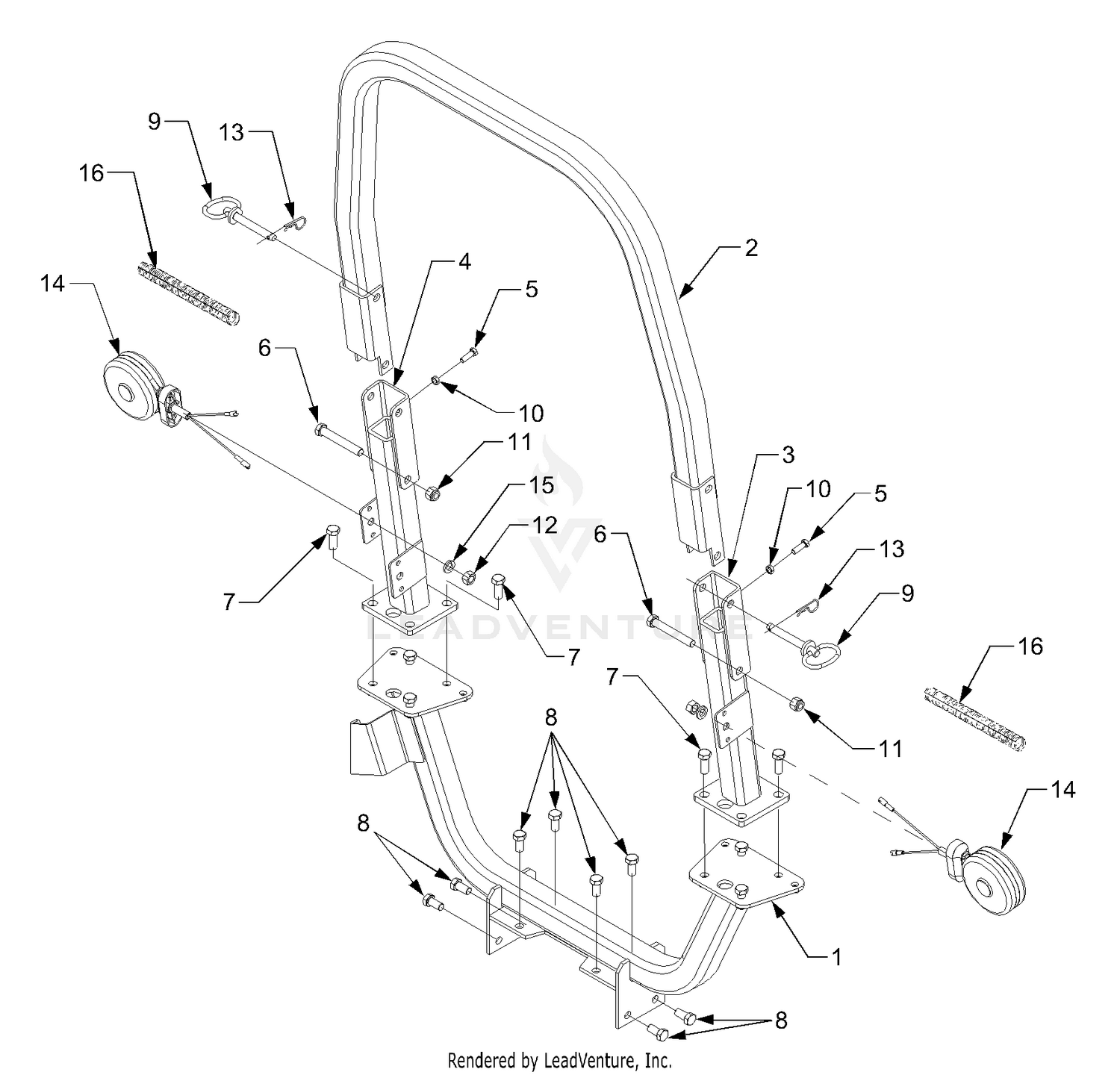

| Ref | Part Number | Description |
|---|
| 1 |
603-04283 |
UPPER ROPS ASSEMBLY Not Available This part replaces 603-0716. Price: |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
603-0717 |
ROPS ASSEMBLY-UPPER FOLDABLE Not Available Price: |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
603-0858 |
ROPS MOUNTING ASSEMBLY (RH) Not Available Price: |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
603-0861 |
MOUNTING ASSEMBLY (LH) ROPS Not Available Price: |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
710-0376 |
Screw, Hex Cap, 5/16-18 x 1.0 GR5 Price: $3.66 |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
710-0515 |
Screw, Hex Cap, 1/2-20 x 3.5 GR5 Price: $10.13 |
| 6 |
95-7525 |
GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 7 |
710-3032 |
Screw, Hex Cap, 1/2-13 x 1.25 GR5 Price: $5.66 |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
710-3131 |
Screw, Hex Cap, 1/2-13 x 1.0 GR5 Price: $4.69 |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING Price: $18.43 |
| 9 |
711-1610 |
CLEVIS PIN .50 x 3.5 Not Available Price: |
| 10 |
712-3046 |
Nut, Hex Jam, 5/16-18 Price: $6.06 |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
912-3058 |
Hex Lock Nut, 1/2-20 This part replaces 712-3058. Price: $4.92 |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 12 |
912-3066 |
Hex Nut, 1/2-20 This part replaces 712-3066. Price: $6.01 |
| 13 |
914-3003 |
INTERNAL COTTER PIN Not Available This part replaces 714-3003. Price: |
| 14 |
725-3280 |
HAZARD LAMP ASSEMBLY Not Available Price: |
| 15 |
736-0921 |
Washer, Lock, 1/2 Price: $3.90 |
