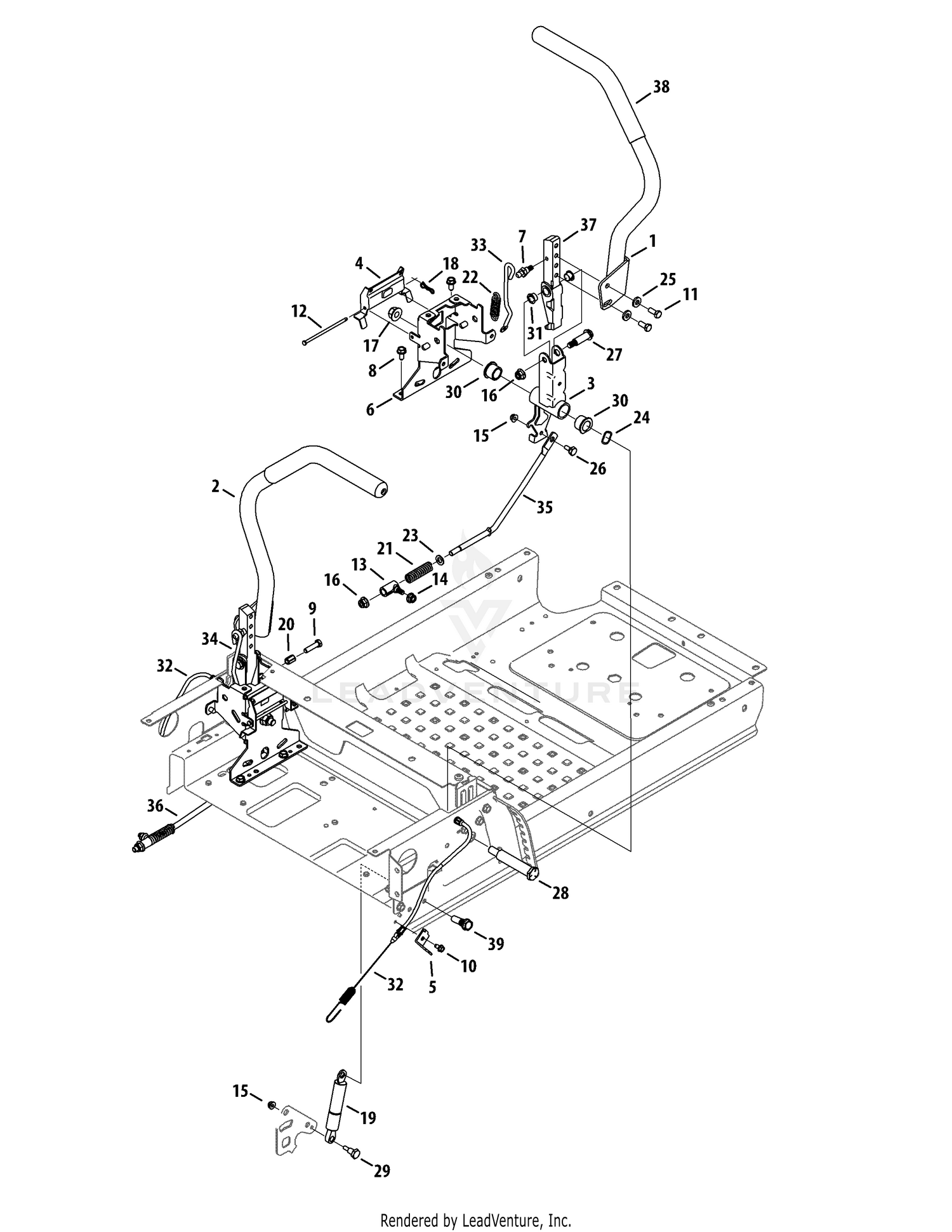

| Ref | Part Number | Description |
|---|
| 1 |
603-05342A-4033 |
LAPBAR HANDLE (RH) (FLINT MICA) This part replaces 603-05124A-4033. Price: $66.61 |
| 2 |
603-05126A-4033 |
LH Labpar Lever Assembly Price: $66.61 |
| 3 |
603-05033A-0637 |
LAPBAR PIVOT HUB (POWDER BLACK) Price: $37.59 |
| 4 |
703-09069-0637 |
Brake Lever Actuator Price: $5.62 |
| 5 |
703-09220-0637 |
Brake Cable Bracket Price: $3.70 |
| 6 |
703-09325C-0637 |
LAPBAR PIVOT SUPPORT (POWDER BLACK) This part replaces 703-09325A-0637. Price: $28.84 |
| 7 |
710-04471 |
Screw, Shoulder Ball, 5/16-18 x .48 Price: $24.34 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 10 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 11 |
710-1880 |
Hex Head Screw, 5/16-18 x .75 Patch Price: $4.02 |
| 12 |
711-06068 |
Pin, .188 x 4.1 Price: $6.12 |
| 13 |
711-06094A |
Ferrule, 3/8 ID x .420 Shldr Price: $13.62 |
| 14 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 15 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 16 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 17 |
712-04150 |
Flange Lock Nut, 1/2-13 Price: $3.74 |
| 18 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 19 |
727-04400A |
Dampener, .87 OD x 7.06 Lg Price: $55.87 |
| 20 |
728-05012 |
Nut, 5/16-18 Not Available Price: |
| 21 |
732-05075 |
Compression Spring, .45 x 3.215 Price: $3.70 |
| 22 |
732-1162 |
Extension Spring, .56 x 2.31 x .105 Price: $7.61 |
| 23 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 24 |
736-0621 |
Washer, Wave, .785 x 1.0 x .012 Price: $16.02 |
| 25 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 26 |
938-0255 |
Shoulder Screw, .375 Dia. x .181 Price: $4.53 |
| 27 |
738-05025 |
SHOULDER BOLT .498 DIA x 1.296 LG Price: $6.57 |
| 28 |
738-05033 |
SHOULDER BOLT .750 DIA x 3.25 LG Price: $14.07 |
| 29 |
738-05034 |
SHOULDER BOLT .395 DIA x .56 LG Price: $6.57 |
| 30 |
741-04050 |
Bearing, .75 x 1.00 x .73 Price: $3.75 |
| 31 |
741-0748 |
Flange Bearing, .500 x .627 Price: $10.38 |
| 32 |
946-05008 |
Park Brake Cable Price: $31.48 |
| 33 |
747-06295 |
Lapbar Detent Rod, RH Price: $10.31 |
| 34 |
747-06294 |
Lapbar Detent Rod, LH Price: $10.31 |
| 35 |
747-06149A |
Hydro Control Rod, RH Price: $13.94 |
| 36 |
747-06160A |
Hydro Control Rod, LH Price: $13.94 |
| 37 |
941-00022A |
LOWER LAP BAR ARM ASSEMBLY This part replaces 941-00022. Price: $73.75 |
| 38 |
720-05008 |
Lapbar Grip Price: $22.55 |
