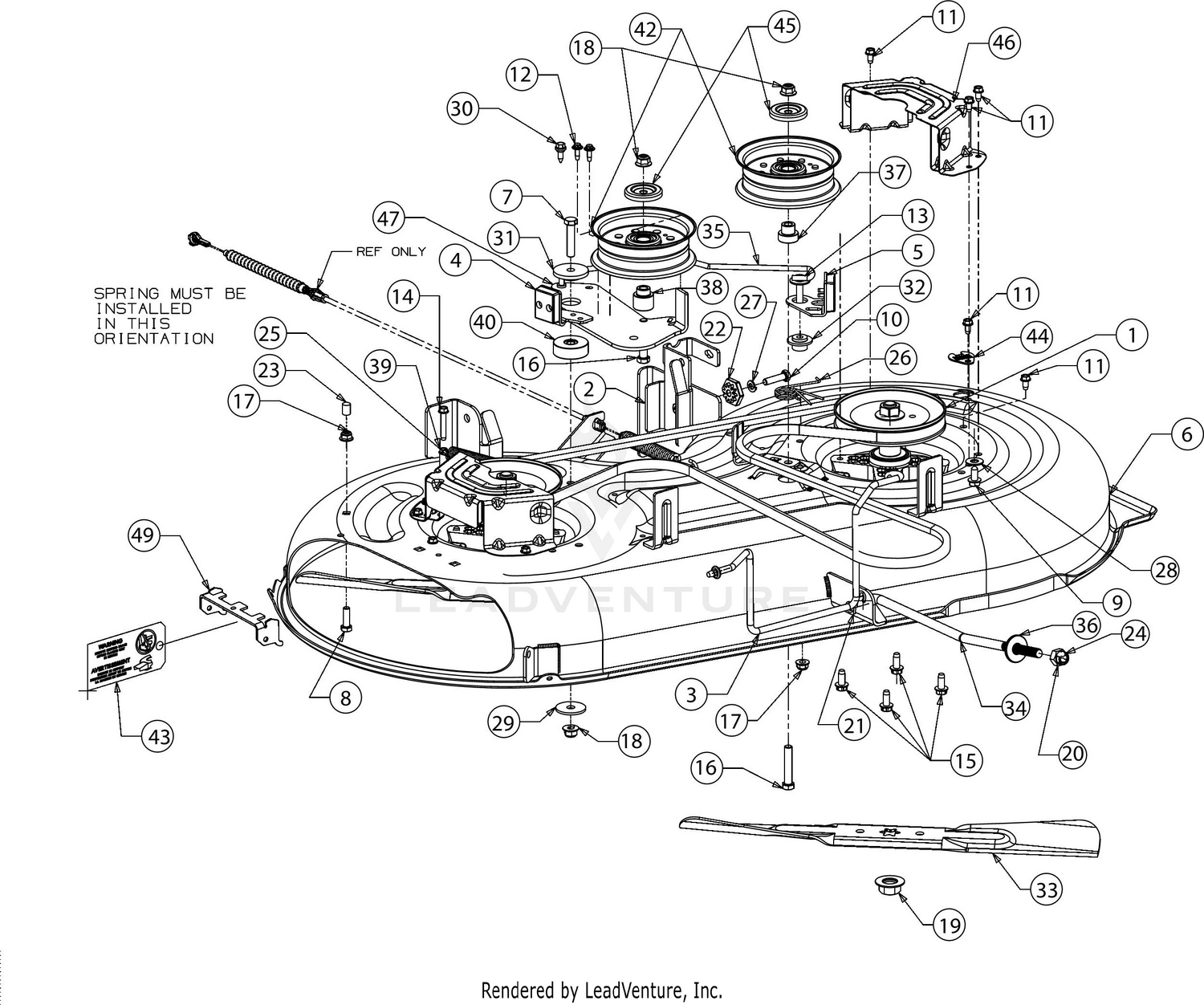

| Ref | Part Number | Description |
|---|
| 1 |
712-0417A |
HEX NUT Price: $6.50 |
| 1 |
719-07293-M |
DECK SPINDLE HOUSING (W/O FTG) This part replaces 619-04183B. Price: $39.28 |
| 1 |
738-1186A |
BLADE SPINDLE SHAFT STAR 6.11 LG Price: $45.83 |
| 1 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 1 |
750-04936 |
SPACER- .792 X 1.060 X 1.860 Price: $5.94 |
| 1 |
756-05031 |
DECK PULLEY 5.4 DIA" Price: $20.46 |
| 1 |
918-06991 |
SPINDLE ASSEMBLY Price: $90.98 |
| 2 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0638. Price: |
| 3 |
747-04857 |
BELT KEEPER ROD Price: $19.55 |
| 4 |
761-05007 |
DECK BRAKE PAD Price: $9.20 |
| 4 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 983-05182. Price: $87.42 |
| 5 |
753-09904A |
DECK BRAKE ASSEMBLY KIT This part replaces 983-05183. Price: $93.12 |
| 5 |
761-05007 |
DECK BRAKE PAD Price: $9.20 |
| 7 |
710-0347 |
HEX SCREW 3/8-16 X 1.75 GR5 Price: $4.39 |
| 8 |
710-0376 |
SCREW 5/16-18 X 1.0 GR5 Price: $3.66 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-0528 |
SCREW 5/16-18 X 1.25 GR5 Price: $3.90 |
| 11 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 12 |
710-06133 |
SCREW M6-1 X .625 Price: $3.08 |
| 13 |
710-06213 |
SCREW 5/16-18X1.25 GR 5 Price: $5.52 |
| 14 |
710-0778 |
SCREW 1/4-20 X 1.50",1" Price: $3.90 |
| 15 |
710-1260A |
SCREW 5/16-18 X .750 Price: $3.34 |
| 16 |
710-3096 |
SCREW 3/8-16 X 2.0 GR 8 Price: $7.03 |
| 17 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 18 |
712-04065 |
NUT Price: $3.68 |
| 19 |
712-0417A |
HEX NUT Price: $6.50 |
| 20 |
712-04243 |
NUT Price: $3.52 |
| 21 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 22 |
917-04074 |
DECK ADJUSTMENT Price: $11.45 |
| 23 |
720-05010 |
VINYL CAP Price: $3.70 |
| 24 |
N/A |
SEALANT |
| 25 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 26 |
732-05151A |
TORSION SPRING Price: $3.70 |
| 27 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 28 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 29 |
736-3039 |
Flat Washer, .407 x .812 x .135 This part replaces 936-3039. Price: $4.42 |
| 30 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 31 |
738-05082 |
SHOULDER SPACER Price: $7.32 |
| 32 |
738-05088 |
SHOULDER SPACER .750 X .145 Price: $3.86 |
| 34 |
747-05141B |
DECK FRONT LIFT ROD Price: $19.44 |
| 35 |
747-06538 |
DECK BRAKE ROD Price: $12.90 |
| 36 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 37 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 38 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 39 |
750-0566A |
SPACER Price: $9.17 |
| 40 |
750-06184 |
SPACER .385ID X 1.75OD X .585THK Price: $10.02 |
| 41 |
954-04060C |
V-BELT A X 96.5 Price: $46.63 |
| 42 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 43 |
N/A |
NOT SERVICEABLE PART |
| 44 |
783-06464 |
DECK WASH PLUG Price: $3.70 |
| 45 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 47 |
783-08654C |
DECK IDLER BRACKET This part replaces 783-08654B. Price: $62.71 |
| 48 |
783-08690A-0637 |
BELT KEEPER (POWDER BLACK) This part replaces 783-08690-0637. Price: $11.37 |
