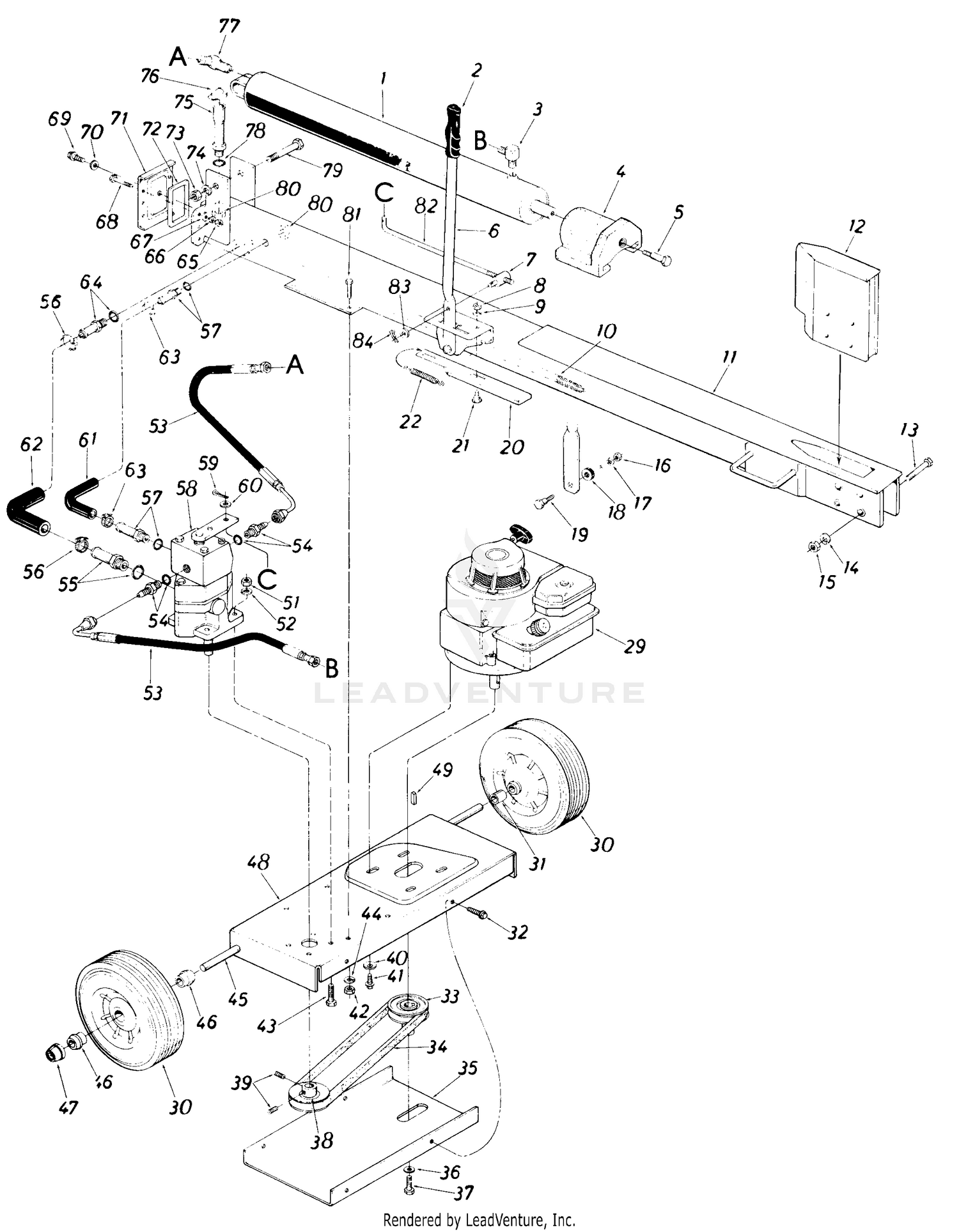

| Ref | Part Number | Description |
|---|
| 1 |
717-0816 |
CYLINDER-HYDRO Not Available Price: |
| 2 |
720-0157 |
LIFT HANDLE GRIP Not Available Price: |
| 3 |
737-0196 |
ADAPTER-90 DEGREE Not Available Price: |
| 4 |
719-0270 |
Pusher Plate Price: Call Us |
| 5 |
738-0601 |
SHOULDER SCREW .62X.475 Not Available Price: |
| 6 |
749-0663 |
HANDLE Not Available Price: |
| 7 |
711-0628 |
ADJUSTMENT FERRULE Not Available Price: |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 9 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 10 |
781-0021 |
TUBE ASSEMBLY-STRAINER Not Available Price: |
| 11 |
781-0069 |
Oil Tank Ass'y. Comp Price: Call Us |
| 12 |
781-0038 |
WEDGE ASSEMBLY Not Available Price: |
| 13 |
710-0298 |
HEX SCREW 5/8-18 x 3.50 GR5 Not Available Price: |
| 14 |
736-0158 |
L.-Wash. 5/8" I.D. Price: $3.90 |
| 15 |
712-0337 |
HEX NUT 5/8-18 Not Available Price: |
| 16 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 17 |
736-0169 |
L.-Wash. 3/8" I.D.* Price: $3.33 |
| 18 |
735-0144 |
RUBBER WASHER Not Available Price: |
| 19 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 20 |
781-0024 |
Engagement Brkt. Price: Call Us |
| 21 |
738-0140 |
Shoulder Bolt .437" Dia. x.180" Lg. Price: $4.93 |
| 22 |
732-0352 |
EXTENSION SPRING Not Available Price: |
| 29 |
N/A |
Engine-B&S |
| 30 |
734-0736 |
WHEEL ASS'Y. 10.0 x 2.75 Not Available Price: |
| 31 |
950-0118 |
SLEEVE Not Available This part replaces 750-0118. Price: |
| 32 |
710-0599 |
Hex Wash. Hd. Self Tap. Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 33 |
756-0425 |
PULLEY Not Available Price: |
| 34 |
754-0278 |
V-BELT (4L) 1/2" V x 30" LG. Not Available Price: |
| 35 |
781-0008 |
Belt Cover Price: Call Us |
| 36 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 37 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 38 |
756-0426 |
PULLEY Not Available Price: |
| 39 |
710-0938 |
SCREW-SET 1/4-28 x .25 Not Available Price: |
| 40 |
736-0105 |
Bell.-Wash..40" I.D. x .88"O.D. Price: $3.96 |
| 41 |
710-0649 |
HEX SCREW WASH HD 3/8-24X7/8 Not Available Price: |
| 42 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 43 |
710-0376 |
Hex Bolt 5/16-18 x 1.00" Lg.* Price: $3.66 |
| 44 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 45 |
747-0458 |
AXLE SHAFT Not Available Price: |
| 46 |
741-0116 |
FLANGE BEARING Not Available Price: |
| 47 |
726-0214 |
Push Cap 5/8" Dia. Rod Price: $9.11 |
| 48 |
781-0002 |
FRAME - ENGINE Not Available Price: |
| 49 |
714-0133 |
Sq. Key 3/16" x 3/16" x 1.50" Lg.* Price: $4.20 |
| 51 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 52 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 53 |
727-0302 |
High Pressure Hose Price: Call Us |
| 54 |
737-0183 |
Adapter-or Boss to MJIC 9/16-18 to 7/16-20 Price: Call Us |
| 55 |
737-0182 |
Adapter 3/4" Tubing to 3/4-16 M-Boss Price: Call Us |
| 56 |
726-0132 |
Hose Clamp 5/8" I.D. Price: $13.50 |
| 57 |
737-0184 |
Adapter 1/2" Tube 9/16-18 or M-Boss Price: Call Us |
| 58 |
717-0803 |
Valve Ass'y. Price: Call Us |
| 59 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. * Price: $3.93 |
| 60 |
736-0264 |
Fl.-Wash. 344" I.D. x .62" O.D. x .063 Price: $5.99 |
| 61 |
727-0301 |
HOSE-RETURN-90 DEG Not Available Price: |
| 62 |
727-0300 |
HOSE-SUCTION-90 DEG Not Available Price: |
| 63 |
726-0146 |
HOSE CLAMP 1/4 ID Not Available Price: |
| 64 |
737-0191 |
ADAPTER Not Available Price: |
| 65 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 66 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 67 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 68 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 69 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 70 |
721-0205 |
GASKET Not Available Price: |
| 71 |
781-0023 |
PLATE-END Not Available Price: |
| 72 |
721-0203 |
GASKET Not Available Price: |
| 73 |
712-0301 |
Hex Jam Nut 3/4-10 Thd. This part replaces 712-0203. Price: $7.26 |
| 74 |
936-0364 |
WASHER Not Available This part replaces 736-0364. Price: |
| 75 |
781-0036 |
Filler Tube Ass'y. Price: Call Us |
| 76 |
745-0174 |
CAP ASSEMBLY-GAS Not Available Price: |
| 77 |
737-0197 |
ADAPTER-45 DEGREE Not Available Price: |
| 78 |
721-0204 |
O-RING Not Available Price: |
| 79 |
710-Q920 |
Hex Bolt 3/4" x 4.0" Lg. Price: Call Us |
| 80 |
712-0338 |
HEX NUT 1 1/16-12 Not Available Price: |
| 81 |
710-0888 |
Hex Bolt 5/16-24 x 1" Lg. This part replaces 710-0117. Price: $3.86 |
| 82 |
747-0493 |
Engagement Rod 16.75" Lg. Price: Call Us |
| 83 |
736-0264 |
Fl.-Wash. .344" I.D. x.62" O.D. x .063 Price: $5.99 |
