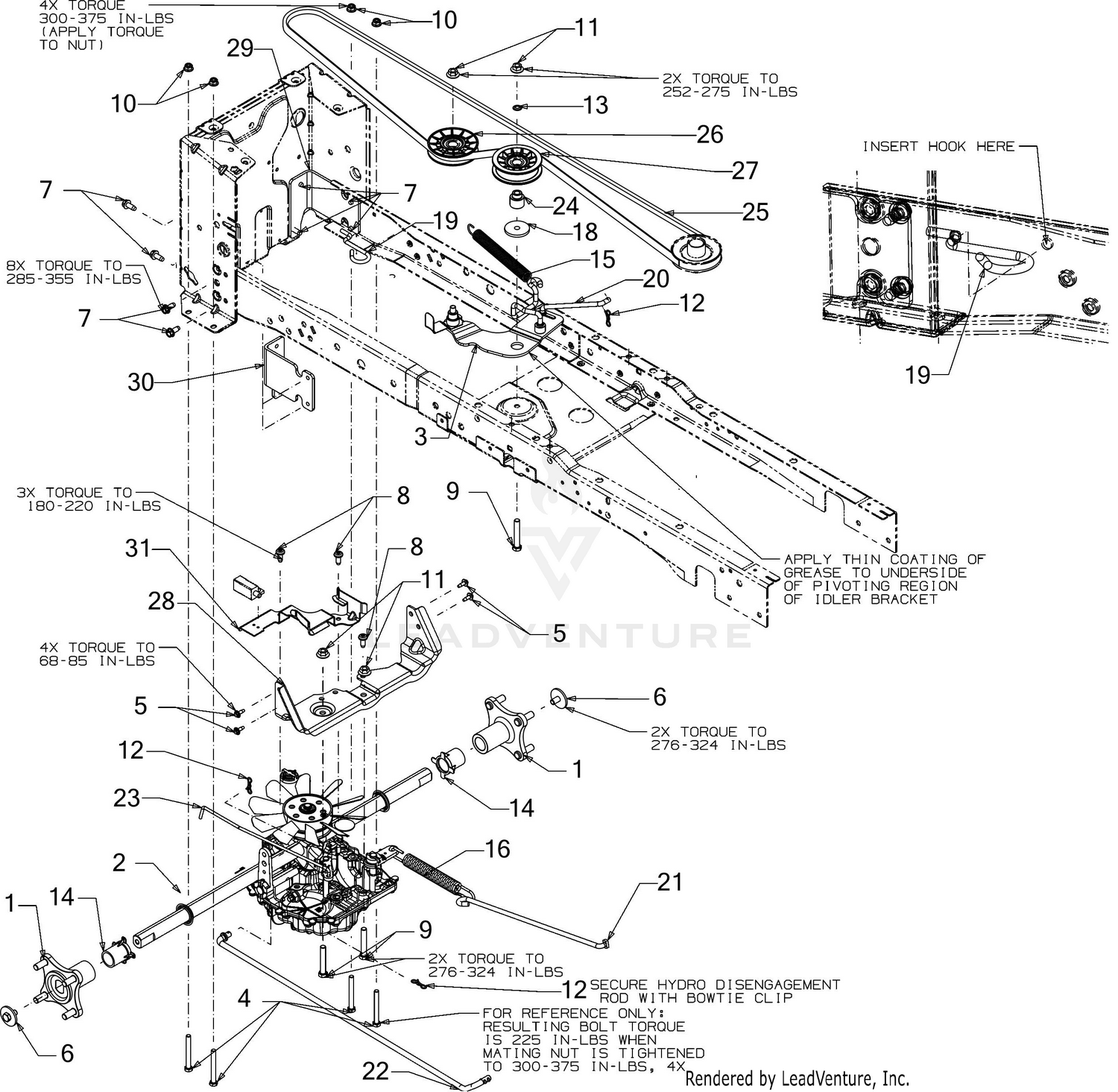

| Ref | Part Number | Description |
|---|
| 1 |
918-04317 |
WHEEL HUB ASSEMBLY Price: $102.24 |
| 2 |
918-07233A |
TRANSMISSION ASSEMBLY This part replaces 918-07233. Price: $1,388.18 |
| 3 |
983-05090A |
IDLER BRACKET ASSEMBLY Price: $64.53 |
| 4 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 5 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 6 |
710-06168 |
SCREW 3/8-16 x .75 GR5.1 Price: $5.52 |
| 7 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 8 |
710-1611B |
SCREW 5/16-18 x .750 Price: $5.94 |
| 9 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 10 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 11 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
726-0201 |
PUSH NUT Price: $6.01 |
| 14 |
731-10547A |
AXLE SLEEVE 1.02 ID x 1.60 LG Price: $3.66 |
| 15 |
732-05108A |
EXTENSION SPRING .790 DIA x 8.41 Price: $11.41 |
| 16 |
732-05146 |
EXTENSION SPRING 0.90 DIA x 8.14 Price: $11.07 |
| 18 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 19 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 20 |
747-06193B |
IDLER BRACKET LINK ROD This part replaces 747-06193A. Price: $10.13 |
| 21 |
747-06251C |
BRAKE ROD This part replaces 747-06251A. Price: $11.23 |
| 22 |
747-06281B |
HYDRO CONTROL ROD This part replaces 747-06281A. Price: $16.02 |
| 23 |
747-06447 |
HYDRO DISENGAGEMENT ROD Price: $7.35 |
| 24 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 25 |
954-05027B |
V-BELT A SEC x 90.90 This part replaces 954-05027A. Price: $59.35 |
| 26 |
756-05024 |
V-IDLER PULLEY 3.56 OD Price: $22.11 |
| 27 |
756-05032 |
FLAT IDLER PULLEY 3.00 OD Price: $23.03 |
| 28 |
783-08463A-0637 |
TRANSMISSION MOUNTING BRACKET (POWDER BLACK) This part replaces 783-08463-0637. Price: $30.40 |
| 29 |
783-08873-0637 |
FRAME SUPPORT BRACKET (LH) Not Available Price: |
| 30 |
783-08873-0637 |
FRAME SUPPORT BRACKET (LH) Not Available Price: |
| 30 |
783-08874-0637 |
FRAME SUPPORT BRACKET (RH) Not Available Price: |
