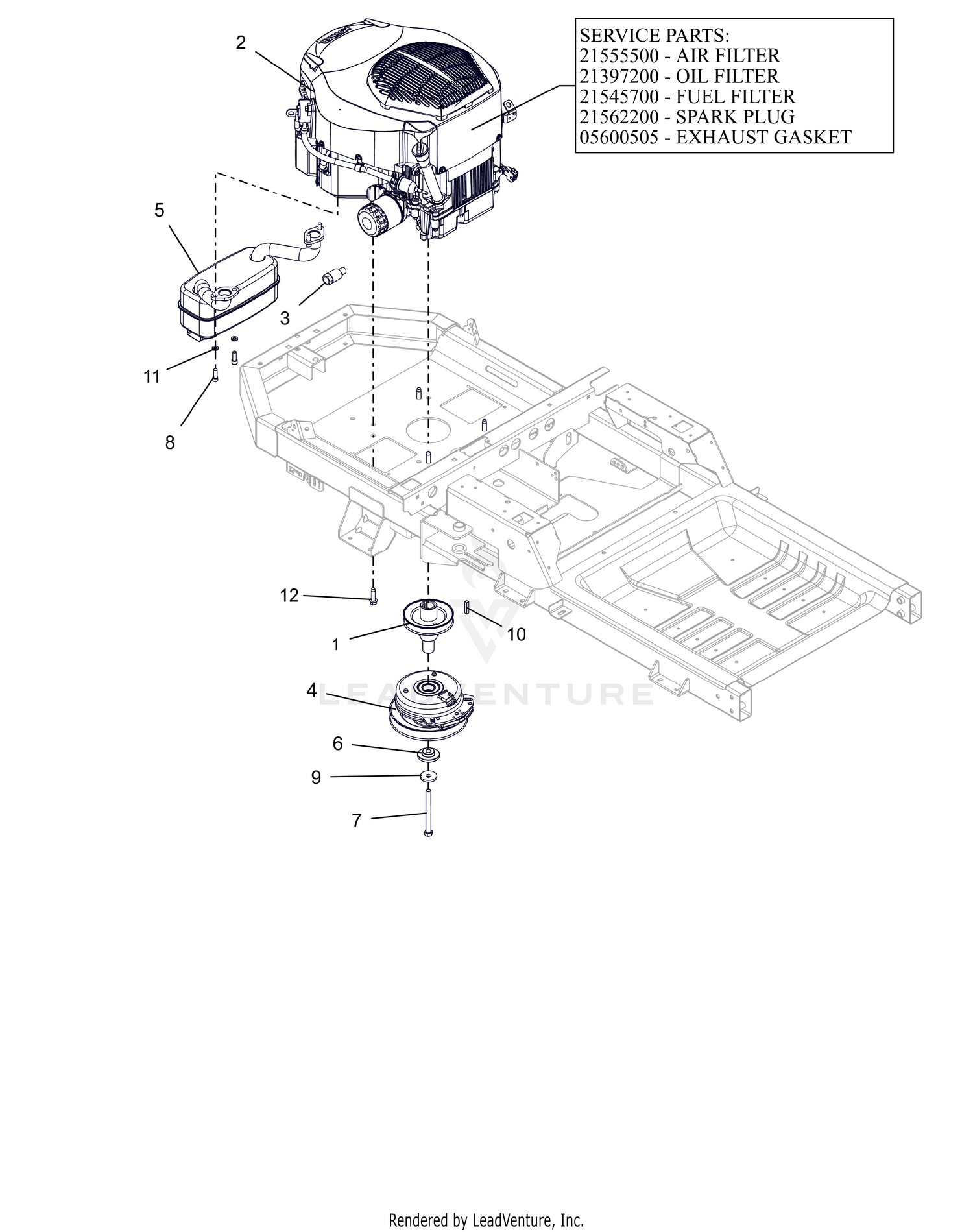

| Ref | Part Number | Description |
|---|
| 1 |
07345100 |
WLDMT, DRIVE SHEAVE-X Price: $59.45 |
| 2 |
08201201 |
ENGINE, KOHLER 24HP TWIN Price: $555.95 |
| 3 |
03943600 |
DRAIN, OIL Price: $13.95 |
| 4 |
04678300 |
CLUTCH,105FTLB MONOPOLE 6.83" Price: $203.95 |
| 5 |
05113700 |
MUFFLER, KOHLER This part replaces 05088400. Price: $76.45 |
| 6 |
05501206 |
BSHG-FLG .469X1.06X.574X2.0 Price: $17.45 |
| 7 |
05901820 |
BLT, HEX .44-20X4.50 G8 ZCC NT Price: $5.45 |
| 8 |
05901839 |
SCR-CAP .31-18X.88 S/HD G8 ZCC Price: $2.45 |
| 9 |
06400936 |
WASHER, 7/16" SPRING DISK Price: $10.45 |
| 10 |
06603400 |
KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45 |
| 11 |
06300119 |
WSHR,LK-REG .312X.078 ZCC Price: $0.95 |
