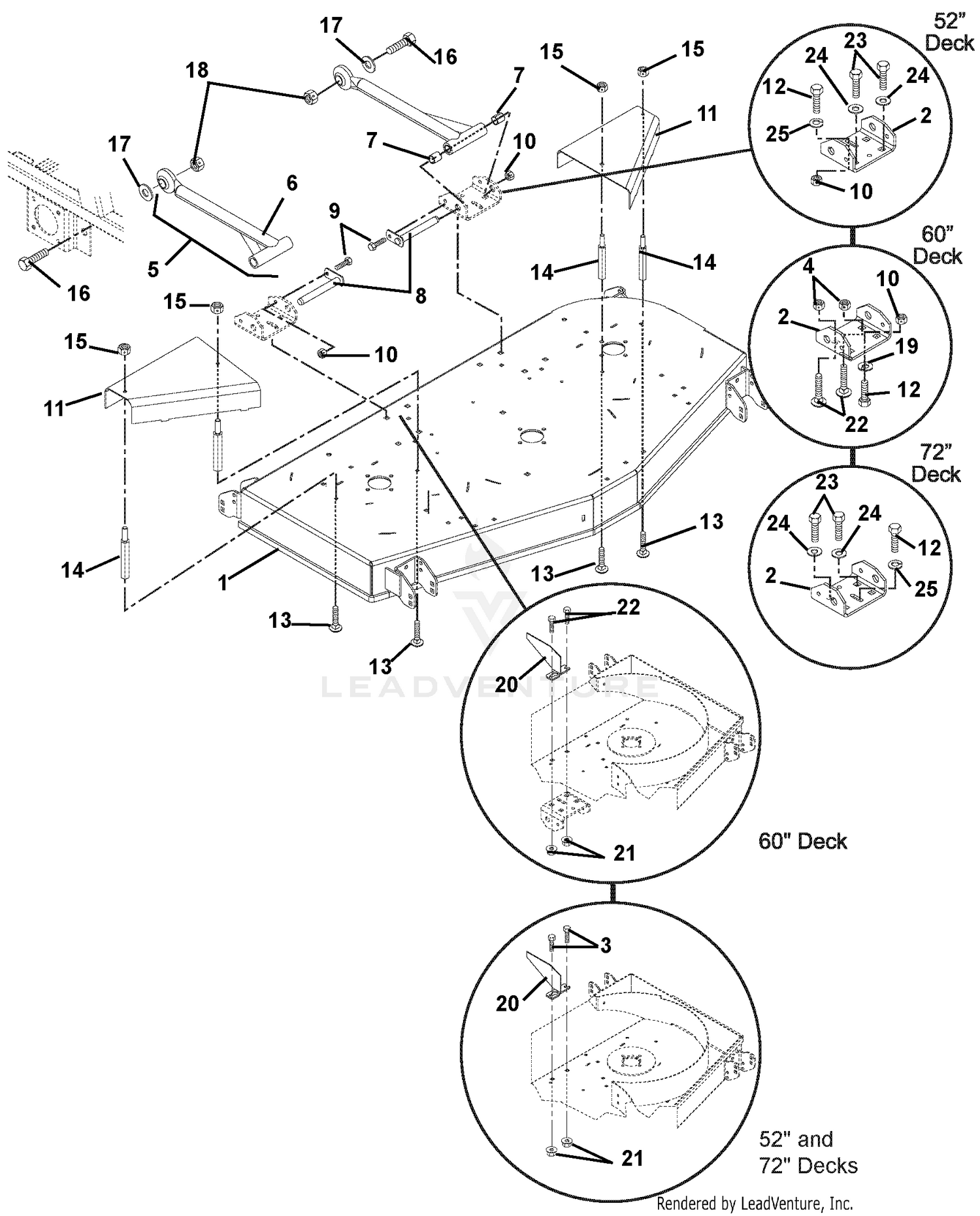

| Ref | Part Number | Description |
|---|
| 1 |
04950753 |
WMT-52" MOWER DECK-REAR DISCH Price: $941.45 |
| 6 |
09247951 |
WMT, MOWER MTG ARM - BLACK Price: $201.95 |
| 7 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 8 |
09238900 |
WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 9 |
05932600 |
BLT-HEX .38-16X.875 GR5 YWZC Price: $2.45 |
| 10 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 13 |
06200425 |
BTL,RHSN .313-18 X 0.75 G5 ZCC LT This part replaces 06200002. Price: $3.95 |
| 14 |
00271200 |
STANDOFF, 2.75 X 5/16-18 Price: $31.45 |
| 15 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 16 |
05969500 |
BLT-HEX .875-9X2.75 GR5 YWZC Price: $7.45 |
| 17 |
06401207 |
WSHR- FLT .890X1.500X.119 ZCC This part replaces 06444700. Price: $3.95 |
| 18 |
06539700 |
NUT-LK-CTR .875-9 YWZC Price: $5.45 |
| 20 |
00385751 |
WMT-REAR DEFLECTOR BAFFLE- Price: $4.95 |
| 21 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 00373453 |
WMT-72" |
MOWER DECK-REAR DISCH Price: Call Us 00373453 |
| 09293153 |
WELDMENT-60" |
REAR DIS PAINTED Price: $1,019.95 09293153 |
