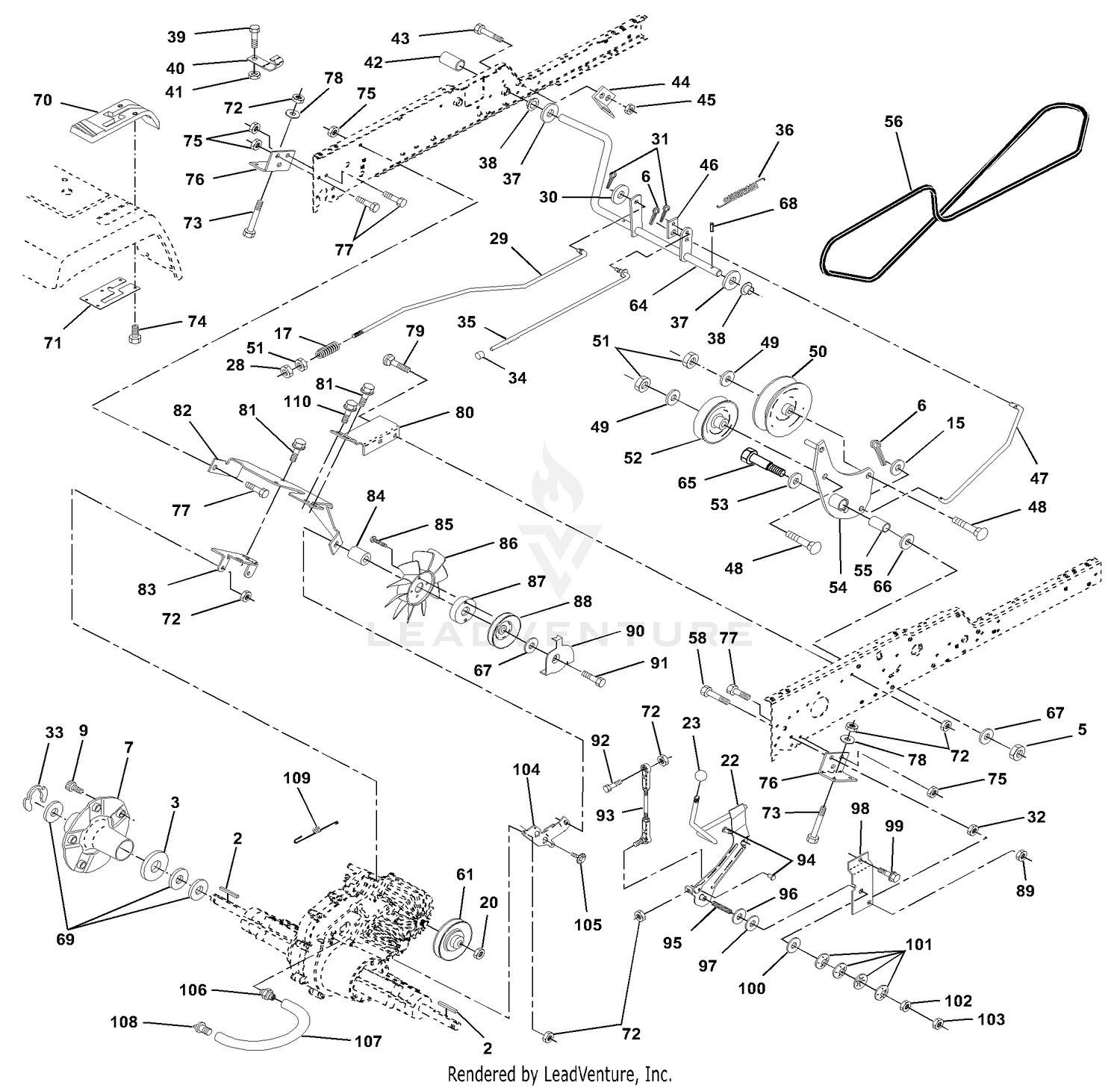

Ground Drive

Ground Drive

Parts (115)

RefPart NumberDescription
1 98-7708 NUT Price: $7.76
2 532007070 KEY 1/4 X 2.5 Price: $4.99
2 98-9453 PULLEY-DYNAMO Price: $138.04
3 532007563 WASHER T Price: $6.99
3 98-7709 COLLAR Price: $8.79
4 99-7714 Frame-Drive End Price: Call Us
5 596322601 Nuts This part replaces 873680600. Price: $2.99
5 98-7717 BOLT-THROUGH Price: $9.75
6 596029501 Pins This part replaces 876020412. Price: $2.99
6 98-7716 SCREW-HEAD, ROUND Price: $0.91
7 107-0136 ROTOR ASM This part replaces 98-7710. Price: $268.62
7 532140507 HUB ASMBLY Price: $149.99
8 98-7712 BEARING-BALL Price: $31.09
9 596218701 Bolts This part replaces 532140080. Price: $2.99
9 98-7711 COVER-BEARING Price: $7.32
10 98-7713 WASHER-THRUST Price: $4.49
11 98-7715 PLATE-RETAINER Price: $9.38
12 98-7718 BEARING-BALL Price: $34.82
13 98-7719 FRAME-END Price: $88.65
14 98-7730 NUT Price: $1.31
15 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
15 98-7731 BOLT Price: $3.94
16 98-7721 RECTIFIER ASM Price: $486.45
17 532140921 SPRING.ROD.BRAKE Price: $3.99
17 98-7722 BUSHING-INSULATION Price: $28.44
18 98-7732 NUT Price: $1.45
19 110-3799 REGULATOR ASM This part replaces 98-7733. Price: $426.99
20 873940800 NUT.HEX.1/2-20 Price: $3.99
20 98-7726 SCREW-HEAD, ROUND Price: $0.42
21 98-7728 SCREW-HEAD, ROUND Price: $0.70
22 532140498 SHAFT ARM ASMBLY Price: $27.44
22 98-7729 BOLT Price: $2.35
23 532140845 KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99
23 98-7720 COVER-END Price: $39.58
24 98-7723 HOLDER-BRUSH Price: $52.72
25 98-7725 SPRING-BRUSH Price: $4.32
26 98-7724 BRUSH Price: $12.41
28 873220600 NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99
29 532140494 BRAKE ROD Price: $10.99
30 596140201 Washers This part replaces 819131614. Price: $2.99
31 596917601 Pins This part replaces 876020312. Price: $1.99
32 873220700 NUT Price: $2.99
33 812000053 E RING HYT Price: $3.99
34 532071673 PLUNGER CAP Price: $4.99
35 532137648 PARKING BRAKE ROD Price: $9.99
36 532149412 SPRING DRIVE GROUND This part replaces 532138364. Price: $4.99
37 532121749 WASHER Price: $2.99
38 532110895 NYLINER T Price: $3.10
39 874321016 Screw Fin #10-24 x 1 Price: $2.99
40 532178575 ACTUATOR INTERLOCK SWITCH This part replaces 532005304. Price: $3.99
41 532069180 LOCKNUT This part replaces 873631000. Price: $2.99
42 532123533 COVER, PEDAL (1 2) Price: $6.99
43 874760412 BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99
44 532104601 BRKT SWITCH GT Price: $5.46
45 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99
46 532121358 RETAINER SPRING Price: $2.38
47 532138228 CLUTCH ROD Price: $6.99
48 596136201 Bolts This part replaces 872110614. Price: $3.99
49 819131413 Washer 13/32 x 7/8 x 13 Ga Price: $2.99
50 597025001 CLG This part replaces 532131494. Price: $22.99
51 596322601 Nuts This part replaces 873800600. Price: $2.99
52 532139123 PULLEY.IDLER.V. Price: $32.99
53 532000207 WASHER T Price: $4.99
54 532138390 CLUTCH ARM ASSY Price: $17.67
55 532105706 BEARING LT (2 2) Price: $5.99
56 532140218 V-BELT. Price: $49.99
58 874760724 BOLT.HEX.7/16-14.FINISHED Price: $3.99
61 532140488 PULLEY Price: $37.99
64 532154752 SHAFT CLUTCH/BRAKE PEDAL This part replaces 532137649. Price: $39.99
65 532067609 AXLE BOLT Price: $7.99
66 532140296 WASHER.BLADE Price: $5.99
67 596134901 GSPH This part replaces 819131312. Price: $2.99
68 532005142 ROLL PIN STD Price: $3.99
69 819332616 Washer Price: $3.55
70 532153762 KIT CONS HYD ADJ YT GT This part replaces 532139989. Price: $21.02
71 532140927 PLATE SHIFT CONSOLE Price: $4.99
72 596040501 Hardware This part replaces 873800500. Price: $2.99
73 874780548 Bolt Fin Hex 5/16-18 x 3 Price: $2.99
74 596134101 Screws This part replaces 532142432. Price: $2.99
75 873800700 Nut Lock Hex 7/16 Price: $3.99
76 532140481 BRACKET TRANSAXLE Price: $5.99
77 596238601 Bolts This part replaces 874760716. Price: $2.99
78 819111212 WASHER Price: $4.99
79 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99
80 532140484 TORQUE BRACKET RH Price: $2.99
81 534200501 BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99
82 532154561 KIT.BRAKET/HDW.MOUNT.HYDRO This part replaces 532140482. Price: $14.99
83 532140479 STRAP TORQUE MID Price: $5.99
84 532140490 SPACER Price: $5.99
85 817541020 Screw #10-24 x 1-1/4 Price: $3.99
86 532140462 FAN 7" HYDRO Price: $9.99
87 532140491 ADAPTOR.FAN.TRANSAXLE.VGTH Price: $7.99
88 532161592 PULLEY This part replaces 532140492. Price: $29.99
89 873680700 Nut, Crownlock 7/16-14 Price: $2.99
90 532140489 KEEPER.BELT Price: $6.99
91 596564005 BOLT This part replaces 817490644. Price: $8.99
92 595305701 Screws This part replaces 874760520. Price: $3.99
93 532140502 LINK ASM SHIFT Price: $52.99
94 532133835 FASTENER.XMAS.TREE Price: $3.99
95 823200528 Screw Set 5/16-18 x 1.75 Price: $3.99
96 532141103 WASHER Price: $3.99
97 532126874 BEARING Price: $3.73
98 532141004 SHIFT BRACKET Price: $3.99
99 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99
100 532126881 WASHER Price: $3.99
101 532059285 WASHER Price: $3.99
102 873930500 NUT.CENTERLOCK.5/16- This part replaces 873560500. Price: $3.99
103 596436301 Nuts This part replaces 873350500. Price: $2.99
104 532140480 BRACKET IDLER Price: $3.99
105 596437001 Screws This part replaces 817580408. Price: $2.99
106 532142576 VENT FITTING Price: $11.99
107 532142577 VENT HOSE Price: $7.99
108 532142578 VENT CAP 70109 Price: $37.99
109 532140929 RETURN SPRING Price: $14.99
110 532088652 HINGE SCREW Price: $3.99
