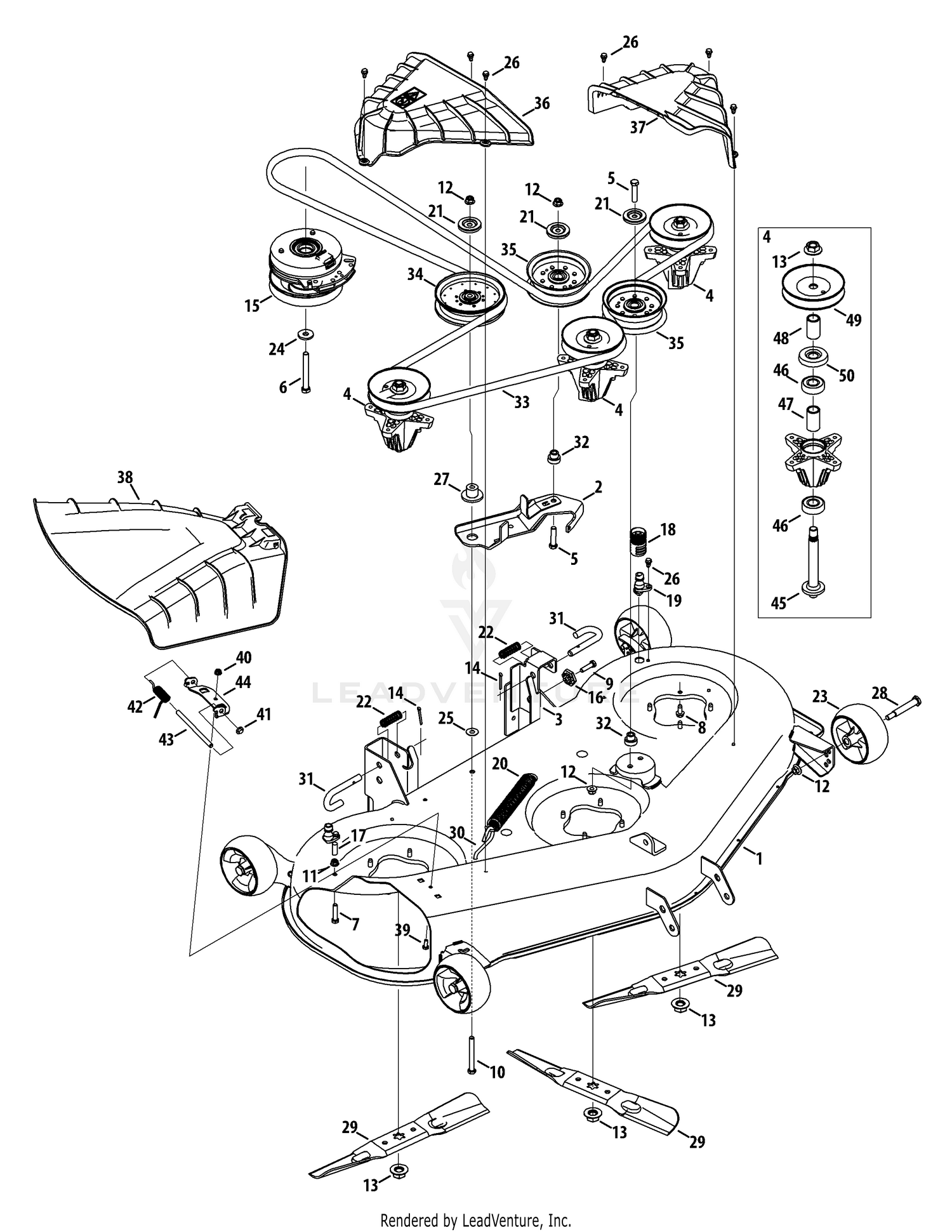

| Ref | Part Number | Description |
|---|
| 2 |
603-05350B-0637 |
DECK IDLER ASSEMBLY (POWDER BLACK) This part replaces 903-05211. Price: $60.88 |
| 3 |
603-05215A-0637 |
DECK HANGER BRACKET (LH) This part replaces 603-05215-0637. Price: $58.09 |
| 4 |
918-06980 |
Spindle Assembly Price: $117.87 |
| 5 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 6 |
710-04379A |
Hex Cap Screw, 7/16-20 x 3.50 Price: $5.35 |
| 7 |
710-0805A |
Hex Head Screw, 5/16-18 x 1.50 Price: $3.75 |
| 8 |
710-1260A |
Hex Washer Screw, 5/16-18 x .750 Price: $3.34 |
| 9 |
710-3120 |
Hex Flange Screw, 3/8-16 Price: $3.64 |
| 10 |
710-3130 |
Hex Bolt 3/8-16 x 3.25" Price: $8.85 |
| 11 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 12 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 13 |
712-0417A |
HEX NUT Price: $6.50 |
| 14 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 15 |
917-05209 |
Clutch, Electric PTO Price: $478.71 |
| 16 |
917-05298 |
Deck Adjustment Gear Price: $11.65 |
| 17 |
720-05075 |
Vinyl Cap, .29 x 1.00 Price: $3.66 |
| 18 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 19 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 20 |
732-04927 |
Extension Spring, 1.25 OD x 1.751 Price: $19.91 |
| 21 |
783-08389 |
Pulley Cap Price: $5.23 |
| 22 |
932-3127 |
Compression Spring, .66 x 1.9 Price: $3.82 |
| 23 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 24 |
736-0322 |
Flat Washer, .450 x 1.25 x .164 Price: $8.42 |
| 25 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 26 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 27 |
738-05081 |
Shoulder Spacer Price: $6.51 |
| 28 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 29 |
942-05052A |
Blade, Cut, 17.27" 2-In-1 Price: $26.85 |
| 30 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 31 |
747-06292 |
Deck Hanger Rod Price: $10.24 |
| 32 |
748-05029A |
Shoulder Spacer Price: $4.19 |
| 33 |
954-05078 |
V-Belt Price: $103.87 |
| 34 |
756-04511B |
Idler Pulley, 5.00 Dia. Price: $49.33 |
| 35 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 36 |
731-09968B |
SPINDLE COVER (RH) This part replaces 731-09968. Price: $25.19 |
| 37 |
731-09969C |
SPINDLE COVER (LH) This part replaces 731-09969A. Price: $24.94 |
| 38 |
631-05116B |
Chute Deflector Assembly Price: $47.99 |
| 39 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 40 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 41 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 42 |
732-05261 |
Spring, Torsion, .440 ID x 1.75 Price: $5.18 |
| 43 |
747-06290B |
Hinge Pin Price: $3.66 |
| 44 |
783-08504B |
CHUTE MOUNTING BRACKET This part replaces 783-08504A. Price: $12.64 |
| 45 |
738-1186A |
Spindle Shaft, 6.11 Long Price: $45.83 |
| 46 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 47 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 48 |
750-06152 |
Spacer, .792 x 1.060 x 1.782 Price: $5.59 |
| 49 |
756-05036 |
Deck Pulley Price: $20.29 |
