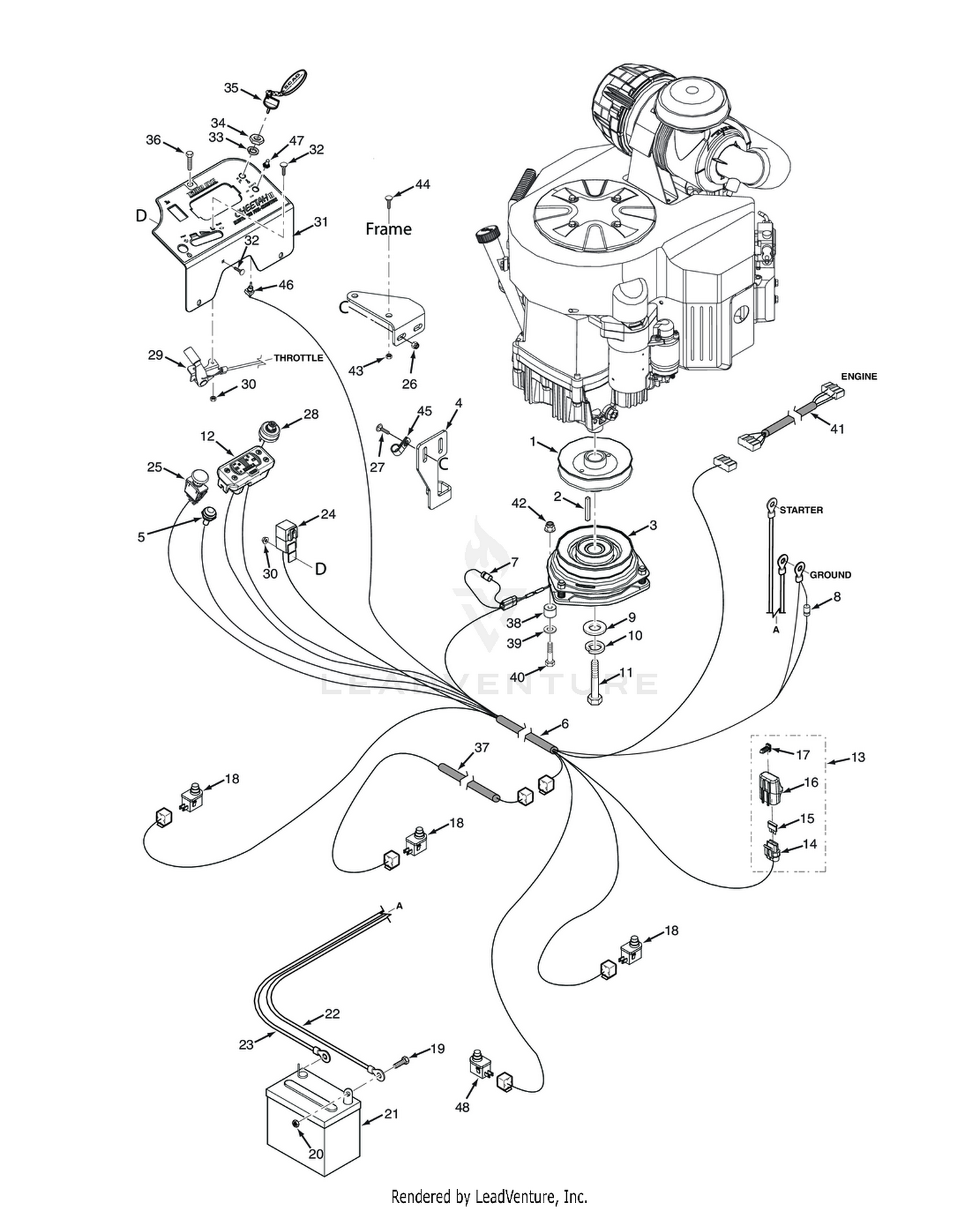

| Ref | Part Number | Description |
|---|
| 1 |
484098 |
Pulley, 5.80" Dia. - 1.125 Bore Price: Call Us |
| 2 |
04063-23 |
Key, 1/4 x 1/4 x 3-1/4” Price: Call Us |
| 3 |
461826 |
Electric Clutch w/Tag - GT-5 (ECV860, ECV940) Price: Call Us |
| 4 |
426950 |
Bracket, Anti-Rotation Price: Call Us |
| 5 |
481182 |
Indicator Light, Glow Plugs (Includes Mounting Hardware) Price: Call Us |
| 6 |
486508 |
Wire Harness, SCZII-EFI Price: Call Us |
| 6 |
486753 |
Wire Harness, SCZII-FX-EFI Price: Call Us |
| 7 |
483958 |
Diode, 600V 6 Amp Price: Call Us |
| 8 |
482253 |
Decal, Forward Speed Selector Price: Call Us |
| 9 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 10 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 11 |
04102-03 |
Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki) Price: Call Us |
| 12 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 13 |
485739 |
Single Fuse Assy., Excluding Fuse Price: Call Us |
| 14 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 15 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 16 |
483643 |
Cover, Sealed Single Price: Call Us |
| 17 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 18 |
481638 |
Switch, Interlock, Normally Open Price: Call Us |
| 19 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 20 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 22 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 23 |
48126 |
RUBBER BOOT Price: Call Us |
| 24 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 25 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 26 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 27 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 28 |
48798 |
KEY SWITCH(INCLUDES MOUNTING HARDWARE) Price: Call Us |
| 29 |
485464 |
Control, E-Gov Throttle Price: Call Us |
| 30 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 31 |
463240 |
Instrument Panel w/Decal Price: Call Us |
| 32 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 33 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 34 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 35 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 36 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 37 |
484722 |
Wire Harness, Operator Platform -SCZ Price: Call Us |
| 38 |
431009 |
Bushing, UHMW Price: Call Us |
| 39 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 40 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 42 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 43 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 44 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 45 |
48030-09 |
Clamp, Cable 1/2" I.D. Price: Call Us |
| 46 |
483120 |
SWITCH, ON / OFF Price: Call Us |
| 47 |
483121 |
BOOT, SWITCH Price: Call Us |
