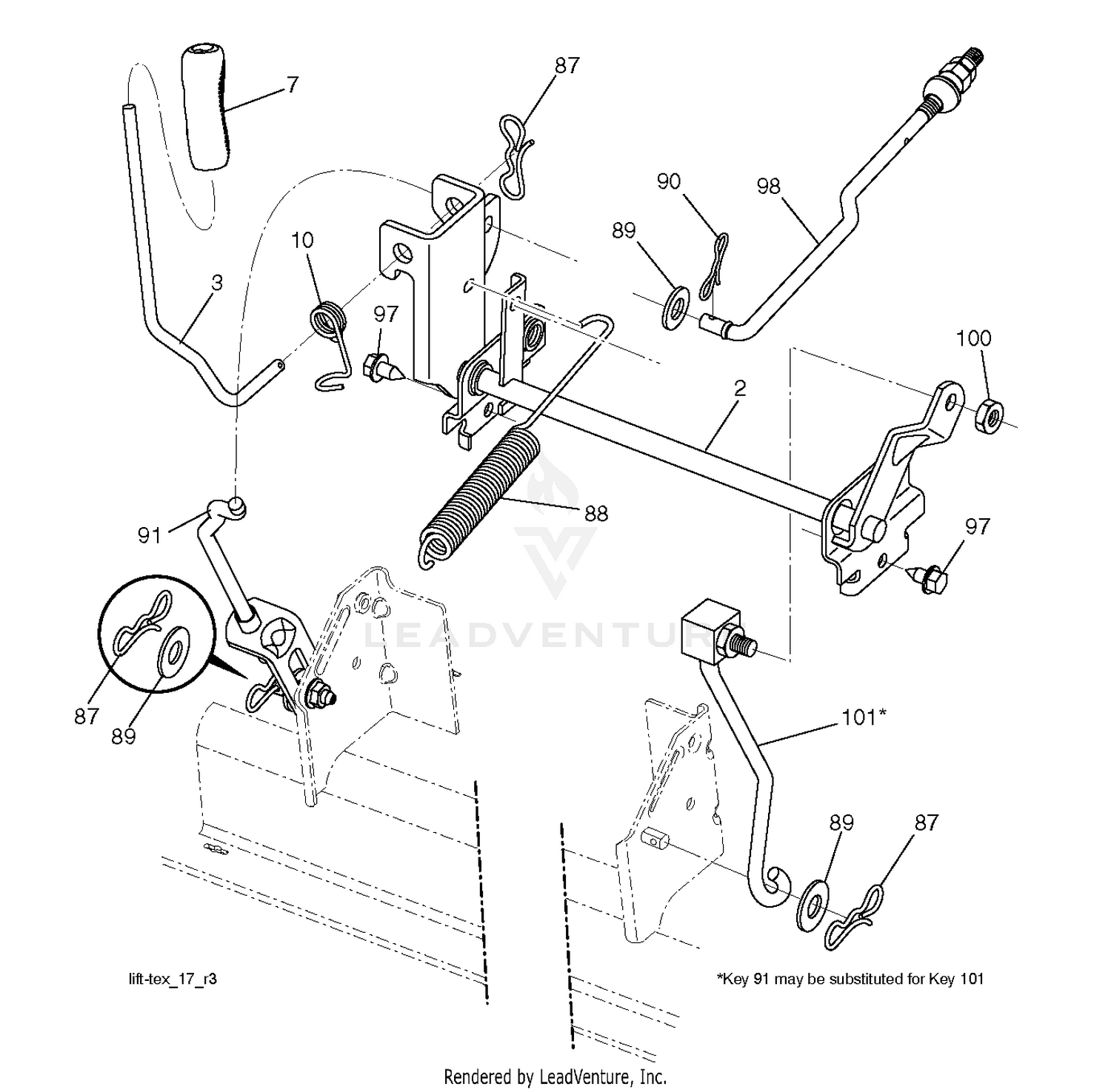

| Ref | Part Number | Description |
|---|
| 1 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $49.99 |
| 2 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 3 |
532195231 |
LEVER.LIFT.HANDLE.LT Price: $28.99 |
| 4 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 5 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $2.99 |
| 7 |
94-9611 |
HANDLE Price: $151.08 |
| 8 |
256-311 |
BUSHING-SPLIT Price: $13.37 |
| 9 |
112-0278 |
SWITCH-REED This part replaces 93-2055. Price: $55.79 |
| 10 |
120-5341 |
KIT-SERVICE, ACTUATOR This part replaces 93-2056. Price: $43.38 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $2.99 |
| 11 |
94-1378 |
TUBE-PIVOT, HANDLE Price: $9.66 |
| 12 |
33115-040 |
SCREW-HH Price: $1.22 |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
94-6398 |
BRACKET-TRACTION Price: $31.52 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 18 |
251-259 |
BEARING-BALL Price: $13.67 |
| 19 |
94-9617 |
PIN-SPRING Price: $9.91 |
| 20 |
233-42 |
KNOB Price: $12.88 |
| 21 |
120-3198 |
ROLLER-PIVOT This part replaces 94-9614. Price: $9.78 |
| 22 |
94-9619 |
BUSHING Price: $17.13 |
| 23 |
3256-67 |
WASHER Price: $0.49 |
| 24 |
94-9618 |
SPACER-SPRING Price: $9.85 |
| 25 |
94-9620 |
SPRING-TORSION Price: $20.28 |
| 26 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 27 |
105-5417-03 |
BRACKET-CABLE, SHIFTER Price: $21.91 |
| 28 |
106-6356 |
SHIELD-SWITCH Price: $12.11 |
| 29 |
322-2 |
SCREW-HH Price: $0.69 |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI Price: $1.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $4.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.49 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 91 |
532195181 |
LINK.ASM.LIFT.REAR Price: $33.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 98 |
532195270 |
LINK.ASM.SUSP.FRONT.MW Price: $14.99 |
| 100 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
