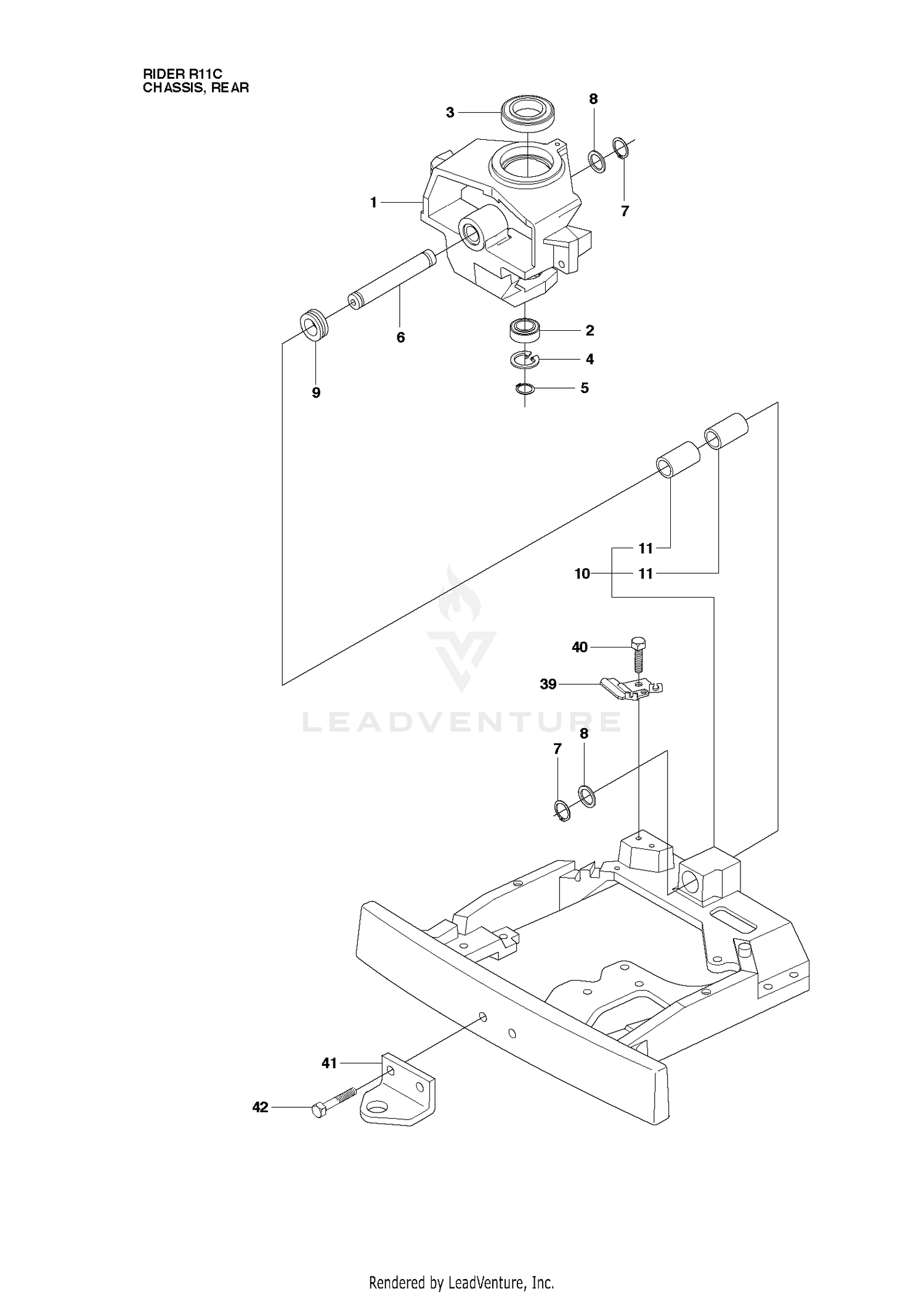

CHASSIS REAR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 237-21 | O-RING Price: $0.70 |
| 1 | 506985803 | SPINDLE Price: $179.99 |
| 2 | 237-22 | O-RING Price: $2.43 |
| 2 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 3 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 4 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 5 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 6 | 506985901 | SHAFT Price: $44.99 |
| 7 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 8 | 506773401 | WASHER Price: $3.99 |
| 9 | 740681421 | V-RING Price: $3.99 |
| 11 | 506986102 | BUSHING Price: $14.99 |
| 39 | 506575201 | Bracket Price: $20.42 |
| 40 | 725236651 | SCREW Price: $2.99 |
| 41 | 506889901 | DRAW RING Price: $17.99 |
| 42 | 725249371 | Screw M10x25 Price: $1.82 |
