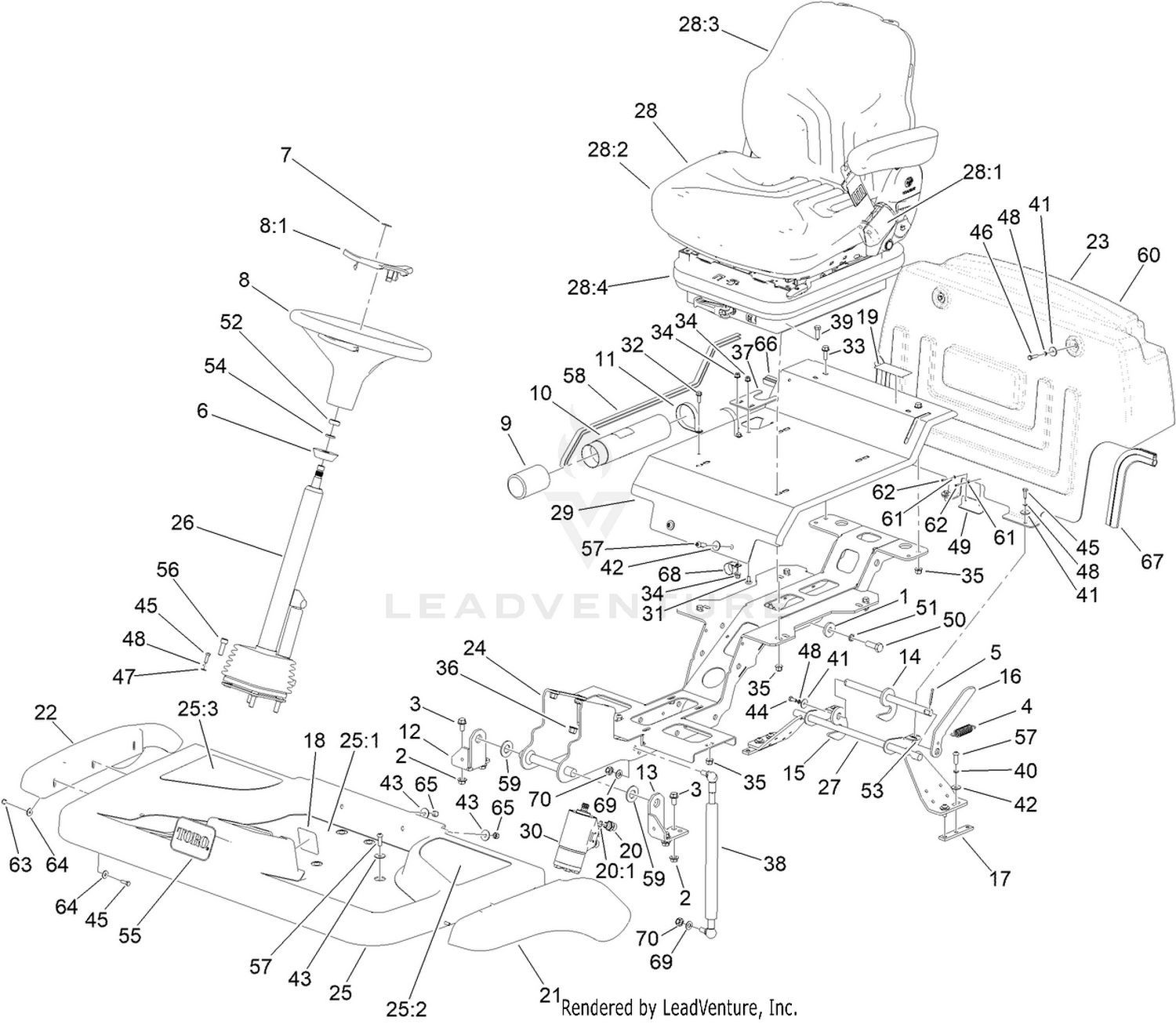

| Ref | Part Number | Description |
|---|
| 1 |
63-01-115 |
WASHER Price: $2.67 |
| 2 |
63-11-015 |
FLANGED NUT(12.9)M10 Price: $2.54 |
| 3 |
63-11-018 |
HEX HED. SCREW (DURLOCK)M10*20 Price: $7.62 |
| 4 |
70-07-063 |
EXTENSION SPRING Price: $12.85 |
| 5 |
70-11-004 |
SPLIT PIN 4 DIA*40 Price: $5.90 |
| 6 |
93-5429 |
COLLAR-FOAM Price: $36.18 |
| 7 |
98-1459 |
DECAL Price: $3.93 |
| 8 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 9 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 10 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 11 |
107-1865 |
R-Clamp Price: $6.86 |
| 12 |
111-2665-03 |
BRACKET PLATFORM PIVOT RH Price: $28.32 |
| 13 |
111-3243-03 |
BRACKET PLATFORM PIVOT LH Price: $29.30 |
| 14 |
111-3266 |
PLATFORM LATCH W/A Price: $57.99 |
| 15 |
111-3268 |
PLATE PLATFORM LATCH Price: $53.93 |
| 16 |
111-3269-03 |
LEVER PLATFORM LATCH Price: $16.31 |
| 17 |
111-3281 |
NUT BAR Price: $18.16 |
| 18 |
111-3562 |
DECAL Price: $21.00 |
| 19 |
134-4539 |
DECAL-LATCH, PLATFORM Price: Call Us |
| 20 |
111-4788 |
FITTING-STRAIGHT Price: $4.75 |
| 21 |
111-4921 |
MUDGUARD-LH Price: $98.20 |
| 22 |
111-4922 |
MUDGUARD-RH Price: $98.20 |
| 23 |
134-4202 |
BULKHEAD Price: $213.74 |
| 24 |
134-1750-03 |
SUPPORT-PLATFORM [BLACK] Price: $513.86 |
| 25 |
111-9744 |
OPERATOR PLATFORM ASM Price: $510.26 |
| 26 |
132-6230 |
COLUMN-TILT Price: $779.55 |
| 27 |
134-2195-03 |
LATCH BAR WELDED ASSEMBLY Price: Call Us |
| 28 |
134-3681 |
SEAT ASM Price: $1,017.44 |
| 29 |
134-6342-03 |
SEAT PAN Price: Call Us |
| 30 |
134-3736 |
STEERING VALVE Price: $411.46 |
| 31 |
09570 |
BOLT-CARRIAGE Price: $0.39 |
| 32 |
134-3740 |
SCREW-HHF Price: $0.16 |
| 33 |
134-3747 |
SCREW-HHF Price: $0.43 |
| 34 |
134-3761 |
NUT-FLANGE, NI Price: $0.37 |
| 35 |
134-3762 |
NUT-FLANGE, NI Price: $0.34 |
| 36 |
134-3763 |
NUT-FLANGE, NI Price: $0.64 |
| 37 |
134-3791-03 |
PLATE, COVER Price: Call Us |
| 38 |
134-3839 |
GAS STRUT Price: $174.70 |
| 39 |
03162 |
STEEL BOLT Price: $1.39 |
| 40 |
03469 |
WASHER M8 SC SPRING Price: $1.40 |
| 41 |
09263 |
WASHER 1/4 X 7/8 X .08" THK Price: $1.34 |
| 42 |
09267 |
WASHER 5/16 X 7/8 X 15G GALV Price: $1.39 |
| 43 |
09270 |
WASHER PLAIN 5/16 X 1 X 16G Price: $1.39 |
| 44 |
09362 |
SCREW M6 X 16 HEX HD ZINC Price: $1.42 |
| 45 |
09363 |
SETSCREW M6 X 20 Price: $1.31 |
| 46 |
09364 |
SETSCREW M6 X 25 Price: $1.34 |
| 47 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 48 |
09474 |
WASHER M6 SC SPRING Price: $1.34 |
| 49 |
134-5321-03 |
PLATE-COVER Price: Call Us |
| 50 |
ZDH1L035U |
HEX.HD.SET SCW.M12*35 Price: $1.38 |
| 51 |
09599 |
WASHER Price: $1.42 |
| 52 |
09827 |
NUT UNF 5/8"-18 THIN Price: $1.40 |
| 53 |
410076 |
LUG NUT Price: $1.56 |
| 54 |
HY4200 |
WASHER Price: $1.34 |
| 55 |
HY67-1300 |
DECAL - TORO LOGO Price: $17.73 |
| 56 |
ZCS1J030U |
SOC.HD.CAP Price: $1.31 |
| 57 |
ZHS1H025U |
SCREW SOC HD BUTTON M8*25 Price: $1.38 |
| 58 |
50-08-001 |
MOULDING Price: $9.43 |
| 59 |
09499 |
WASHER M20 PLAIN Price: $1.40 |
| 60 |
134-6700 |
FOIL, HEAT REFLECTIVE Price: $809.77 |
| 61 |
HY09697 |
WASHER M3 PLAIN Price: $1.36 |
| 62 |
111-4198 |
RIVET-POP Price: $1.35 |
| 63 |
09438 |
NUT M6 X 1.5 PLAIN Price: $1.39 |
| 64 |
09262 |
WASHER 1/4 X 3/4 GALV ROOFING Price: $1.40 |
| 65 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 66 |
70-07-070 |
PROTECTION STRIP-BLACK Price: $11.33 |
| 67 |
994808 |
DRAUGHT EXCLUDER DX79 ## Price: $11.86 |
| 68 |
2412-104 |
CLAMP-R Price: $2.37 |
| 69 |
09479 |
WASHER M10 X 21 X 1.45 THK (P) Price: $1.39 |
