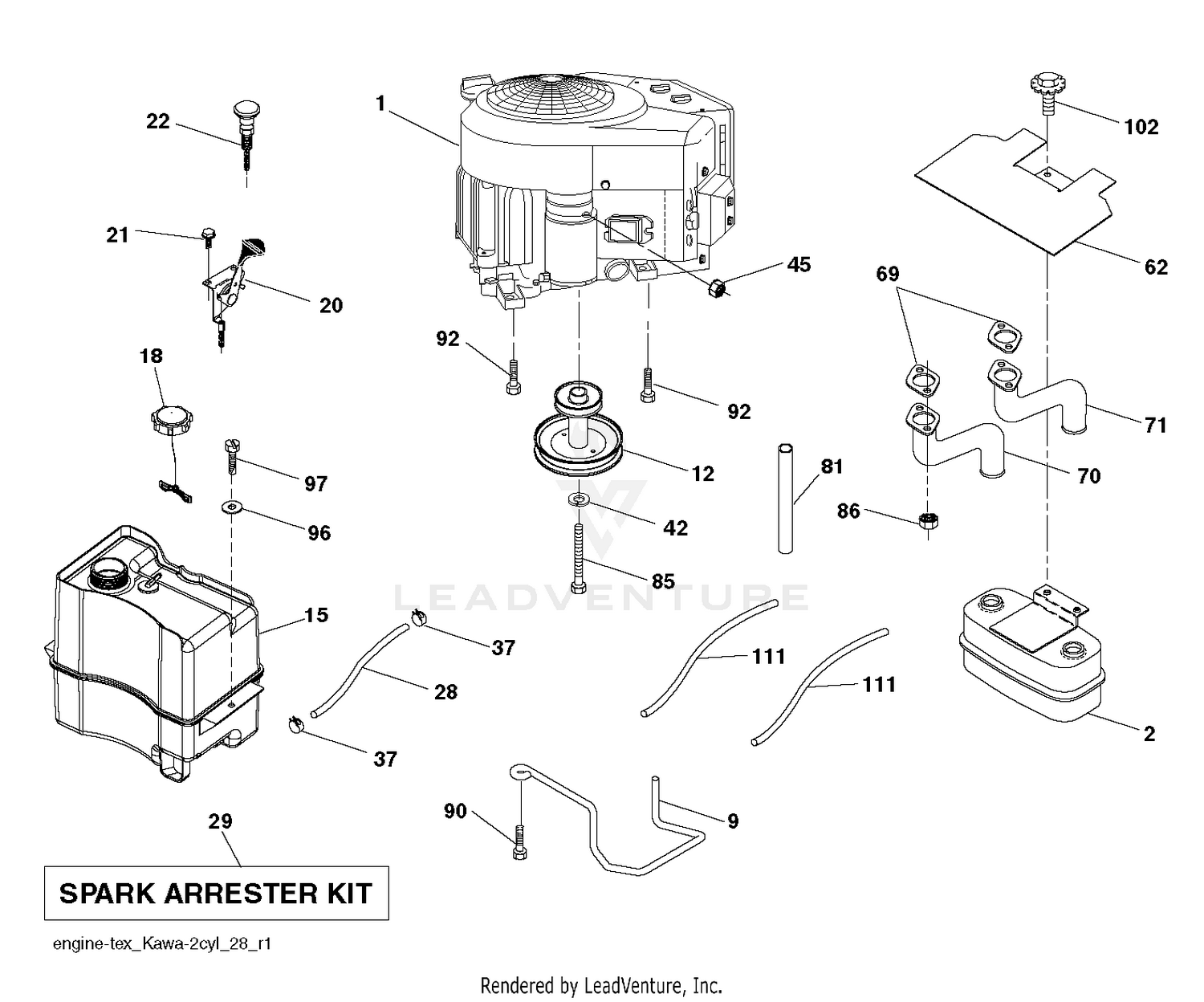

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 15 |
597954502 |
FUEL TANKS This part replaces 532433007. Price: $109.99 |
| 18 |
532438596 |
CAP.2.25'.VENTED.TETHER .EPA Price: $29.99 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 70 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 71 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
583135201 |
ADAPTER.BLADE.21.FWGD This part replaces 532184632. Price: $12.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
