| Ref | Part Number | Description |
|---|
| 1 |
104-0000-03 |
PULLEY Price: $400.11 |
| 2 |
99-6937 |
FAN Price: $304.08 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 9 |
104-0017 |
HUB This part replaces 104-0017-03. Price: $185.06 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 13 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
104-1440-03 |
SUPPORT-FAN Price: $395.73 |
| 16 |
104-0006-03 |
LEVER-FAN, IDLER Price: $61.11 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
98-3921 |
BELT Price: $16.95 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
104-1447-03 |
BRACKET-FAN, SUPPORT This part replaces 104-1447. Price: $39.88 |
| 22 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 26 |
104-1481-03 |
BRACKET-MOUNT, FAN Price: $58.30 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
33114-020 |
SCREW-HH Price: $0.28 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
104-0007 |
SPACER Price: $39.26 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
104-1482 |
PLATE-WASHER Price: $15.25 |
| 503200210 |
503200710 |
SCREW M5 X 10 This part replaces 503200210. Price: $4.99 |
| 503217520 |
503217520 |
SCREW Price: $3.99 |
| 503863601 |
536813201 |
SPARK ARRESTER 50CC This part replaces 503863601. Price: $1.99 |
| 503917401 |
503917402 |
SUPPORT This part replaces 503917401. Price: $7.99 |

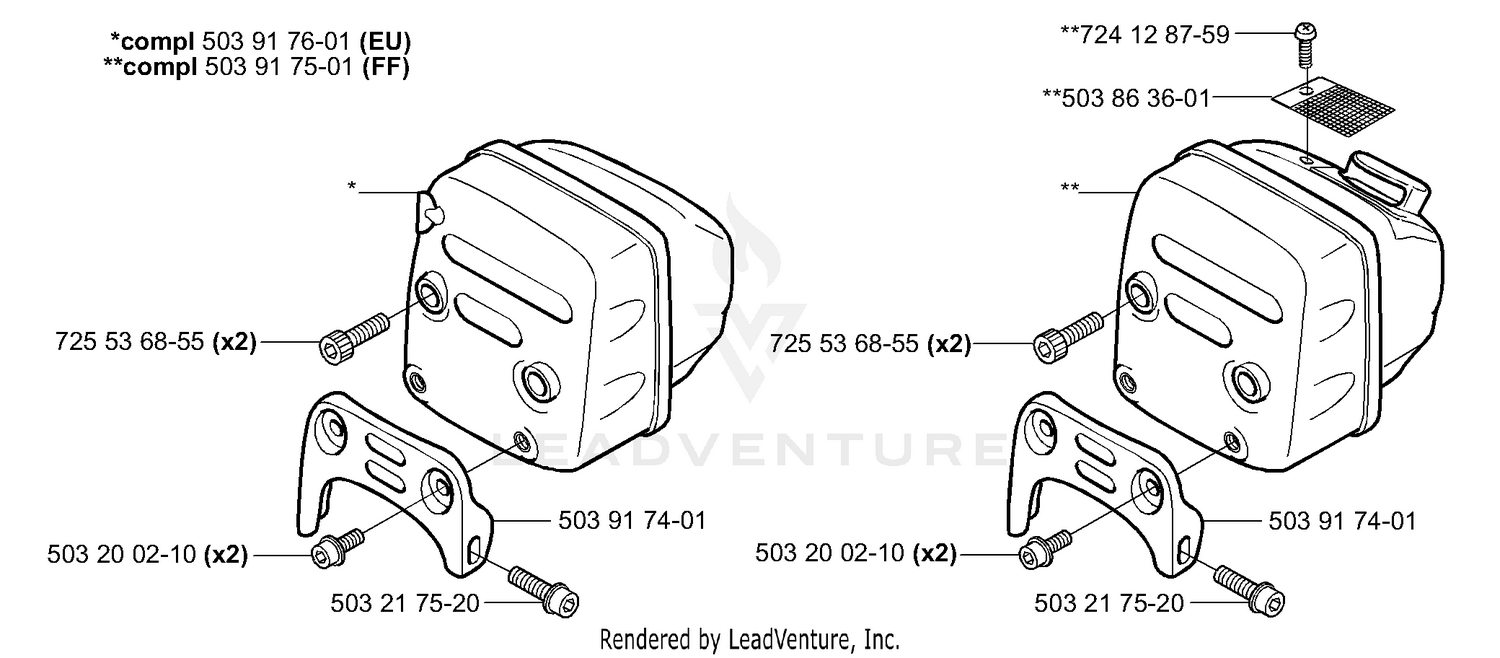

| 503917501 |
504706401 |
MUFFLER ASSY This part replaces 503917501. Price: $69.99 |
| 503917601 |
504706401 |
MUFFLER ASSY This part replaces 503917601. Price: $69.99 |
| 724128759 |
724128759 |
SCREW Price: $2.99 |
