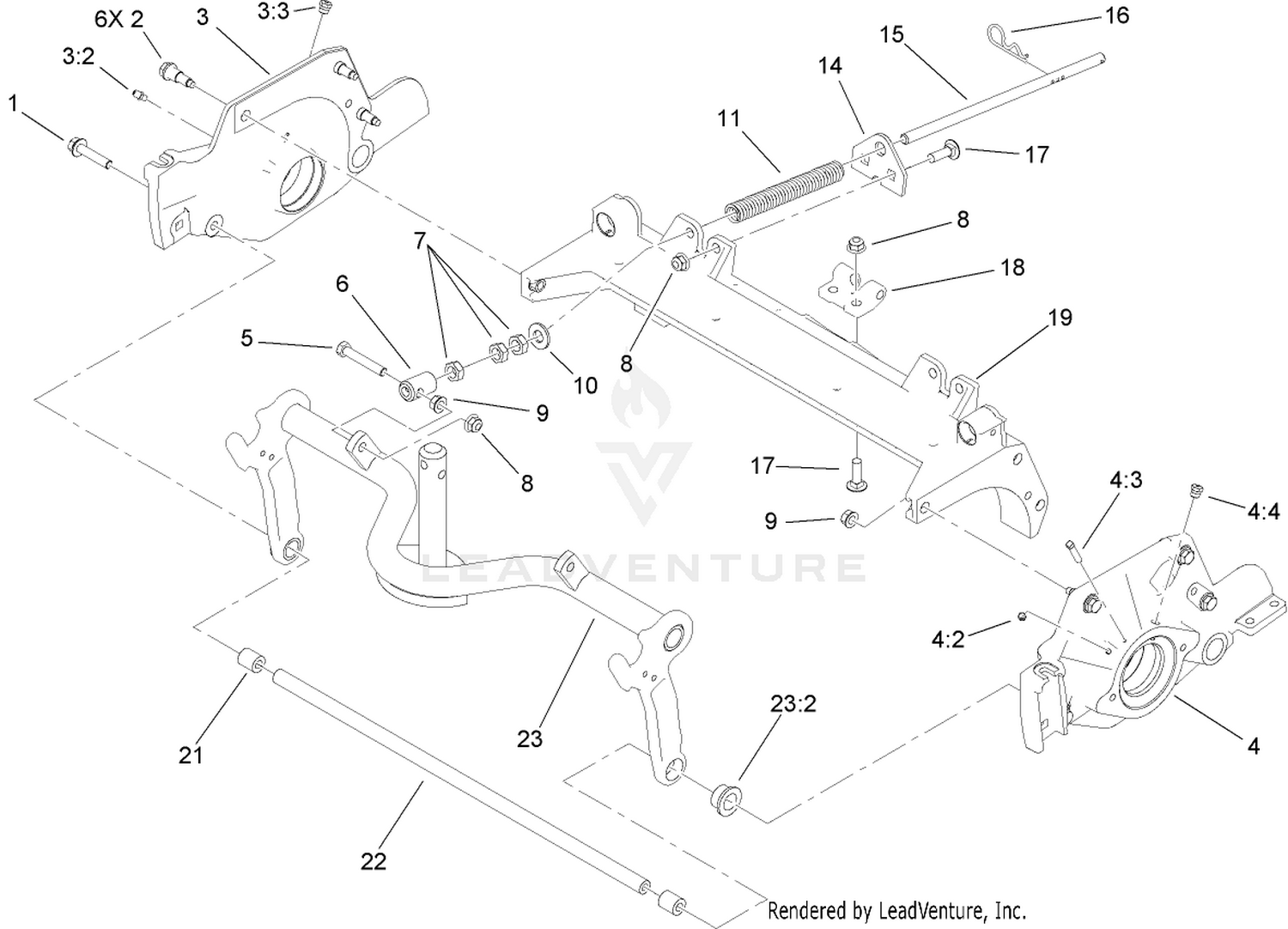

| Ref | Part Number | Description |
|---|
| 1 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 2 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 3 |
110-9631 |
RH SIDE PLATE ASM Price: $330.07 |
| 4 |
110-9630 |
LH SIDE PLATE ASM Price: $330.07 |
| 5 |
104-3396 |
SCREW-HH Price: $0.75 |
| 6 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 7 |
3218-5 |
NUT-JAM Price: $0.27 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
32128-40 |
NUT-FLANGE Price: $0.88 |
| 10 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 11 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 14 |
110-4069 |
BRACKET Price: $5.57 |
| 15 |
115-2007 |
ROD-SPRING This part replaces 107-7437. Price: $34.97 |
| 16 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 21 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 22 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 23 |
107-7433 |
CARRIER FRAME ASM Price: $484.72 |
