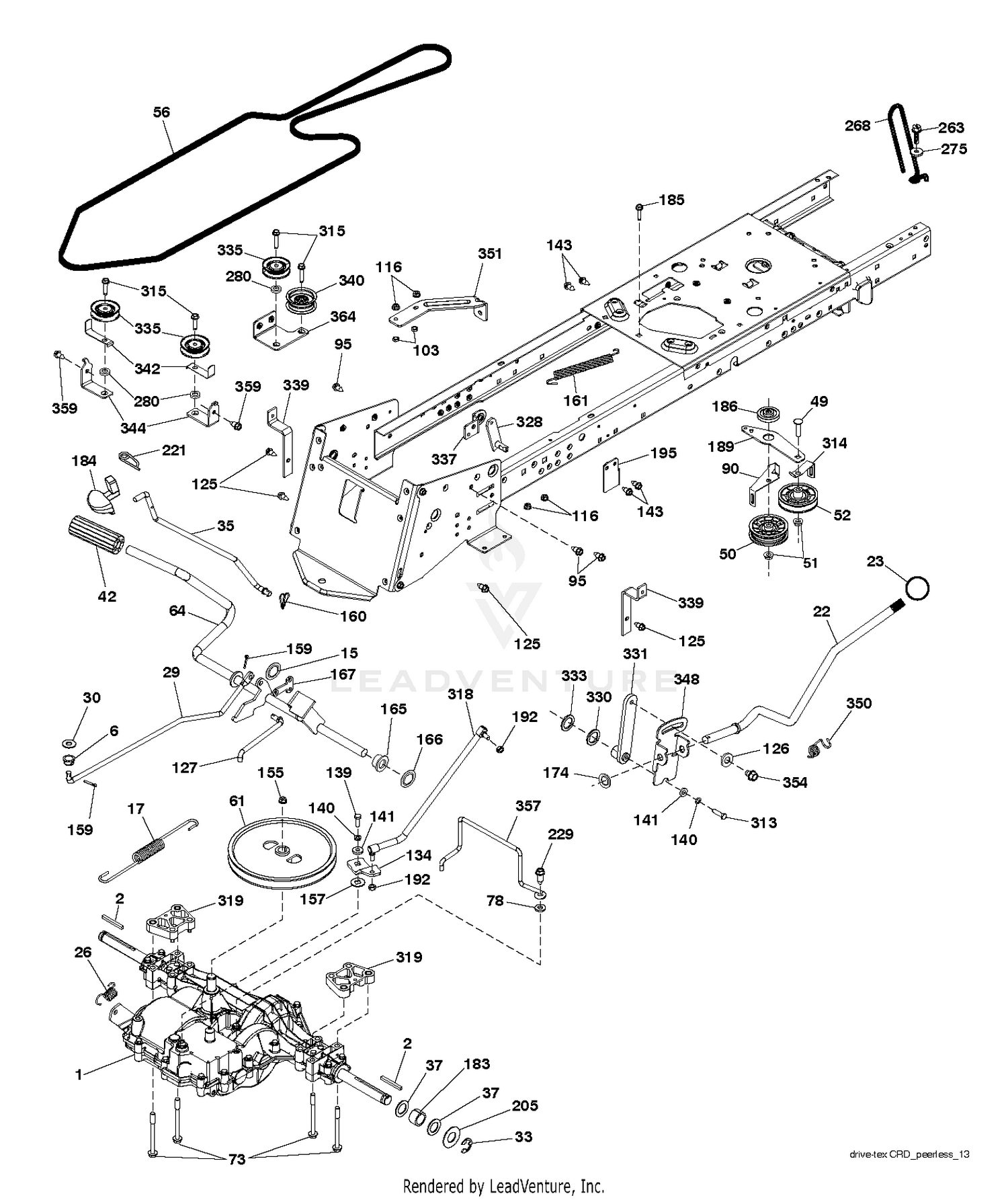

| Ref | Part Number | Description |
|---|
| 1 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 2 |
532123583 |
SQUARE KEY Price: $2.69 |
| 2 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 3 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 4 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 5 |
110-4100 |
HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 6 |
532124208 |
MANDREL ASS'Y Price: $109.99 |
| 6 |
62-7650 |
GASKET Price: $4.28 |
| 7 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 9 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 10 |
110-4101 |
HOSE-FUEL This part replaces 27-5370. Price: $16.81 |
| 11 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 12 |
110-4102 |
HOSE-FUEL This part replaces 75-4700. Price: $39.17 |
| 13 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 14 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 15 |
354-20 |
FITTING-TEE Price: $12.61 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
110-4103 |
HOSE-FUEL This part replaces 98-9338. Price: $18.01 |
| 17 |
110-4104 |
HOSE-FUEL This part replaces 93-2042. Price: $8.95 |
| 17 |
532440867 |
Price: $2.99 |
| 18 |
66-8121 |
STANDPIPE Price: $23.18 |
| 19 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 21 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 22 |
105-7933 |
TANK-FUEL Price: $275.80 |
| 22 |
532443246 |
Price: $10.99 |
| 23 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 23 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $5.99 |
| 24 |
63-8410 |
WASHER Price: $1.76 |
| 25 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 26 |
532146682 |
SPRING,BRAKE RETURN Price: $4.99 |
| 26 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 27 |
2412-146 |
CLAMP-HOSE Price: $1.46 |
| 28 |
321-6 |
SCREW-HH Price: $0.25 |
| 29 |
532437016 |
Price: $8.99 |
| 30 |
104-9333 |
BRACKET-PUMP, FUEL Price: $8.04 |
| 30 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99 |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 32 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 33 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 35 |
532401031 |
ROD, BRAKE, PARK Price: $12.99 |
| 37 |
532121749 |
WASHER Price: $1.99 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532438285 |
Price: Call Us |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532436384 |
Price: $36.99 |
| 61 |
532165999 |
Price: $38.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 73 |
874490560 |
BOLT.HEX.FLNG.5/16-18X3.75 Price: $2.99 |
| 78 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111212. Price: $2.02 |
| 90 |
532443605 |
Price: $1.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 103 |
873220500 |
Hex, Nut 5/16-18 This part replaces 873350500. Price: $3.99 |
| 116 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 126 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 127 |
532194323 |
LINK.CLUTCH.GROUND.DRIVE Price: $7.99 |
| 134 |
532145090 |
ARM SHIFT Price: $2.99 |
| 139 |
871040412 |
Bolt, Shift Plate This part replaces 874550412. Price: $3.99 |
| 140 |
810040400 |
LOCKWASHER Price: $3.99 |
| 141 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 143 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 155 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
| 157 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532199996 |
HANDLE.PARKG.BRK.PRED.LT This part replaces 532441407. Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 189 |
532433611 |
Price: $1.99 |
| 192 |
873610400 |
NUT This part replaces 532150360. Price: $2.99 |
| 195 |
532435865 |
Price: Call Us |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 229 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 268 |
532182402 |
Price: $4.99 |
| 275 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 280 |
819111012 |
WASHER T Price: $3.99 |
| 313 |
874780416 |
BOLT Price: $3.99 |
| 314 |
532123205 |
RETAIN BELT Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $2.99 |
| 318 |
532437022 |
Price: $25.99 |
| 319 |
532436794 |
Price: $5.99 |
| 328 |
532437958 |
Price: $4.99 |
| 330 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $4.99 |
| 331 |
532443606 |
Price: $5.99 |
| 333 |
532170868 |
Price: $5.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $22.99 |
| 337 |
532435937 |
Price: $1.99 |
| 339 |
532436867 |
Price: $1.99 |
| 340 |
532436812 |
Price: $16.99 |
| 342 |
532182682 |
Keeper Belt 2.5" Od V-Idler CRD Price: $1.99 |
| 344 |
532435645 |
Price: $1.99 |
| 348 |
532443607 |
Price: $2.99 |
| 350 |
532445020 |
Price: $1.99 |
| 351 |
532436998 |
Price: $2.99 |
| 354 |
817490510 |
SCREW Price: $2.99 |
| 357 |
532441338 |
Price: $6.99 |
| 359 |
817490610 |
SCREW LT.3/8-46X5/8 Price: $2.99 |
