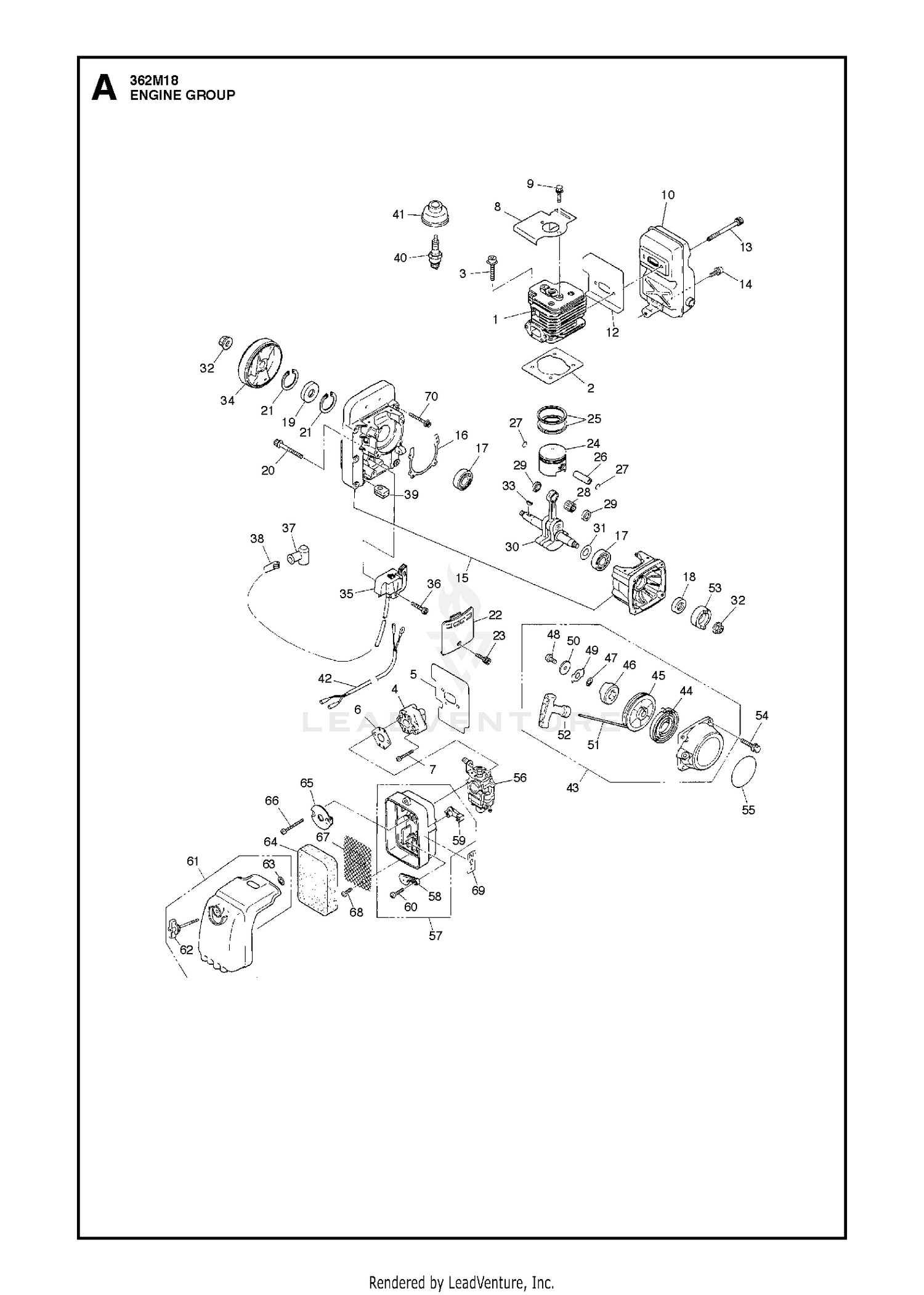

ENGINE
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 531435101 | CYLINDER G62L MACHINING This part replaces 513661901. Price: $74.99 |
| 2 | 513662601 | GASKET Price: $4.99 |
| 3 | 513662501 | BOLT Price: $2.99 |
| 4 | 513284601 | INSULATOR Price: $12.99 |
| 5 | 513662901 | GASKET Price: $5.99 |
| 6 | 513267001 | GASKET Price: $3.99 |
| 7 | 513284701 | BOLT Price: $2.99 |
| 8 | 513662701 | COVER Price: $6.99 |
| 9 | 513662801 | BOLT Price: $2.99 |
| 10 | 521672701 | RP_MUFFLER This part replaces 511709501. Price: $42.99 |
| 12 | 513663301 | GASKET Price: $6.99 |
| 13 | 513663101 | BOLT Price: $3.99 |
| 14 | 513663201 | BOLT Price: $2.99 |
| 15 | 521633701 | CRANKCASE COMP Price: $27.99 |
| 16 | 513663601 | GASKET Price: $3.99 |
| 17 | 521521201 | BEARING Price: $7.99 |
| 18 | 502849201 | SEALING Price: $8.99 |
| 19 | 521521801 | OIL SEAL Price: $8.99 |
| 20 | 506609401 | BOLT Price: $2.99 |
| 21 | 516126201 | SNAP-RING Price: $2.99 |
| 22 | 513663901 | COVER Price: $7.99 |
| 23 | 513323201 | BOLT Price: $2.99 |
| 24 | 513667701 | PISTON Price: $32.99 |
| 25 | 514257401 | RING.PISTON 2PK Price: $6.99 |
| 26 | 514257501 | PIN Price: $6.99 |
| 27 | 502849801 | SNAP RING Price: $2.99 |
| 28 | 502849901 | BEARING Price: $9.99 |
| 29 | 502850001 | WASHER Price: $4.99 |
| 30 | 521633901 | CRANKSHAFT COMP. (RPLS. -4201) Price: $139.99 |
| 31 | 513226501 | SHIM Price: $2.99 |
| 32 | 513241901 | NUT Price: $3.99 |
| 33 | 506689401 | KEY Price: $2.99 |
| 34 | 513671601 | ROTOR Price: $54.99 |
| 35 | 513671701 | COIL Price: $54.99 |
| 37 | 513443401 | CAP Price: $4.99 |
| 38 | 505298901 | SPRING Price: $2.99 |
| 39 | 521358801 | RP GROMMET This part replaces 515415301. Price: $2.99 |
| 40 | 515497401 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 513681401 | CAP Price: $3.99 |
| 42 | 513672001 | CORD-C Price: $6.99 |
| 43 | 502843101 | STARTER ASSY Price: $37.99 |
| 44 | 502843301 | SPRING Price: $9.99 |
| 45 | 502843401 | STARTER PULLEY Price: $14.99 |
| 46 | 504554801 | STARTER PAWL Price: $6.99 |
| 47 | 502843601 | WASHER Price: $2.99 |
| 48 | 502843801 | SCREW Price: $2.99 |
| 49 | 516348601 | RP_RETAINER (RPLS 186175161) This part replaces 504554901. Price: $4.99 |
| 50 | 516348701 | RP_WASHER This part replaces 502843701. Price: $4.99 |
| 51 | 516316801 | RP_ROPE This part replaces 502843501. Price: $5.99 |
| 52 | 502843201 | KNOB Price: $9.99 |
| 53 | 513288801 | PULLEY Price: $9.99 |
| 54 | 514320901 | BOLT Price: $2.99 |
| 55 | 575521301 | NEEDS DESCRIPTION Price: Call Us |
| 56 | 513672201 | CARBURETOR-A Price: $99.99 |
| 57 | 514286001 | BODY Price: $14.99 |
| 58 | 514286201 | PLATE Price: $4.99 |
| 59 | 514286301 | LEVER Price: $3.99 |
| 60 | 516771801 | RP_SCREW (RPLS 50030272) This part replaces 506614001. Price: $2.99 |
| 61 | 529314201 | NEEDS DESCRIPTION Price: Call Us |
| 62 | 513290301 | KNOB Price: $4.99 |
| 63 | 515417701 | RING Price: $2.99 |
| 64 | 513303301 | ELEMENT Price: $9.99 |
| 65 | 513286401 | PLATE Price: $11.99 |
| 66 | 510483101 | SCREW Price: $2.99 |
| 67 | 513303501 | SCREEN Price: $6.99 |
| 68 | 513303601 | SCREW Price: $2.99 |
| 69 | 513185301 | LABEL Price: $2.99 |
| 70 | 513664001 | BOLT Price: $2.99 |
