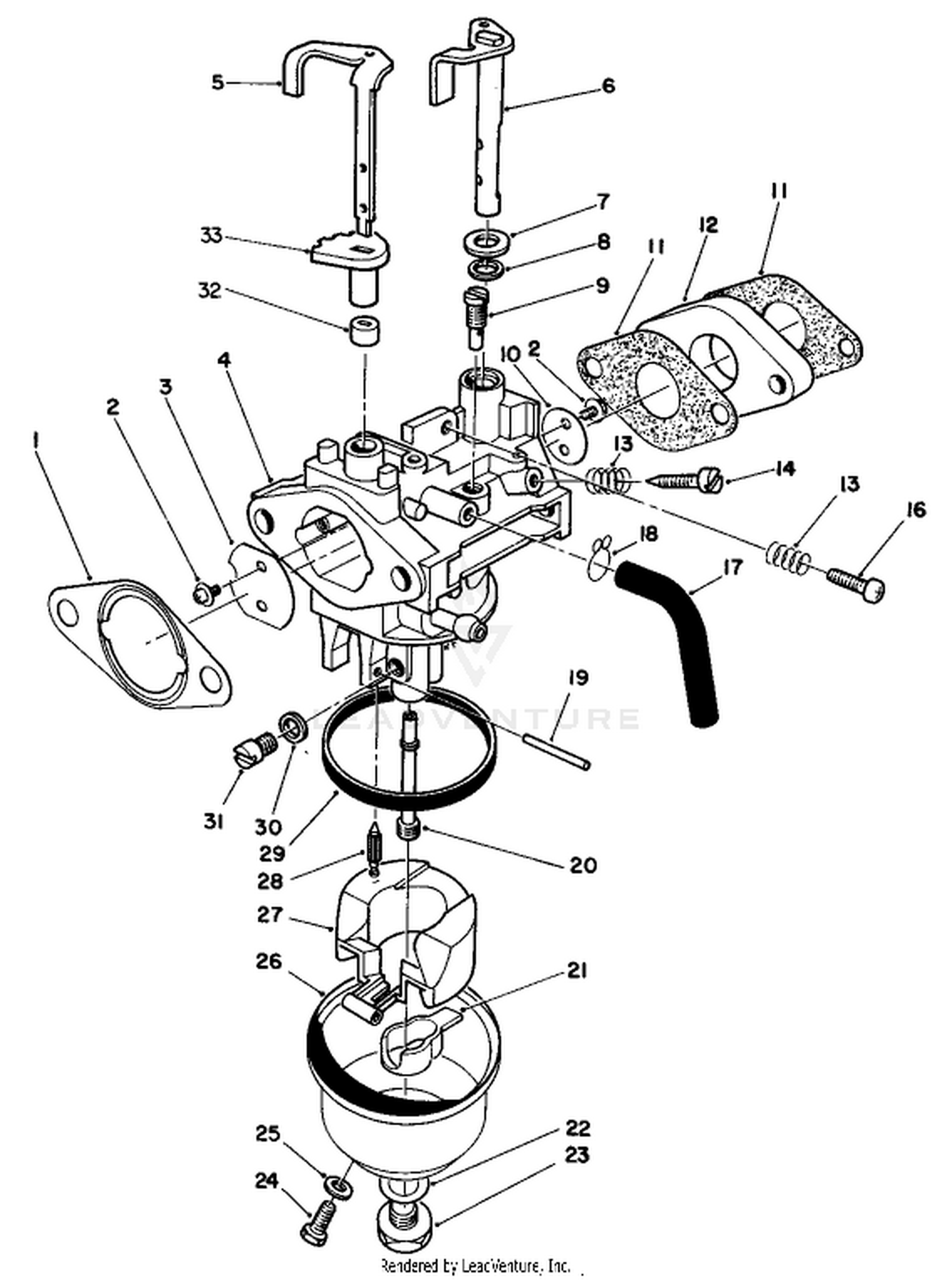

| Ref | Part Number | Description |
|---|
| 1 |
81-4250 |
GASKET F/W ENGINE Price: $6.71 |
| 2 |
81-2160 |
SCREW This part replaces 81-2710. Price: $2.48 |
| 3 |
81-2720 |
VALVE Price: $25.34 |
| 5 |
81-4270 |
Shaft-Choke Valve (Incl. Ref. No. 31 32) This part replaces 81-5510. Price: Call Us |
| 6 |
81-2920 |
SHAFT Price: Call Us |
| 7 |
81-4280 |
WASHER Price: Call Us |
| 8 |
81-2530 |
SEAL This part replaces 81-4290. Price: $4.74 |
| 9 |
81-5620 |
JET - PILOT Price: Call Us |
| 10 |
81-2940 |
VALVE Price: $24.63 |
| 11 |
81-5560 |
GASKET INTAKE Price: $3.96 |
| 12 |
81-5570 |
INSULATOR - CARB. Price: Call Us |
| 13 |
81-2580 |
SPRING-PILOT SCREW Price: $6.44 |
| 14 |
50-2360 |
ADJUSTER Price: $11.09 |
| 16 |
50-0250 |
SCREW Price: Call Us |
| 17 |
81-4310 |
TUBE Price: Call Us |
| 18 |
81-4300 |
CLAMP Price: Call Us |
| 19 |
81-2600 |
PIN-HINGE This part replaces 81-5600. Price: $4.36 |
| 20 |
81-5630 |
NOZZLE - MAIN Price: Call Us |
| 21 |
81-4940 |
SPACER Price: Call Us |
| 22 |
81-2650 |
GASKET Price: $4.37 |
| 23 |
81-2660 |
SCREW Price: $15.64 |
| 24 |
81-2670 |
SCREW Price: $6.31 |
| 25 |
81-2680 |
GASKET Price: $3.31 |
| 26 |
81-4340 |
BOWL Price: $66.98 |
| 27 |
81-4920 |
FLOAT Price: $29.09 |
| 28 |
81-5820 |
SEAT KIT This part replaces 81-4700. Price: $25.16 |
| 29 |
81-2630 |
FLOAT BOWL GASKET Price: $8.09 |
| 30 |
81-4350 |
SPACER Price: Call Us |
| 31 |
50-5610 |
DISCONTINUED Price: Call Us |
| 32 |
81-5530 |
LOWER CHOKE RING Price: $8.36 |
| 33 |
81-5520 |
UPPER CHOKE RING Price: $8.44 |
