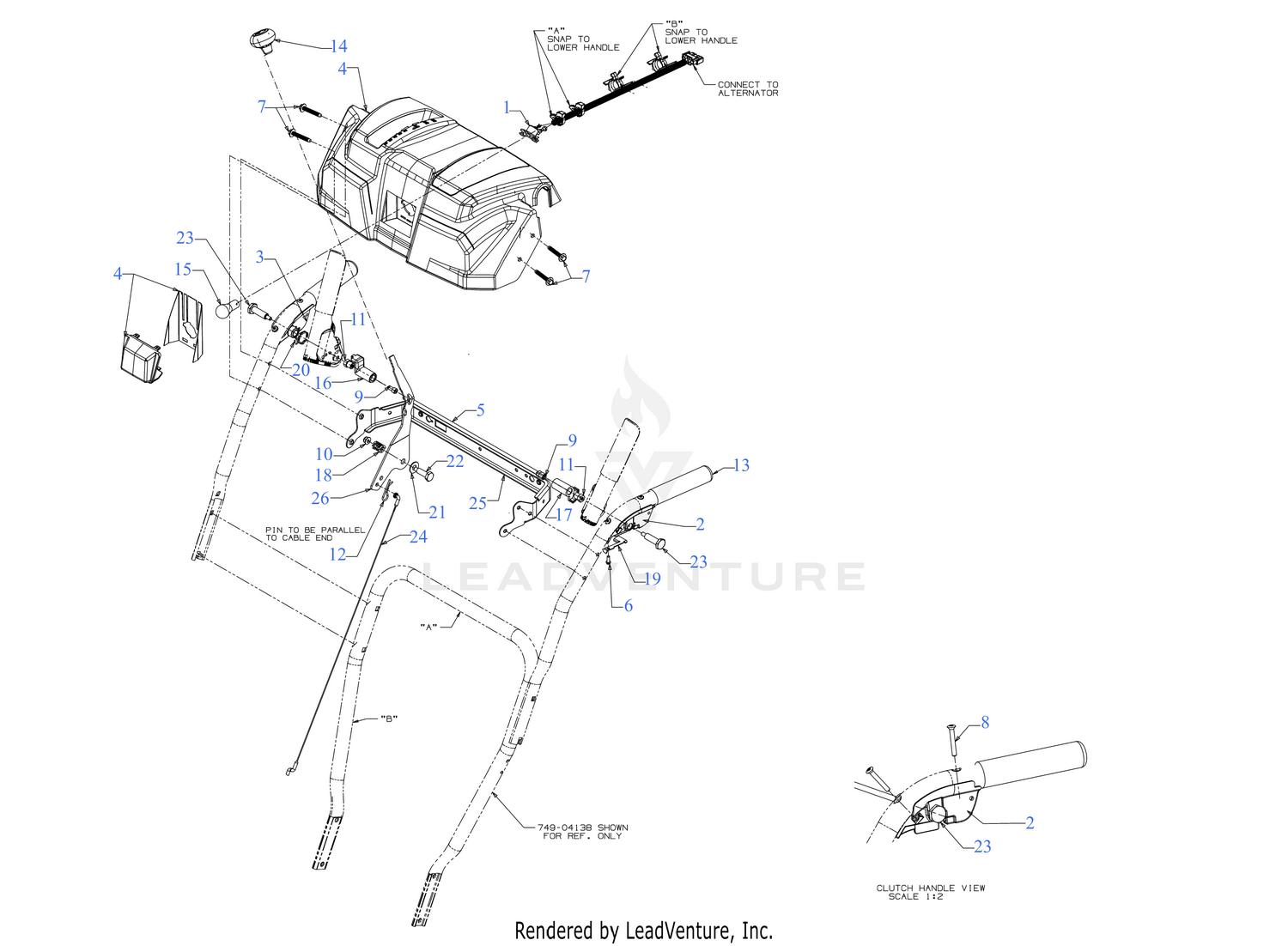

| Ref | Part Number | Description |
|---|
| 1 |
925-06927 |
LIGHT HARNESS Price: $23.70 |
| 2 |
631-04133A |
CLUTCH LOCK HANDLE ASSEMBLY (LH) Price: $13.42 |
| 3 |
631-04134B |
CLUTCH LOCK HANDLE ASSEMBLY (RH) Price: $13.42 |
| 4 |
931-05333C |
HANDLE PANEL(W/LIGHT) Price: $58.55 |
| 5 |
684-04250 |
PIVOT ROD Price: $11.00 |
| 6 |
710-04326 |
SCREW #8-16 x .50 Price: $3.37 |
| 7 |
710-04586 |
SCREW 1/4-20 x 1.625 Price: $6.07 |
| 8 |
710-1233 |
SCREW #10-24 x 1.375 Price: $3.95 |
| 9 |
710-3069 |
SCREW 1/4-20 x .50 Price: $4.08 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 11 |
712-04081A |
HEX NUT W/PATCH Price: $6.49 |
| 12 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 13 |
720-0274 |
GRIP Price: $9.99 |
| 14 |
720-04039 |
SHIFT KNOB Price: $9.09 |
| 15 |
925-1629 |
LAMP-12 VOLT Price: $9.70 |
| 16 |
731-04894D |
LOCK PLATE Price: $4.61 |
| 17 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 18 |
732-0193 |
COMPRESSION SPRING Price: $4.11 |
| 19 |
732-04219C |
CLUTCH SPRING Price: $3.70 |
| 20 |
732-04238B |
TORSION SPRING Price: $4.66 |
| 21 |
936-0267 |
FLAT WASHER .40X.88X.060 Price: $3.90 |
| 22 |
738-04125 |
SHOULDER SCREW Price: $4.08 |
| 23 |
738-04348 |
SHOULDER SCREW .437 x 1.345 1/4-20 Price: $3.14 |
| 24 |
946-04396A |
SPEED SELECTOR CABLE (PLASTIC) Price: $18.04 |
| 25 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET (POWDER BLACK) Price: $21.49 |
