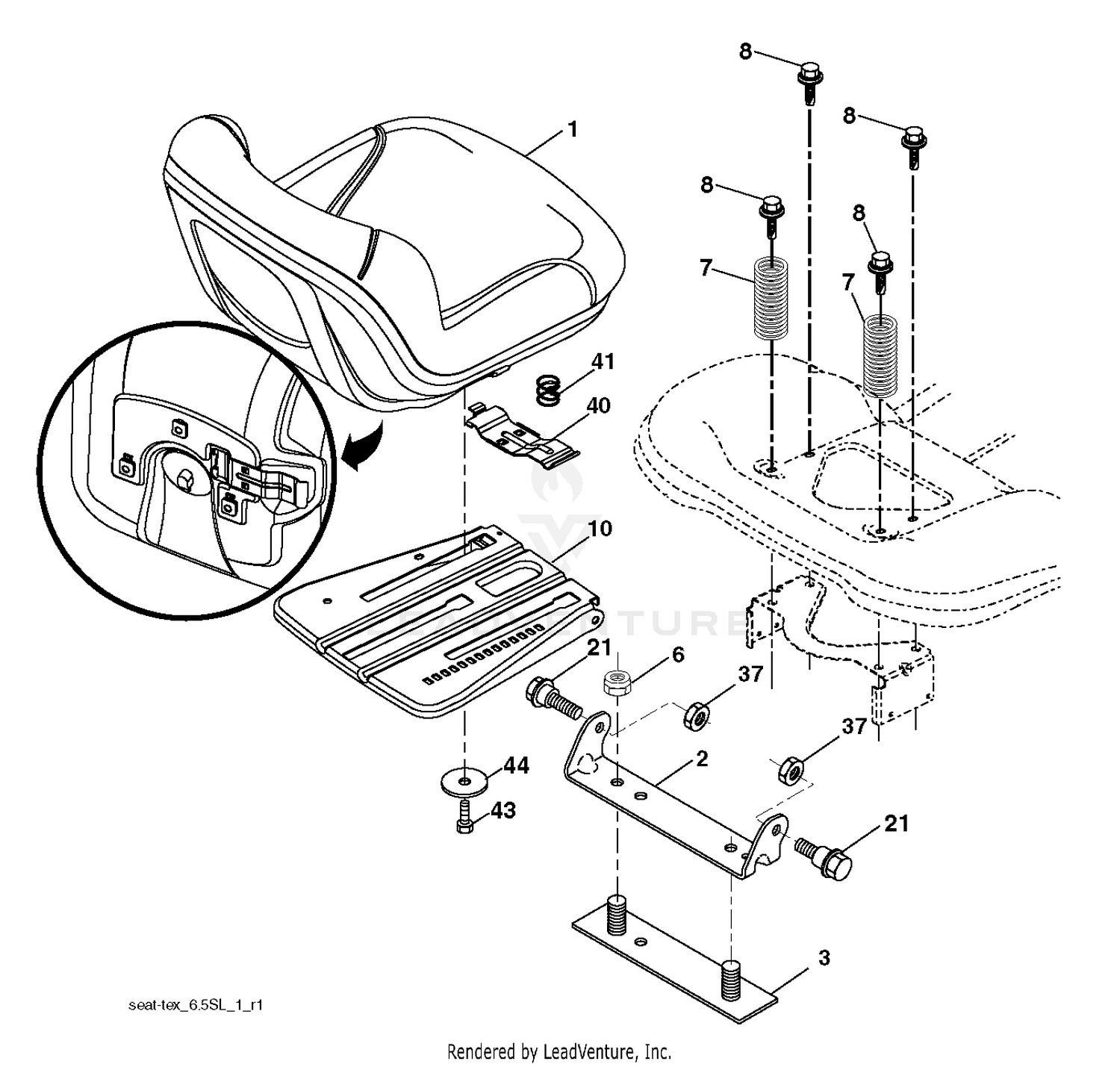

| Ref | Part Number | Description |
|---|
| 1 |
3274-70 |
SCREW-HSH Price: $9.50 |
| 1 |
532439819 |
SEAT.TH130.GREY.HUSQ.TEX Price: $209.99 |
| 2 |
353-727 |
BONNET-SPECIAL Price: $105.32 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
353-729 |
DETENT STUD Price: $179.48 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
353-733 |
SPACER-BONNET Price: $41.01 |
| 5 |
353-481 |
LIFT CHECK ASM Price: $338.44 |
| 6 |
237-54 |
O-RING Price: $1.97 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
353-306 |
WASHER-BACKUP Price: $9.12 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
353-305 |
O-RING Price: $10.91 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
353-303 |
WASHER-BACKUP Price: $9.06 |
| 10 |
353-302 |
O-RING Price: $10.13 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 12 |
353-851 |
BODY-RELIEF Price: $180.95 |
| 13 |
353-392 |
RING-PISTON Price: $13.94 |
| 14 |
353-531 |
POPPET AND RING ASM Price: $229.51 |
| 15 |
353-328 |
SHIM (.040) Price: $3.53 |
| 16 |
353-329 |
SHIM (.020) Price: $2.10 |
| 17 |
353-330 |
SHIM (.010) Price: $3.60 |
| 18 |
353-398 |
SPRING This part replaces 353-855. Price: $30.09 |
| 19 |
353-334 |
CAP-RELIEF Price: $55.48 |
| 20 |
3274-52 |
SCREW-HSH Price: $3.19 |
| 21 |
353-575 |
BOOT Price: $58.68 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
93-3651 |
RETAINER-BOOT Price: $31.38 |
| 24 |
92-2547 |
SEAL-RETAINER Price: $15.10 |
| 25 |
92-2546 |
WIPER-SEAL Price: $4.56 |
| 26 |
353-957 |
CUP-SEAL Price: $16.26 |
| 27 |
353-301 |
CHECK-LIFT, POPPET Price: $23.96 |
| 28 |
353-304 |
SPRING-CHECK, LIFT Price: $25.31 |
| 29 |
353-331 |
O-RING Price: $16.66 |
| 30 |
353-760 |
RELIEF-BODY Price: $239.97 |
| 31 |
353-758 |
O-RING Price: $18.26 |
| 32 |
353-952 |
SEAL-BACK-UP Price: $7.89 |
| 33 |
3217-7 |
NUT-HEX Price: $0.28 |
| 34 |
353-772 |
COVER-LEFT Price: $415.33 |
| 35 |
353-721 |
PLUG Price: $44.12 |
| 40 |
353-417 |
COLLAR-STOP Price: $10.31 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
105-7340 |
COIL ASM This part replaces 92-3048. Price: $267.51 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 42 |
353-780 |
DETENT ASM This part replaces 353-754. Price: $480.94 |
| 43 |
3274-15 |
SCREW-HSH Price: $0.42 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
353-763 |
CAP-ADJUSTMENT Price: $161.34 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
| 45 |
104-7727 |
SPRING-DETENT This part replaces 353-579. Price: $18.78 |
| 46 |
42-2680 |
RACE-BALL Price: $76.92 |
| 47 |
52-5880 |
BALL-DETENT Price: $4.60 |
| 48 |
354-29 |
PLATE-THRUST Price: $236.43 |
| 49 |
353-728 |
SLEEVE Price: $77.42 |
| 50 |
353-762 |
SPUD-OUT Price: $152.45 |
| 52 |
353-732 |
SLEEVE-DETENT Price: $113.02 |
| 53 |
38-0410 |
NUT-HEX Price: $5.77 |
| 54 |
83-1890 |
SWITCH-BALL Price: $63.08 |
