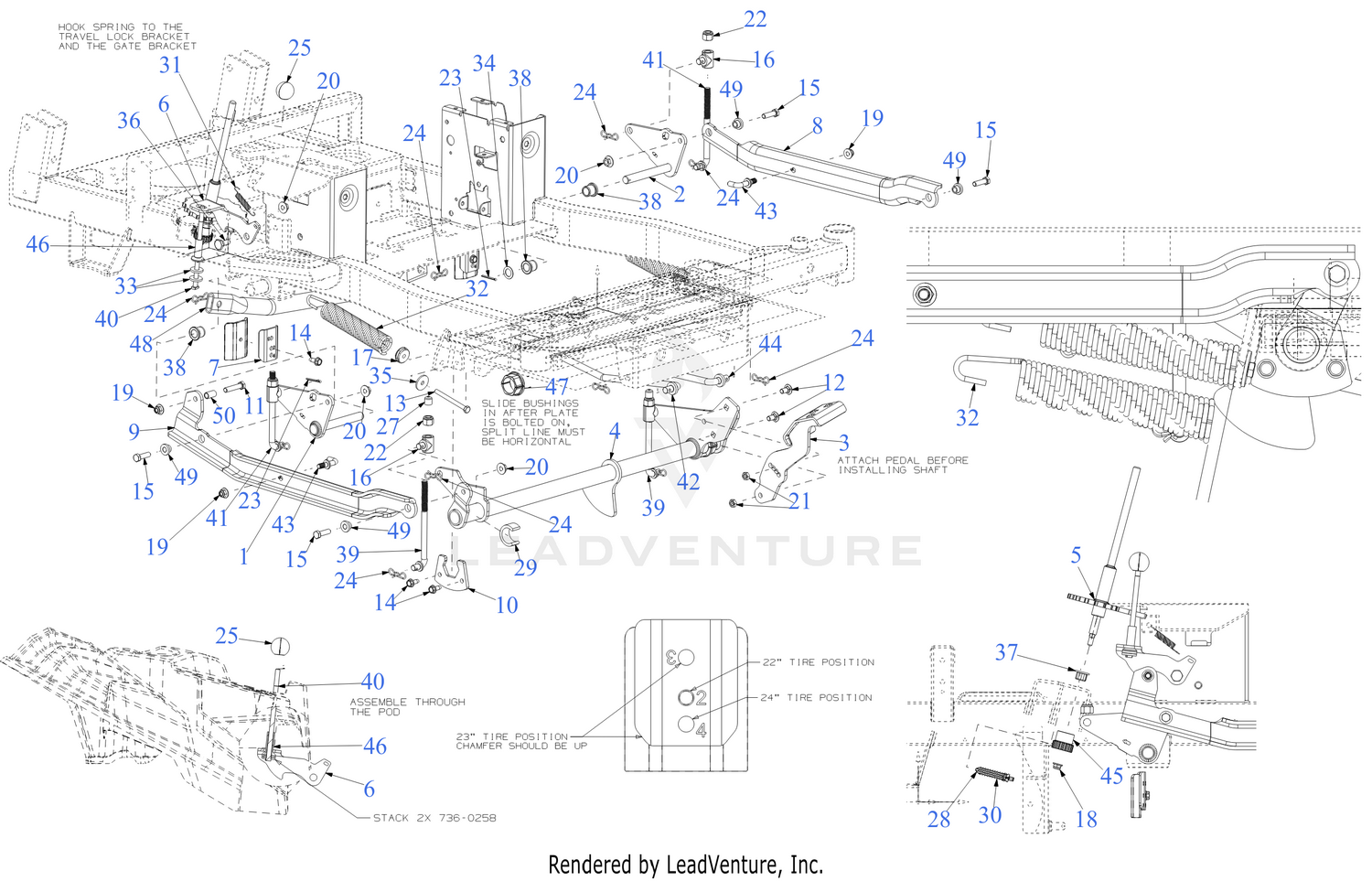

| Ref | Part Number | Description |
|---|
| 1 |
603E06379 |
BELLCRANK BRACKET (RH) Price: $39.72 |
| 2 |
603E06380 |
BELLCRANK BRACKET (LH) Price: $42.48 |
| 4 |
647E05756 |
LIFT TUBE (FRONT) Price: $136.73 |
| 5 |
647E05765A |
DECK HEIGHT ADJUSTMENT ROD This part replaces 647Z05765. Price: $68.89 |
| 6 |
703E19945 |
TRAVEL LOCK PLATE Price: $17.48 |
| 7 |
703E22844 |
UPSTOP BRACKET Price: $9.85 |
| 8 |
703E27894B |
LIFT LINK (LH) This part replaces 703E27894. Price: $51.26 |
| 9 |
703E27895B |
LIFT LINK (RH) This part replaces 703E27895. Price: $56.96 |
| 11 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 12 |
710-0389 |
CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 13 |
710-1207 |
SCREW 5/16-18 x 3.50 GR5 Price: $6.01 |
| 14 |
710-1260A |
SCREW 5/16-18 x .750 Price: $3.34 |
| 15 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 16 |
711-06143A |
LIFT ROD FERRULE Price: $11.98 |
| 17 |
711-09782 |
LIFT SPRING INSERT Price: $10.59 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04065 |
NUT Price: $3.68 |
| 20 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 21 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 22 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 23 |
714-0470 |
COTTER PIN Price: $3.90 |
| 24 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 25 |
720-05110 |
BALL KNOB Price: $19.57 |
| 27 |
726-05009 |
LIFT ROD END CAP Price: $3.70 |
| 28 |
731-16491A |
DETENT PLUNGER Price: $3.13 |
| 29 |
731-18771 |
LIFT TUBE SPACER Price: $3.95 |
| 30 |
932-0306A |
COMPRESSION SPRING .531 OD 1.75 LG Price: $7.69 |
| 31 |
732-05150A |
EXTENSION SPRING 2.675" Price: $3.70 |
| 32 |
732-07288A |
EXTENSION SPRING Price: $22.82 |
| 33 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 34 |
736-0337 |
FLAT WASHER Price: $3.66 |
| 35 |
736-0343 |
WASHER-5/16 x 1.25X 1.27 Price: $3.90 |
| 36 |
738-0380 |
SHOULDER SCREW Price: $7.34 |
| 37 |
741-04108 |
HEX FLANGE BEARING .506ID x .590LG Price: $5.20 |
| 38 |
741-05047 |
FLANGE BUSHING Price: $3.04 |
| 39 |
747-07490 |
DECK LIFT ROD 6.875" Price: $22.82 |
| 40 |
747-09150 |
TRAVEL LOCK ROD Price: $15.20 |
| 41 |
747-10030 |
DECK LIFT ROD 6.250" Price: $23.84 |
| 42 |
747-11733 |
DECK CONTROL ROD (RH) Price: $28.47 |
| 43 |
747-11741 |
LIFT SPRING MOUNTING ROD Price: $7.40 |
| 44 |
747-11745 |
DECK CONTROL ROD (LH) Price: $28.47 |
| 45 |
748-05824 |
DECK HEIGHT DETENT HUB Price: $8.34 |
| 46 |
748-06304 |
LOCK ROD SLEEVE SPACER Price: $3.04 |
| 47 |
748-06934 |
HEX FLANGE BEARING Price: $11.38 |
| 48 |
749E07974 |
DECK STABILIZER TUBE Price: $45.68 |
| 49 |
750-11099 |
SHOULDER SPACER 0.39x0.575x0.312 Price: $3.98 |
