| Ref | Part Number | Description |
|---|
| 1 |
165892 |

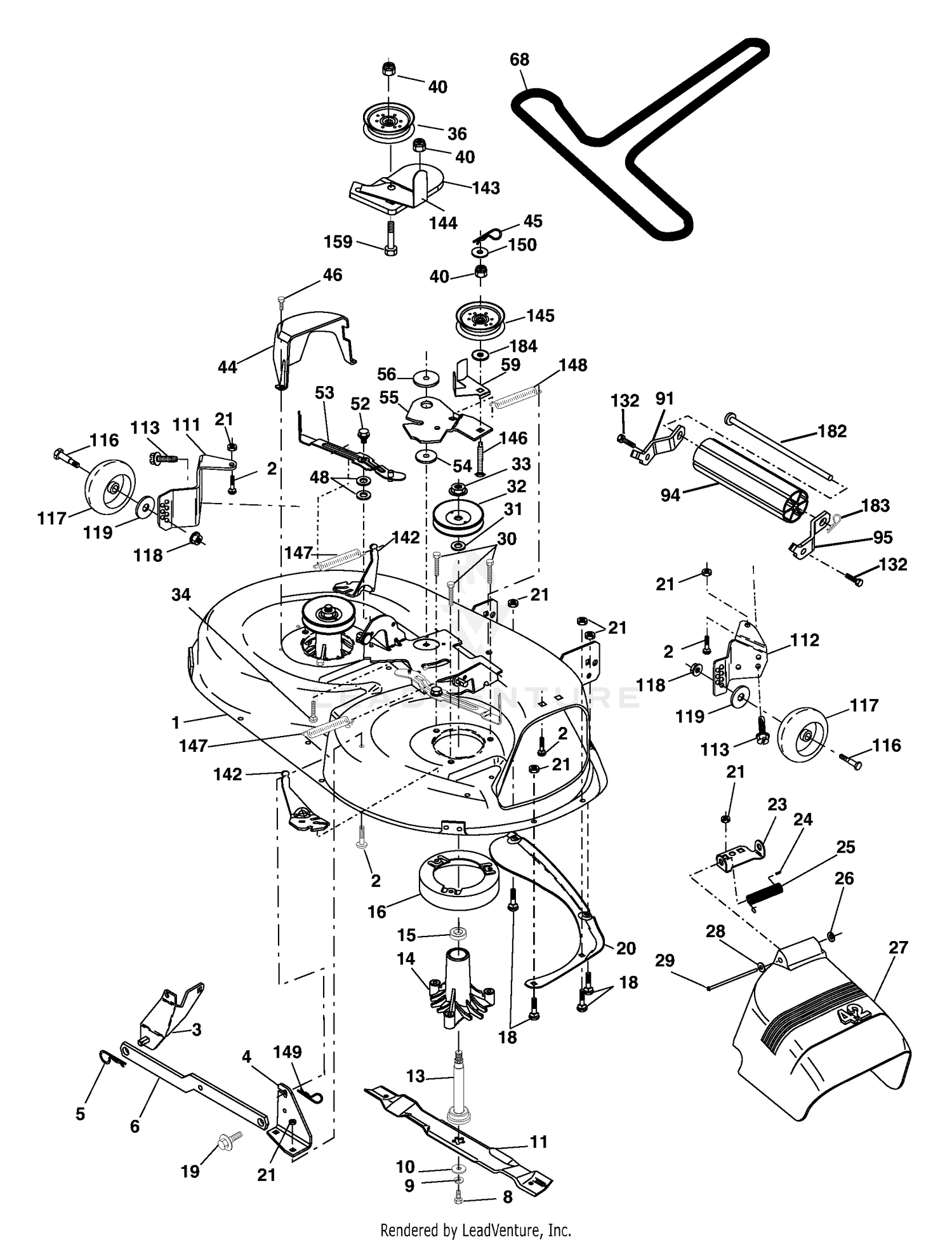

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 3 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 5 |
110-4100 |
HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
62-7650 |
GASKET Price: $4.28 |
| 7 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 10 |
110-4104 |
HOSE-FUEL This part replaces 93-2042. Price: $8.95 |
| 11 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 12 |
110-4106 |
HOSE-FUEL This part replaces 104-0077. Price: $30.05 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
354-20 |
FITTING-TEE Price: $12.61 |
| 16 |
110-4103 |
HOSE-FUEL This part replaces 98-9338. Price: $18.01 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
110-4109 |
HOSE-FUEL This part replaces 104-0076. Price: $11.24 |
| 18 |
66-8121 |
STANDPIPE Price: $23.18 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 22 |
105-7933 |
TANK-FUEL Price: $275.80 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
63-8410 |
WASHER Price: $1.76 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
2412-146 |
CLAMP-HOSE Price: $1.46 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
240-9 |
GROMMET Price: $3.25 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
110-4124 |
HOSE-FUEL This part replaces 47-7430. Price: $11.57 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 35 |
104-9339 |
BRACKET-PUMP, FUEL Price: $8.04 |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 91 |
180532 |
Bracket Roller Nose LH Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
180533 |
Bracket Roller Nose RH Price: Call Us |
| 111 |
179292 |
Bracket Asm. Whl Ga. LH Price: Call Us |
| 112 |
179293 |
Bracket Asm Whl Ga. RH Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 132 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
192861 |
Head Asm Cable Clutch Price: Call Us |
| 130794 |
Mandrel |
Assembly Price: Call Us 130794 |
