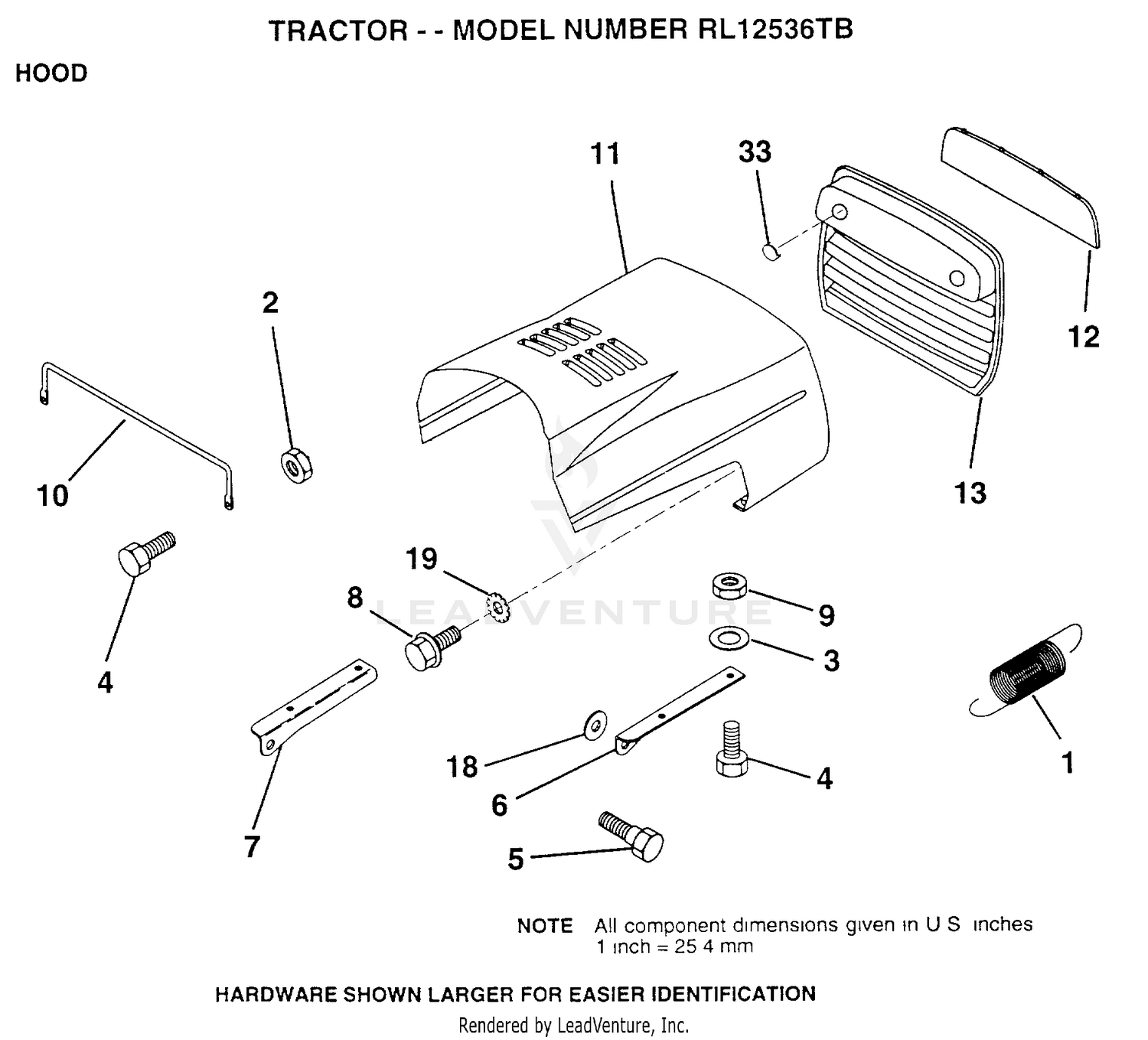

| Ref | Part Number | Description |
|---|
| 1 |
124657X |
EXT SPRING Price: Call Us |
| 1 |
92-9200 |
COVER Price: $276.63 |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 3 |
19091416 |
WASHER Price: Call Us |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 4 |
74780412 |
SUB= 74780414 Price: Call Us |
| 5 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
122549X |
BRKT HOOD RH Price: Call Us |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 7 |
122548X |
BRKT HOOD LH Price: Call Us |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 8 |
17521312 |
SCREW SLTD HXHD Price: Call Us |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 9 |
73800400 |
NUT Price: Call Us |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 11 |
132918X505 |
HOOD Price: Call Us |
| 12 |
122035X |
LENS Price: Call Us |
| 13 |
127029X |
GRILL Price: Call Us |
| 14 |
110-0838 |
DELUXE SEAT ASM Price: $1,941.99 |
| 15 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 17 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 18 |
19111116 |
WASHER Price: Call Us |
| 19 |
11030400 |
LOCKWASHER GT Price: Call Us |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 22 |
32128-21 |
NUT-HF Price: $0.39 |
| 23 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 30 |
58-1580-03 |
FRAME-SEAT Price: $402.10 |
| 31 |
58-9830-03 |
PLATE-SEAT Price: $355.56 |
| 34 |
2412-133 |
CLAMP-R Price: $3.19 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
71-4040 |
HYD FILLER ASM Price: $69.67 |
| 37 |
58-6820 |
GASKET Price: $13.28 |
