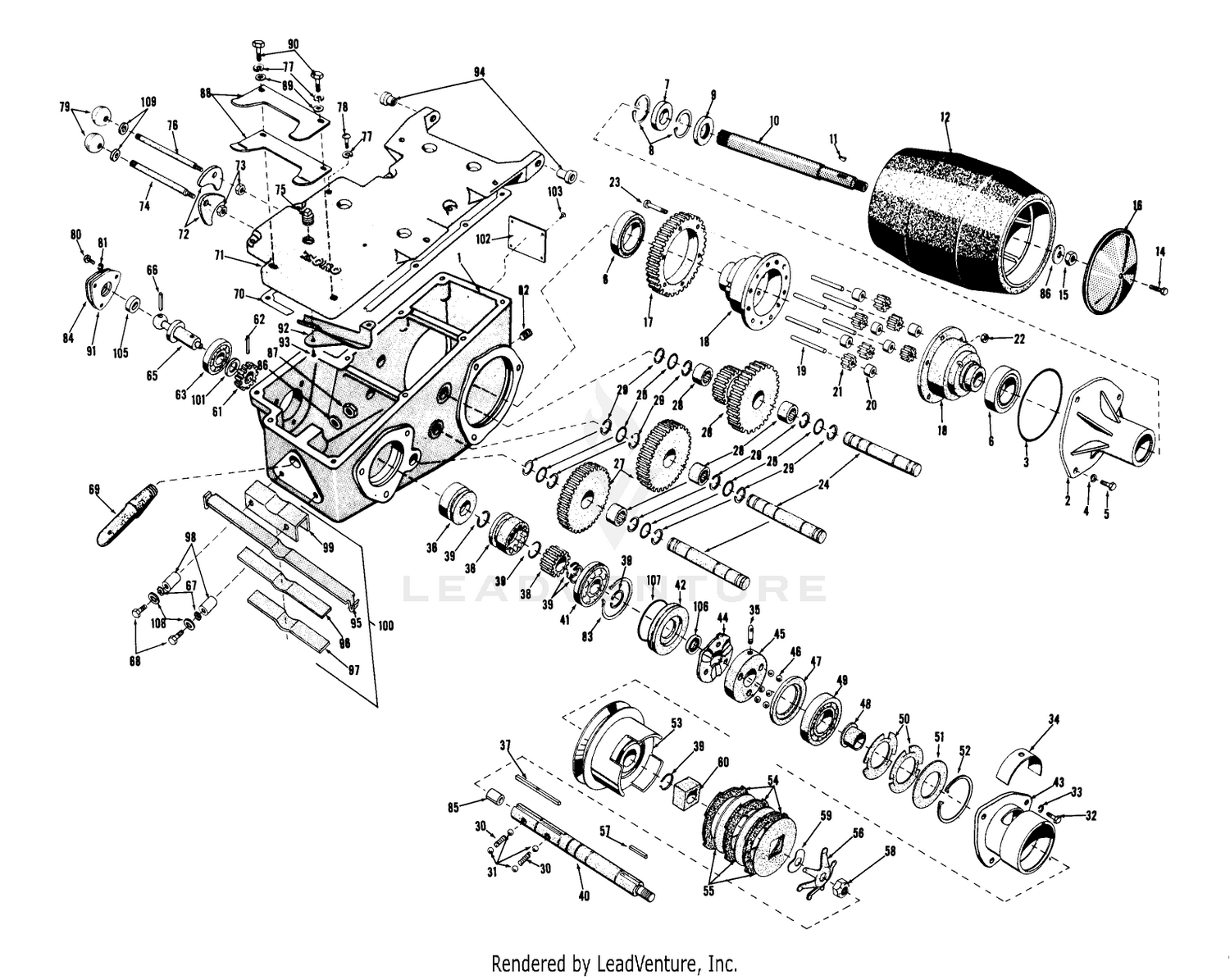

| Ref | Part Number | Description |
|---|
| 1 |
3-4371 |
CASE ASM Price: $1,438.03 |
| 2 |
3-0596 |
HOUSING-AXLE Price: $308.03 |
| 3 |
237-33 |
O-RING Price: $11.26 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
322-4 |
SCREW-HH Price: $0.35 |
| 6 |
251-138 |
BEARING-BALL Price: $65.70 |
| 7 |
251-137 |
BEARING-BALL Price: $74.53 |
| 8 |
32120-62 |
RING-RETAINING Price: $4.29 |
| 9 |
253-82 |
SEAL-OIL Price: $28.34 |
| 10 |
105-5381 |
AXLE This part replaces 3-8392. Price: $249.43 |
| 11 |
3257-23 |
KEY-WOODRUFF Price: $6.79 |
| 12 |
3-0492 |
ROLLER ASM Price: $521.02 |
| 14 |
32108-51 |
DISCONTINUED Price: Call Us |
| 15 |
3296-19 |
NUT-HEX Price: $0.65 |
| 16 |
3-8347 |
CAP-HUB Price: $67.73 |
| 17 |
3-0454 |
GEAR-RING Price: $291.29 |
| 18 |
3-0450 |
CASE-DIFFERENTIAL Price: $131.21 |
| 19 |
3-0452 |
SHAFT-GEAR, DIFFERENTIAL Price: $9.70 |
| 20 |
3-0453 |
SPACER-GEAR, DIFFERENTIAL Price: $11.54 |
| 21 |
105-5380 |
GEAR-DIFFERENTIAL This part replaces 3-3858. Price: $38.93 |
| 22 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 23 |
3273-23 |
SCREW-HH Price: $8.35 |
| 24 |
3-0455 |
SHAFT-IDLER Price: $54.87 |
| 25 |
237-22 |
O-RING Price: $2.43 |
| 26 |
3-0457 |
GEAR-INTERMEDIATE Price: $344.97 |
| 27 |
3-0456 |
GEAR-IDLER Price: $72.91 |
| 28 |
252-49 |
BEARING-NEEDLE Price: $35.05 |
| 29 |
32120-63 |
RING-RETAINING Price: $0.26 |
| 30 |
2412-39 |
CLAMP-R This part replaces 3-0460. Price: $1.70 |
| 31 |
255-5 |
BALL-STEEL Price: $1.86 |
| 32 |
321-3 |
SCREW-HH Price: $0.28 |
| 33 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 34 |
3-0476 |
Clutch Cover Price: Call Us |
| 35 |
3-0475 |
CLUTCH PIN Price: $20.13 |
| 36 |
3-0465 |
DISCONTINUED Price: Call Us |
| 38 |
88-8700 |
GEAR-PINION This part replaces 3-0461. Price: $56.31 |
| 39 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 40 |
3-0458 |
DISCONTINUED Price: Call Us |
| 41 |
251-139 |
BEARING-BALL Price: $104.98 |
| 42 |
3-1545 |
SPACER-CLUTCH Price: $53.38 |
| 43 |
5-1423 |
HOUSING-CLUTCH This part replaces 3-0474. Price: $170.16 |
| 44 |
3-0467 |
DISCONTINUED Price: Call Us |
| 45 |
3-0470 |
DISCONTINUED Price: Call Us |
| 46 |
255-8 |
BALL-STEEL Price: $4.60 |
| 47 |
3-0471 |
PLATE-BACKING, CLUTCH Price: $45.90 |
| 48 |
3-4066 |
BUSHING This part replaces 256-34. Price: $2.78 |
| 49 |
251-140 |
BEARING-BALL Price: $121.27 |
| 50 |
3290-264 |
WASHER-WAVE Price: $2.46 |
| 51 |
3-0481 |
WASHER-CLUTCH Price: $5.02 |
| 52 |
32120-65 |
RING-SNAP Price: $1.97 |
| 53 |
105-5368 |
PULLEY ASM This part replaces 3-0480. Price: $240.44 |
| 54 |
99-5902 |
DISC-CLUTCH This part replaces 3-0514. Price: $17.07 |
| 55 |
3-0477 |
PLATE-CLUTCH Price: $29.40 |
| 56 |
3-0478 |
SPRING-CLUTCH Price: $37.47 |
| 57 |
3-6801 |
KEY Price: $8.50 |
| 58 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 59 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 60 |
3-0472 |
DRIVER-CLUTCH Price: $37.24 |
| 61 |
3-0592 |
CLUTCH-REEL, MALE Price: $41.36 |
| 62 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 63 |
251-163 |
BEARING-BALL Price: $149.58 |
| 65 |
2-4779 |
UNIVERSAL DRIVER AND PIN ASM Price: $140.36 |
| 66 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 67 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 68 |
322-8 |
SCREW-HH Price: $1.26 |
| 69 |
95-1810 |
PIVOT-YOKE This part replaces 3-2154. Price: $136.98 |
| 70 |
3-0485 |
GASKET-TRANSMISSION Price: $16.87 |
| 71 |
98-3412 |
COVER ASM This part replaces 3-1775. Price: $635.34 |
| 72 |
3-0488 |
FORK-SHIFT Price: $11.69 |
| 73 |
32146-4 |
NUT-LOCK, INSERT Price: $3.39 |
| 74 |
3-0486 |
ROD-CLUTCH, REEL Price: $41.32 |
| 75 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 76 |
3-0487 |
DISCONTINUED Price: Call Us |
| 77 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 78 |
3258-19 |
SCREW Price: $0.42 |
| 79 |
3-0631 |
BALL-GRIP Price: $10.76 |
| 80 |
3251-1 |
SCREW-PPH Price: $8.48 |
| 81 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 82 |
285-11 |
Pipe Plug Price: Call Us |
| 83 |
251-149 |
RING-SNAP Price: $6.93 |
| 84 |
95-1807 |
COVER-BEARING This part replaces 3-2068. Price: $35.00 |
| 85 |
256-112 |
BUSHING Price: $1.29 |
| 86 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 87 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 88 |
3-1830 |
SPRING-FLAT Price: $108.43 |
| 89 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 90 |
321-11 |
SCREW-HH Price: $0.36 |
| 91 |
3-2072 |
SEAL-BEARING Price: $6.74 |
| 92 |
3-1716 |
PAN-DRIP, OIL Price: $20.53 |
| 93 |
3295-2 |
RIVET-TUBULAR Price: $0.68 |
| 94 |
3-1776 |
BUSHING Price: $15.88 |
| 95 |
3-2552 |
Main Leaf Price: Call Us |
| 96 |
3-2078 |
Center Leaf Price: Call Us |
| 97 |
3-2075 |
LEAF-LOWER Price: $66.27 |
| 98 |
3-2074 |
SPACER Price: $9.42 |
| 99 |
3-2077 |
Spring Bracket Price: Call Us |
| 100 |
3290-212 |
WASHER-SPRING This part replaces 3-2554. Price: $1.56 |
| 101 |
3-4494 |
WASHER-THRUST Price: $23.81 |
| 102 |
Z-37-7 |
Serial No. Plate Price: Call Us |
| 103 |
3259-13 |
DISCONTINUED Price: Call Us |
| 105 |
253-59 |
SEAL-OIL This part replaces 253-89. Price: $21.77 |
| 106 |
253-83 |
SEAL-OIL Price: $7.87 |
| 107 |
237-38 |
O-RING Price: $1.94 |
| 108 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
