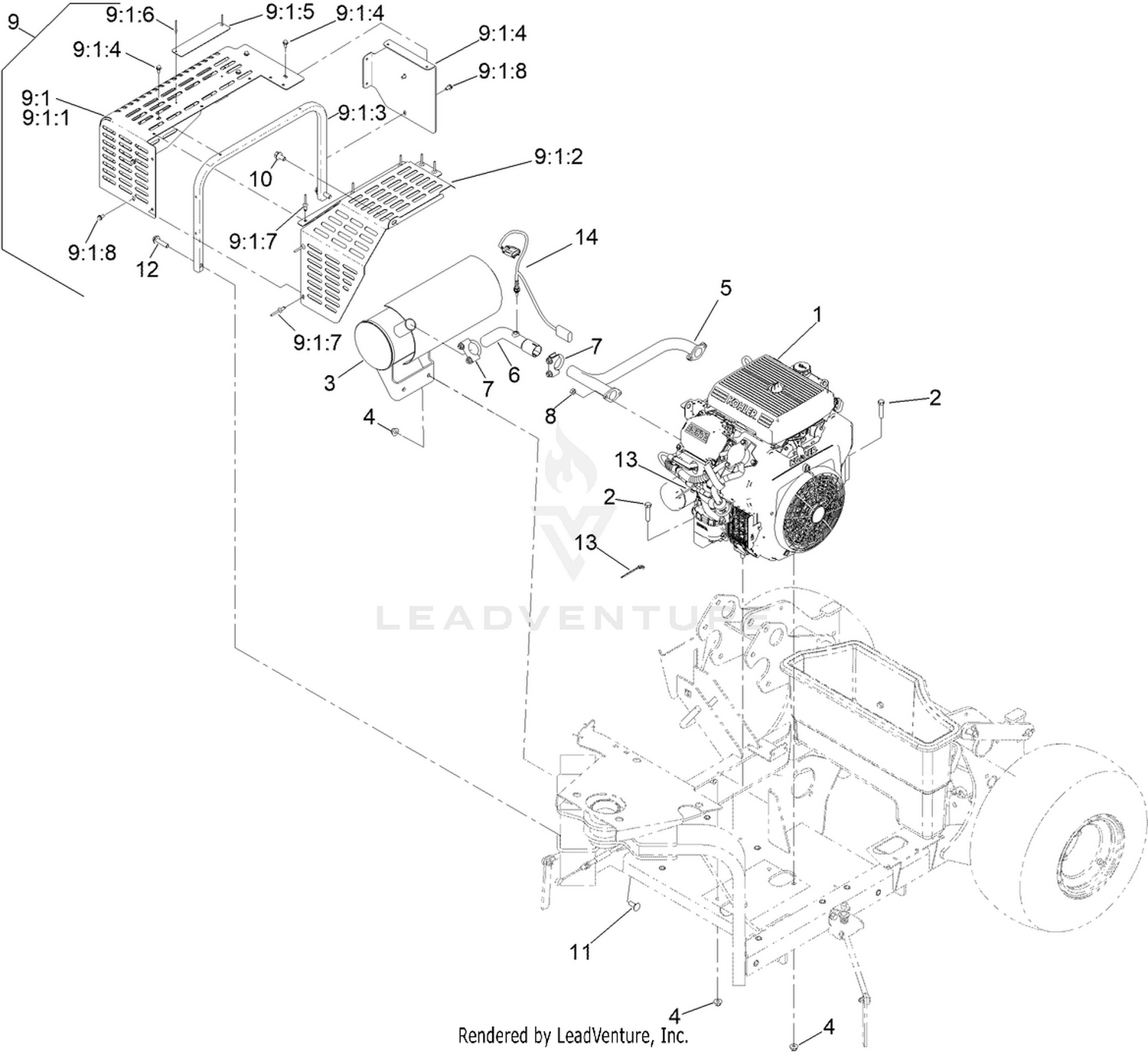

Engine and Muffler Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 147-9389 | ENGINE Price: Call Us |
| 2 | 323-9 | SCREW-HH Price: $1.29 |
| 3 | 139-8763 | MUFFLER - EXHAUST Price: Call Us |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 106-8858 | MANIFOLD-EXHAUST Price: $108.43 |
| 6 | 161-6962 | TUBE-ELBOW, EXHAUST Price: Call Us |
| 7 | 104-4090 | CLAMP-MUFFLER Price: $6.00 |
| 8 | 33014-00 | NUT-HEX Price: $0.25 |
| 9 | 107-7546SP | SHIELD ASM Price: $667.32 |
| 10 | 3234-1 | SCREW-HHF Price: $1.62 |
| 11 | 3231-2 | BOLT-CARR Price: $0.81 |
| 12 | 3234-18 | SCREW-HHF Price: $0.87 |
| 13 | 3290-381 | TIE-CABLE Price: $0.89 |
