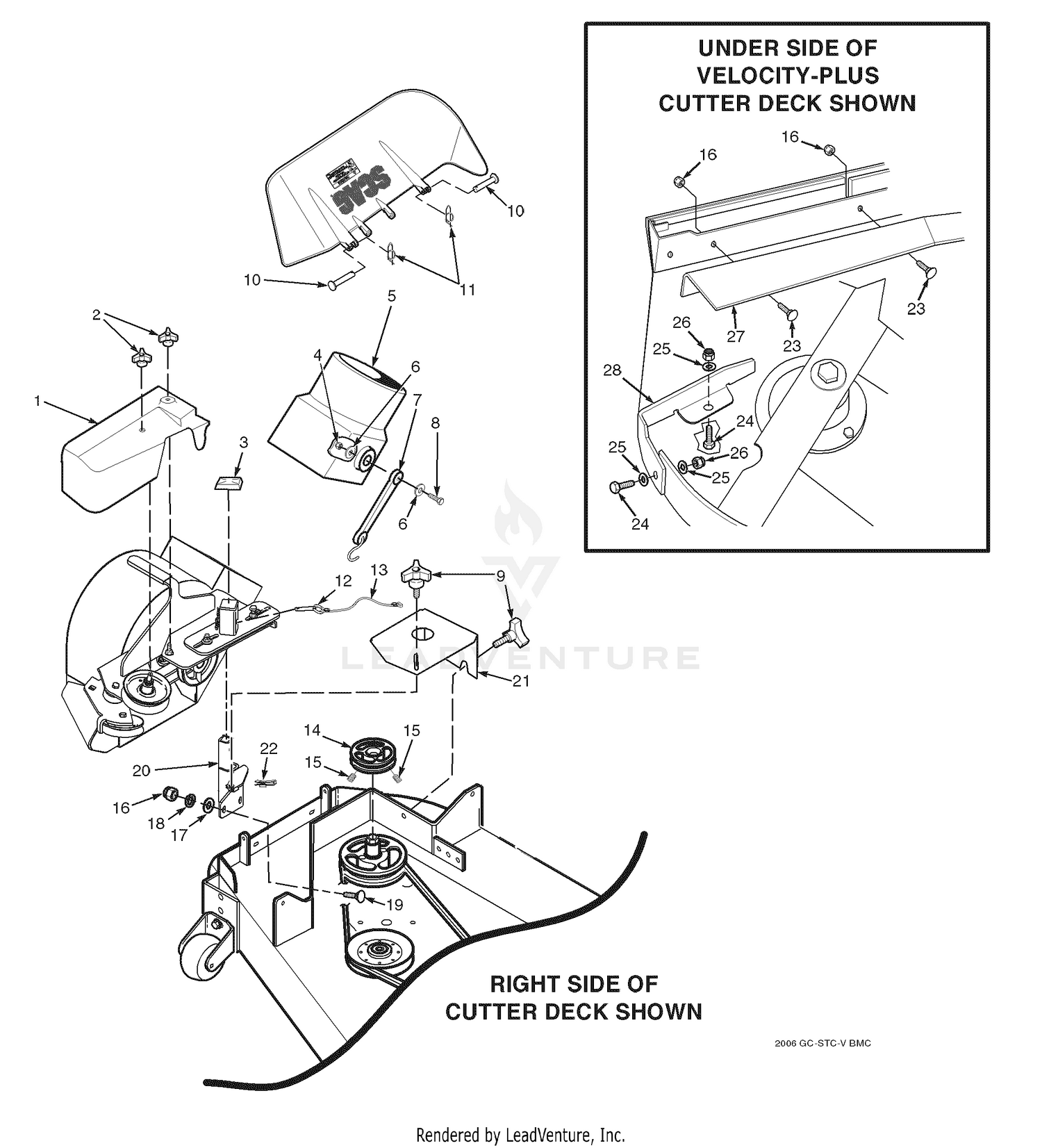

| Ref | Part Number | Description |
|---|
| 1 |
483224 |
Belt Cover, GC-STC Price: Call Us |
| 2 |
04029-04 |
Wingnut, Plastic 3/8" Small Price: Call Us |
| 3 |
483223 |
Cap, Square Vinyl Price: Call Us |
| 4 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 6 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 7 |
48137-04 |
Rubber Strap 7-3/4" Price: Call Us |
| 8 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 9 |
481625-01 |
Knob W/Stud, 3/8-16 x 1-1/4" Price: Call Us |
| 10 |
04064-15 |
Clevis Pin, 5/16 x 1-1/2" Price: Call Us |
| 11 |
04069-03 |
Pin, Rue Cotter 5/16 Dia. Price: Call Us |
| 12 |
04067-07 |
Pin, Ring 1/2 x 2-1/4" Price: Call Us |
| 13 |
481547 |
Lanyard Price: Call Us |
| 14 |
482587 |
Pulley, 4.0" Dia. 1.125 Bore Price: Call Us |
| 15 |
04012-04 |
Setscrew, 5/16-18 x 3/8" Price: Call Us |
| 16 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 17 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 18 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 19 |
04003-11 |
Bolt, Carr. 3/8-16 x 1-1/4" Grade 5 Price: Call Us |
| 20 |
461894 |
Mounting Post Weldment, Blower Price: Call Us |
| 21 |
462415 |
Belt Cover Assembly, GC-STC-48V w/Cap This part replaces 424326. Price: Call Us |
| 22 |
04110-03 |
U-Nut Price: Call Us |
| 23 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 24 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 25 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 26 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 27 |
424401 |
Baffle, Front 48" Deck Price: Call Us |
| 28 |
424683 |
Baffle, Turbo 48" Deck This part replaces 424210. Price: Call Us |
| 424402 |
Baffle, |
Front 52" Deck Price: Call Us 424402 |
| 462416 |
Belt |
Cover Assembly, GC-STC-52V w/Cap This part replaces 424327. Price: Call Us 462416 |
