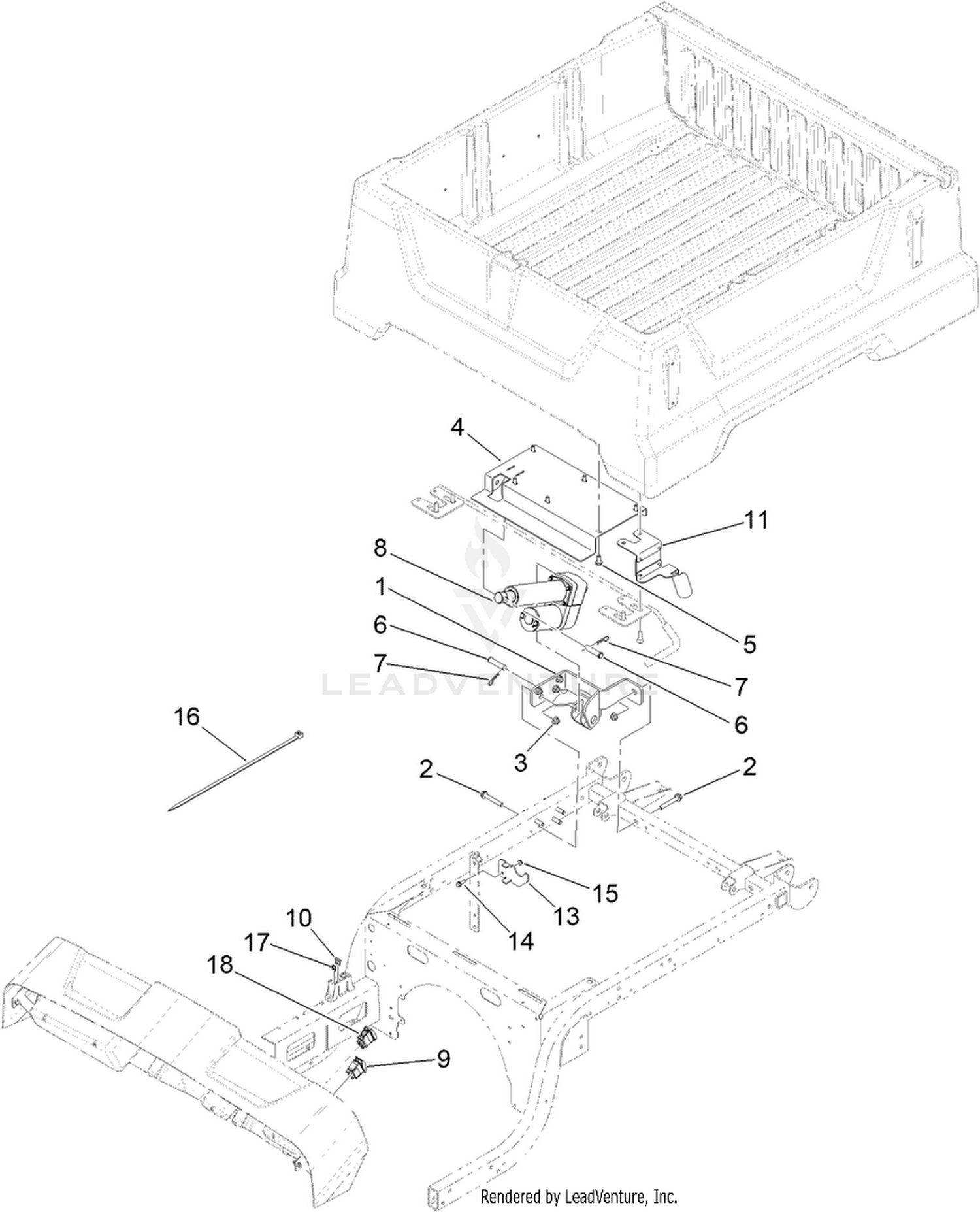

48V Electric Lift Kit Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-9510-03 | BRACKET-LIFT Price: $61.67 |
| 2 | 3234-39 | SCREW-HHF Price: $1.09 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 136-9508-03 | MOUNT-LIFT Price: $98.87 |
| 5 | 3234-5 | SCREW-HHF Price: $0.42 |
| 6 | 283-5 | PIN-CLEVIS Price: $11.99 |
| 7 | 3290-467 | PIN-HAIR Price: $0.27 |
| 8 | 140-4837 | ACTUATOR-48V Price: $787.42 |
| 9 | 107-0748 | SWITCH-ROCKER Price: $61.17 |
| 10 | 117-4725 | FUSE-BLADE, 15A Price: $20.97 |
| 11 | 133-7114-03 | BRACKET-LATCH Price: $88.55 |
| 13 | 133-3093-03 | BRACKET-STOP, ACTUATOR Price: $15.59 |
| 14 | 3234-4 | SCREW-HHF Price: $0.50 |
| 15 | 104-7201 | NUT-HF Price: $0.69 |
| 16 | 3290-379 | TIE-CABLE Price: $0.31 |
| 17 | 121-8881 | FUSE-MINI BLADE, 15 AMP Price: $4.37 |
