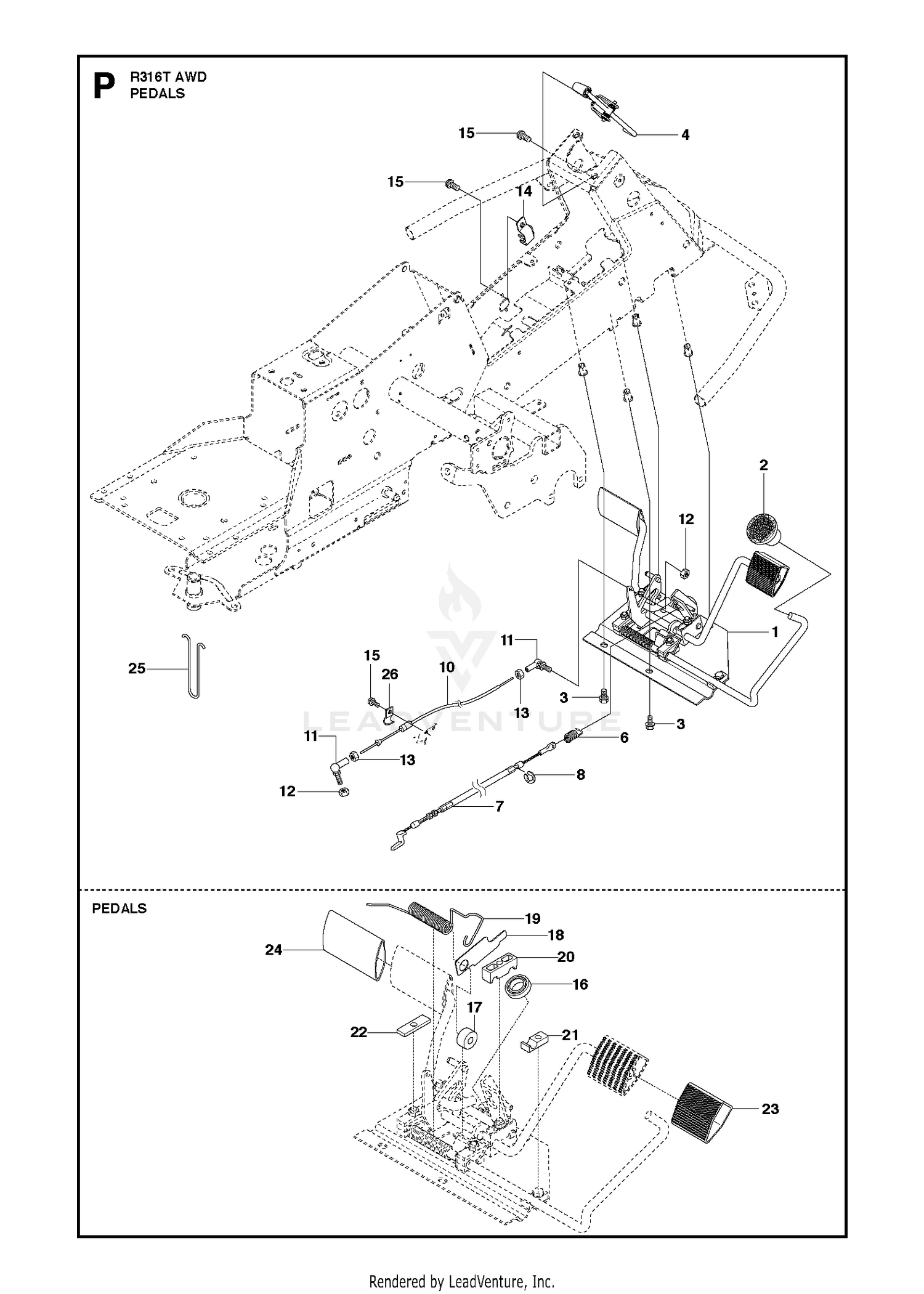

| Ref | Part Number | Description |
|---|
| 1 |
105-0418-03 |
ARM-STEERING Price: $476.75 |
| 1 |
583951401 |
PEDAL PLATE ASSY HYDROSTATIC K This part replaces 544126001. Price: $139.99 |
| 2 |
323-29 |
SCREW-HH Price: $0.42 |
| 2 |
586727401 |
KNOB, THREADED This part replaces 535473701. Price: $9.99 |
| 3 |
105-4326 |
SCREW-HH, LH Price: $11.60 |
| 3 |
506570104 |
BOLT Price: $4.99 |
| 4 |
544403101 |
BRAKE LEVER ASSY Price: $19.99 |
| 6 |
506946301 |
SPRING Price: $7.99 |
| 7 |
105-0457 |
PLATE-FRICTION Price: $28.64 |
| 7 |
576712101 |
BRAKE WIRE Price: $32.99 |
| 8 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 8 |
735310920 |
E-RING 5 Price: $3.99 |
| 9 |
114-4693-03 |
MOUNT-STEERING Price: $149.76 |
| 10 |
136-8506 |
DECAL-DANGER Price: $7.33 |
| 10 |
574411202 |
CONTROL CABLE Price: $69.99 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
578776801 |
CONNECTOR, BALL JOINT This part replaces 506557301. Price: $9.99 |
| 12 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 13 |
731231401 |
NUT Price: $1.99 |
| 14 |
3290-277 |
NUT-SPEED Price: $0.61 |
| 14 |
522430801 |
BRACKET Price: $5.99 |
| 15 |
725236461 |
SCREW Price: $2.99 |
| 15 |
83-0810 |
COVER-STEERING Price: $110.46 |
| 16 |
325-6 |
SCREW-HH Price: $1.42 |
| 16 |
738210204 |
BALL BEARING 6002-2RS1 Price: $7.99 |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
535459901 |
ROLLER This part replaces 535480201. Price: $15.99 |
| 18 |
47-2890 |
BUSHING Price: $3.19 |
| 18 |
535459601 |
PLATE This part replaces 535480601. Price: $6.99 |
| 19 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 19 |
535459501 |
SPRING This part replaces 535480701. Price: $7.99 |
| 20 |
506506501 |
PEDAL SHAFT CLAMP This part replaces 535480801. Price: $6.99 |
| 21 |
506954101 |
SUPPORT This part replaces 535480901. Price: $5.99 |
| 22 |
133-0303 |
BOLT-SHOULDER Price: $37.52 |
| 22 |
506804101 |
PLATE This part replaces 535481001. Price: $5.99 |
| 23 |
586966401 |
PEDAL RUBBER This part replaces 535478801. Price: $14.99 |
| 24 |
586966402 |
PEDAL RUBBER L = 102MM This part replaces 535478802. Price: $14.99 |
| 25 |
506576402 |
CABLE HOLDER Price: $2.58 |
| 26 |
506566501 |
CLAMP Price: $2.99 |
