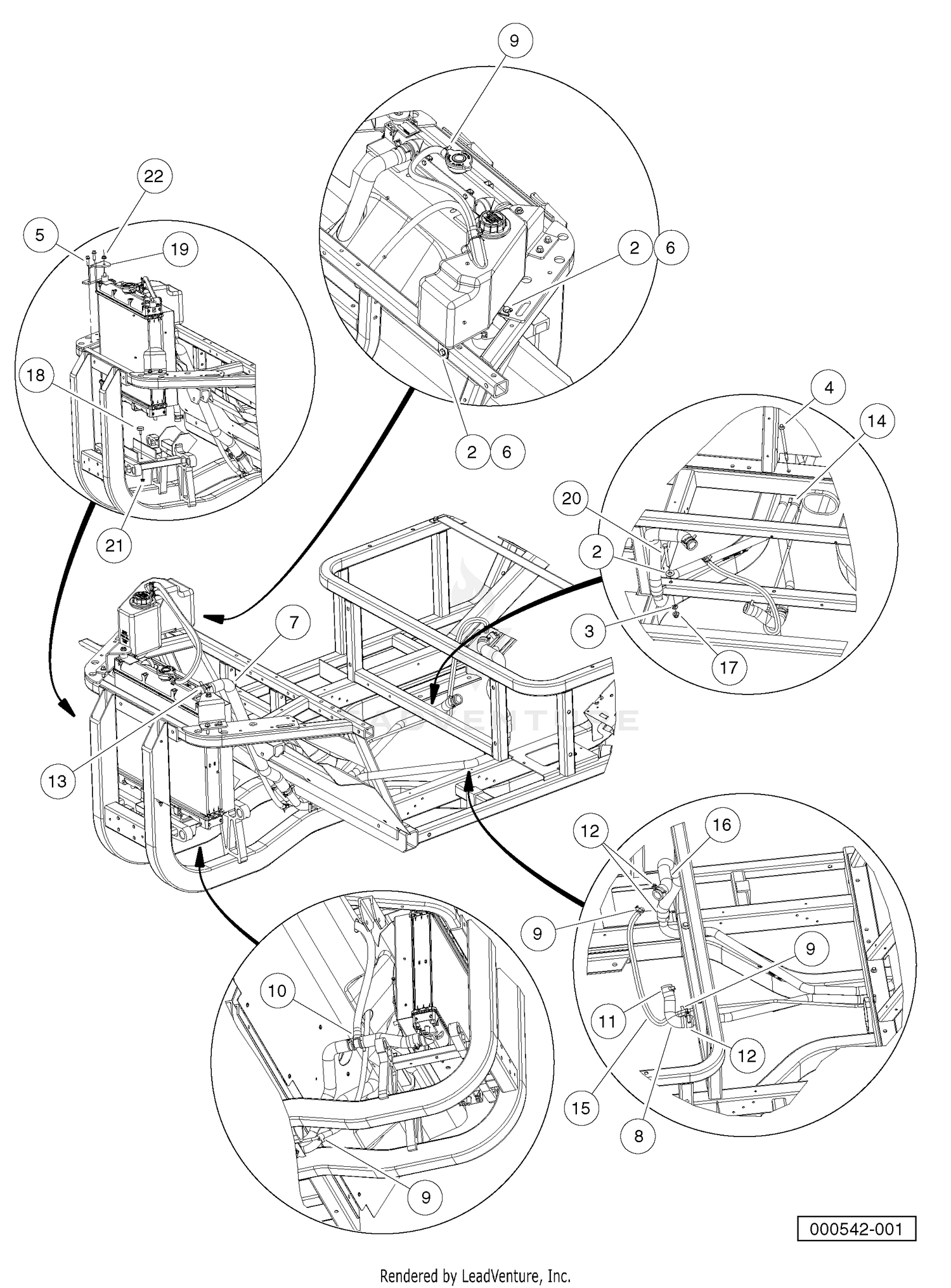

| Ref | Part Number | Description |
|---|
| 2 |
1011578 |
Washer, 5/16 Type B Flat Price: Call Us |
| 3 |
1015457 |
Spacer, 0.720" Price: Call Us |
| 4 |
102288901 |
Bolt-hex Fl, M8 X 1.25 X 135 Price: Call Us |
| 5 |
102289001 |
Screw, M8X1.25X30, Hex Price: Call Us |
| 6 |
102298720 |
M8-1.25x20 Taptite Price: Call Us |
| 7 |
102377501 |
Hose, Coolant Upper Rad Price: Call Us |
| 8 |
102377601 |
Hose, Coolant Lower Eng Price: Call Us |
| 9 |
102411204 |
Clamp, Hose, CTB 15mm Price: Call Us |
| 10 |
102411205 |
Clamp, Hose, CTB 22mm Price: Call Us |
| 11 |
102411206 |
Clamp, Hose, Ctb 30mm Price: Call Us |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 12 |
102411207 |
Clamp, Hose, Ctb 35mm Price: Call Us |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
102411208 |
Clamp, Hose, Ctb 38mm Price: Call Us |
| 13 |
76-0960 |
LINK-DRIVE Price: $345.26 |
| 14 |
102427601 |
Clamp, Bar Price: Call Us |
| 14 |
94-3662 |
SCREW-CAP, HH Price: $13.47 |
| 15 |
102435001 |
Hose, Vent Tube To Eng, Coolnt Price: Call Us |
| 16 |
102480501 |
Hose, Coolant, Return, Engine Price: Call Us |
| 17 |
102618601 |
Lock Nut, Flg M8 X 1.25 Nylon Price: Call Us |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 18 |
102684901 |
Bumper, 19mm Stud Price: Call Us |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 19 |
102946701 |
Bracket, Radiator Support Price: Call Us |
| 20 |
103423701 |
Bolt, M8 X 1.25 X 110 Price: Call Us |
| 21 |
96704176 |
Nut Flg, M6 X 1 Serrated Price: Call Us |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 24 |
76-0890 |
END COVER ASM Price: $981.97 |
