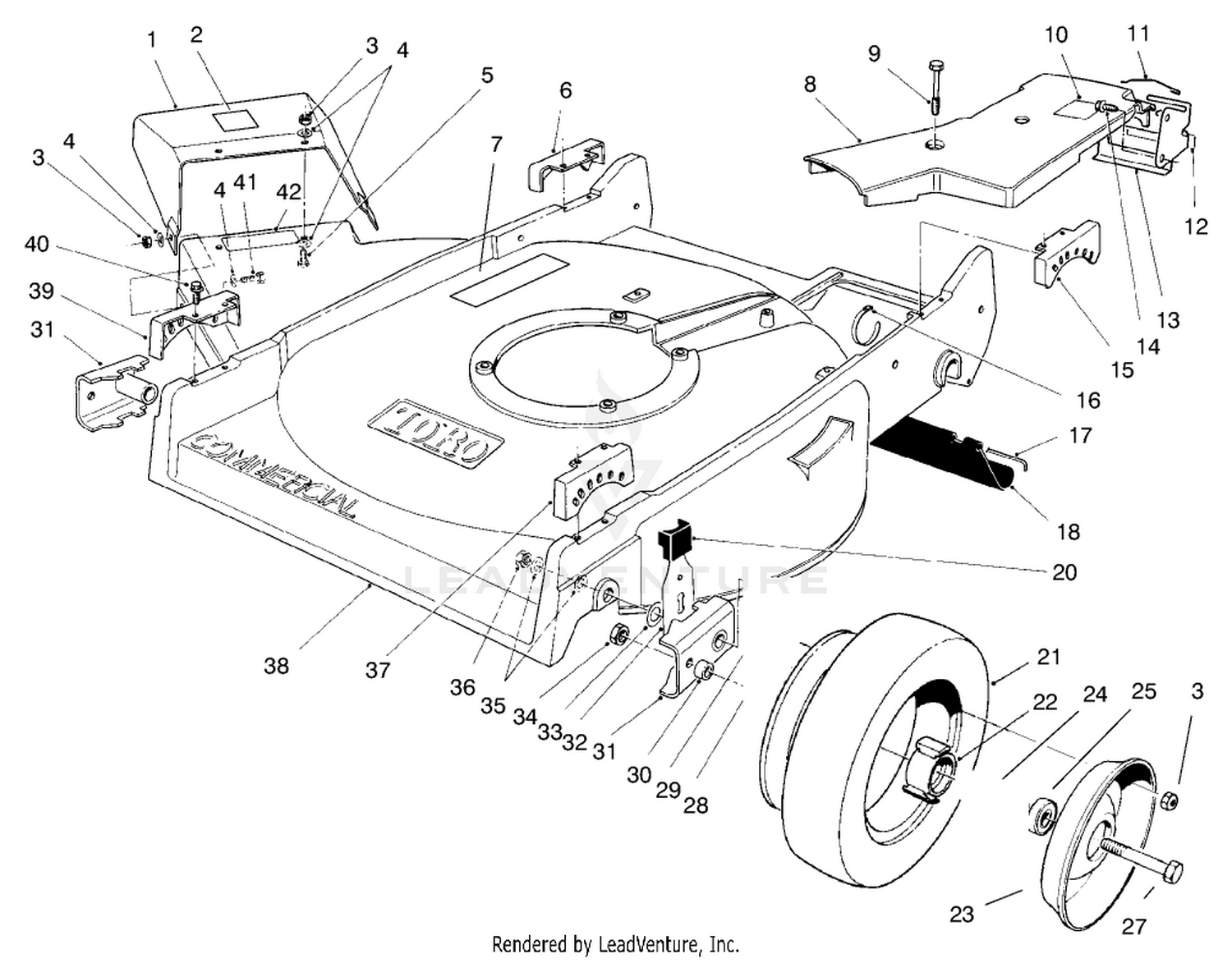

| Ref | Part Number | Description |
|---|
| 1 |
66-7040 |
Deflector Assy. (Incl. Ref. #2) Price: Call Us |
| 2 |
93-6654 |
DECAL-DANGER Price: Call Us |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
321-5 |
SCREW-HH Price: $0.22 |
| 6 |
49-8750 |
QUADRANT-REAR, RH Price: $17.49 |
| 7 |
93-6657 |
DECAL-DANGER Price: $16.74 |
| 8 |
74-1770 |
COVER-BELT Price: $29.22 |
| 9 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 10 |
93-6664 |
DECAL-GREASE Price: $4.77 |
| 11 |
46-7030 |
RETAINER-CABLE Price: $3.83 |
| 12 |
74-1970 |
DECAL-POSITION, GEAR Price: $3.72 |
| 13 |
74-1741 |
BRACKET-ADJUSTMENT, TRACTION Price: $16.30 |
| 14 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 15 |
49-8740 |
QUADRANT-REAR, LH Price: $17.49 |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 18 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 20 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 21 |
53-7740 |
TIRE Price: $37.99 |
| 22 |
52-2410 |
HUB-BEARING Price: $21.26 |
| 23 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $14.21 |
| 24 |
52-2440 |
SPACER-BEARING Price: $5.95 |
| 25 |
52-2450 |
BEARING-WHEEL Price: $13.12 |
| 27 |
323-12 |
SCREW-HH Price: $1.14 |
| 28 |
321-2 |
SCREW-HH Price: $2.79 |
| 29 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 30 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 31 |
61-8300 |
ARM-PIVOT, FRONT Price: $19.06 |
| 32 |
66-7560 |
FRONT SPRING ARM ASM Price: $8.97 |
| 33 |
257-3 |
WASHER-THRUST Price: $10.46 |
| 34 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 35 |
40-1940 |
WASHER Price: $1.59 |
| 36 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 37 |
49-8760 |
QUADRANT-FRONT, LH Price: $17.49 |
| 38 |
16-9119 |
HOUSING W/DECAL Price: $1,523.23 |
| 39 |
49-8770 |
QUADRANT-FRONT, RH Price: $17.49 |
| 40 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 41 |
321-7 |
SCREW-HH Price: $4.19 |
| 42 |
93-6667 |
DECAL-WARNING Price: $9.23 |
