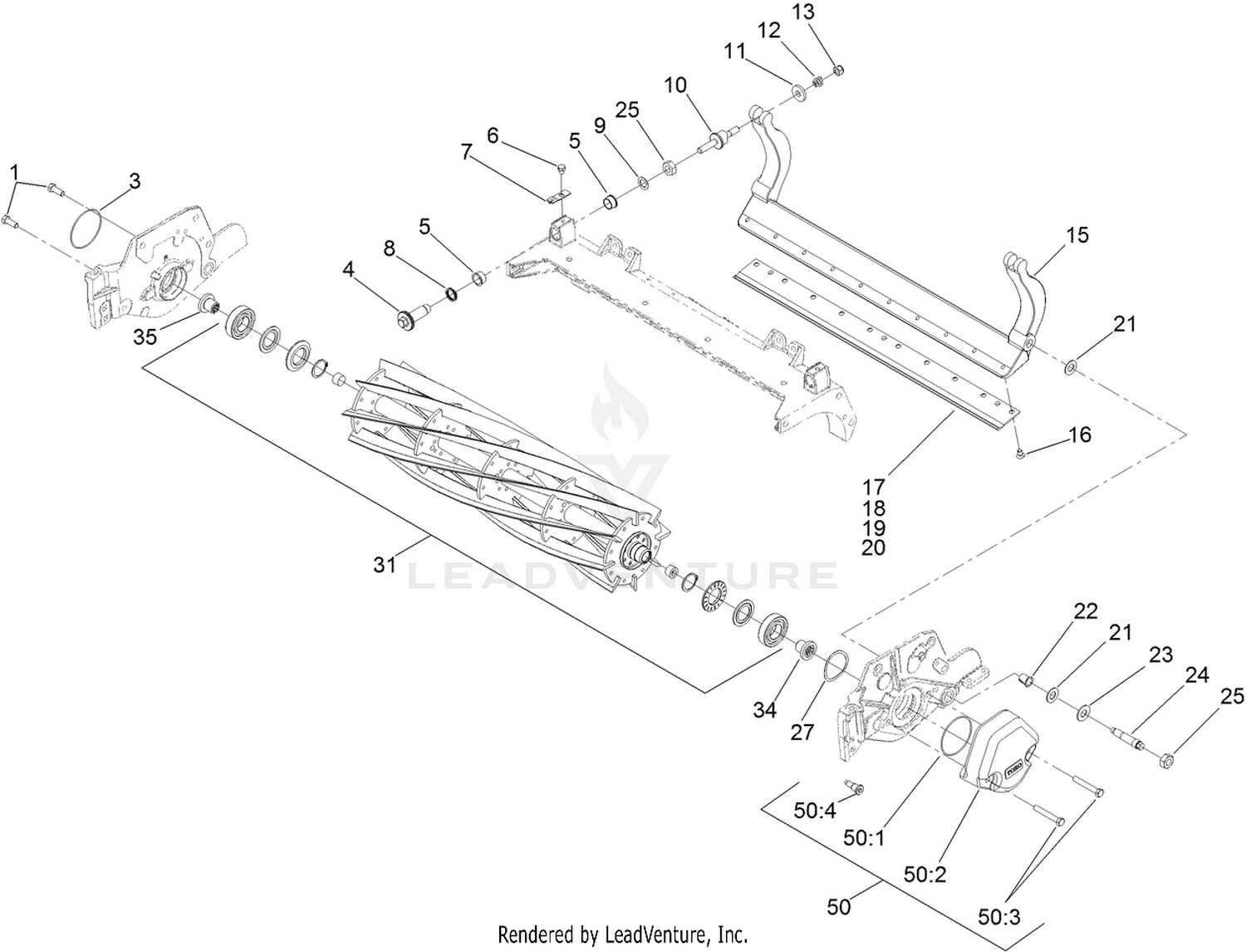

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 15 |
112-8908-01 |
BEDBAR Price: $402.52 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 17 |
147-1249 |
BEDKNIFE-RM 27IN STD This part replaces 114-9388. Price: $84.10 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 27 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 31 |
137-8471 |
EdgeSeries+, Fairway(27in), 11 Blade, Low Drag, Radial Reel ASM Price: $949.43 |
| 34 |
127-7111 |
INSERT-THREADED, 7 INCH (LH) Price: $42.48 |
| 35 |
127-7109 |
INSERT-THREADED, 7 INCH (RH) Price: $42.48 |
