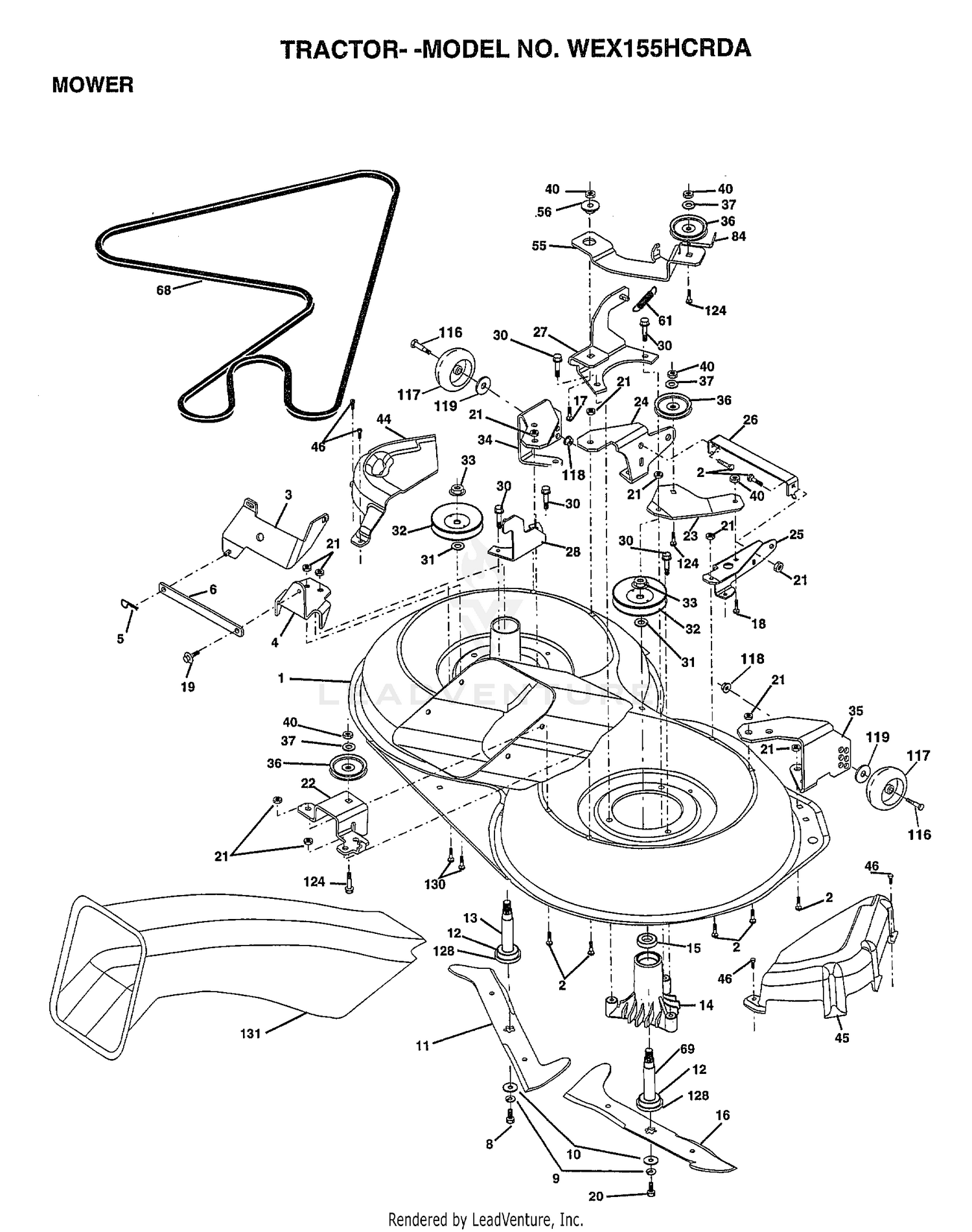

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 1 |
95-0564 |
TUBE-RH, FRONT Price: $46.46 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
95-0559 |
TUBE-RH, REAR Price: $46.46 |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 4 |
75-6200 |
HOSE Price: $66.62 |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 6 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 7 |
83-7000 |
HYD CYLINDER ASM Price: $363.59 |
| 8 |
18-7310 |
PIN-CYLINDER Price: $32.29 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
95-0560 |
TUBE-LH, FRONT Price: $109.53 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
95-0567 |
TUBE-LH, REAR Price: $109.53 |
| 11 |
165560 |
BLADE.3-1.LH.92.CRD Price: Call Us |
| 11 |
353-426 |
FITTING-90 DEG Price: $29.88 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
75-9831 |
HYD MOTOR ASM Price: $1,646.04 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
18-7160 |
PIN-CYLINDER Price: $52.01 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
353-212 |
FITTING-ELBOW, 45 DEG Price: $22.12 |
| 16 |
165561 |
BLADE.3-1.RH.CRD.92 Price: Call Us |
| 16 |
75-9840 |
HYD MOTOR ASM Price: $2,000.57 |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 17 |
95-0575 |
TUBE-VALVE, SHUTTLE Price: $45.57 |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
69-8930 |
WASHER Price: $0.81 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 22 |
69-8960 |
SPACER Price: $5.29 |
| 23 |
240-5 |
GROMMET Price: $13.66 |
| 24 |
116-4367 |
NUT-HEX This part replaces 95-0642. Price: $6.51 |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 25 |
95-0577 |
FITTING-BULKHEAD Price: $53.24 |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 26 |
95-0568-01 |
BRACKET-BULKHEAD Price: $16.21 |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 27 |
95-0562 |
DISCONTINUED Price: Call Us |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 28 |
95-0563 |
TUBE-LH Price: $68.75 |
| 29 |
321-18 |
SCREW-HH Price: $1.89 |
| 30 |
51-0600 |
HOSE ASM Price: $68.83 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 32 |
69-9760 |
COVERPLATE Price: $5.38 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3296-8 |
NUT-HEX Price: $1.29 |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 34 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 35 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
