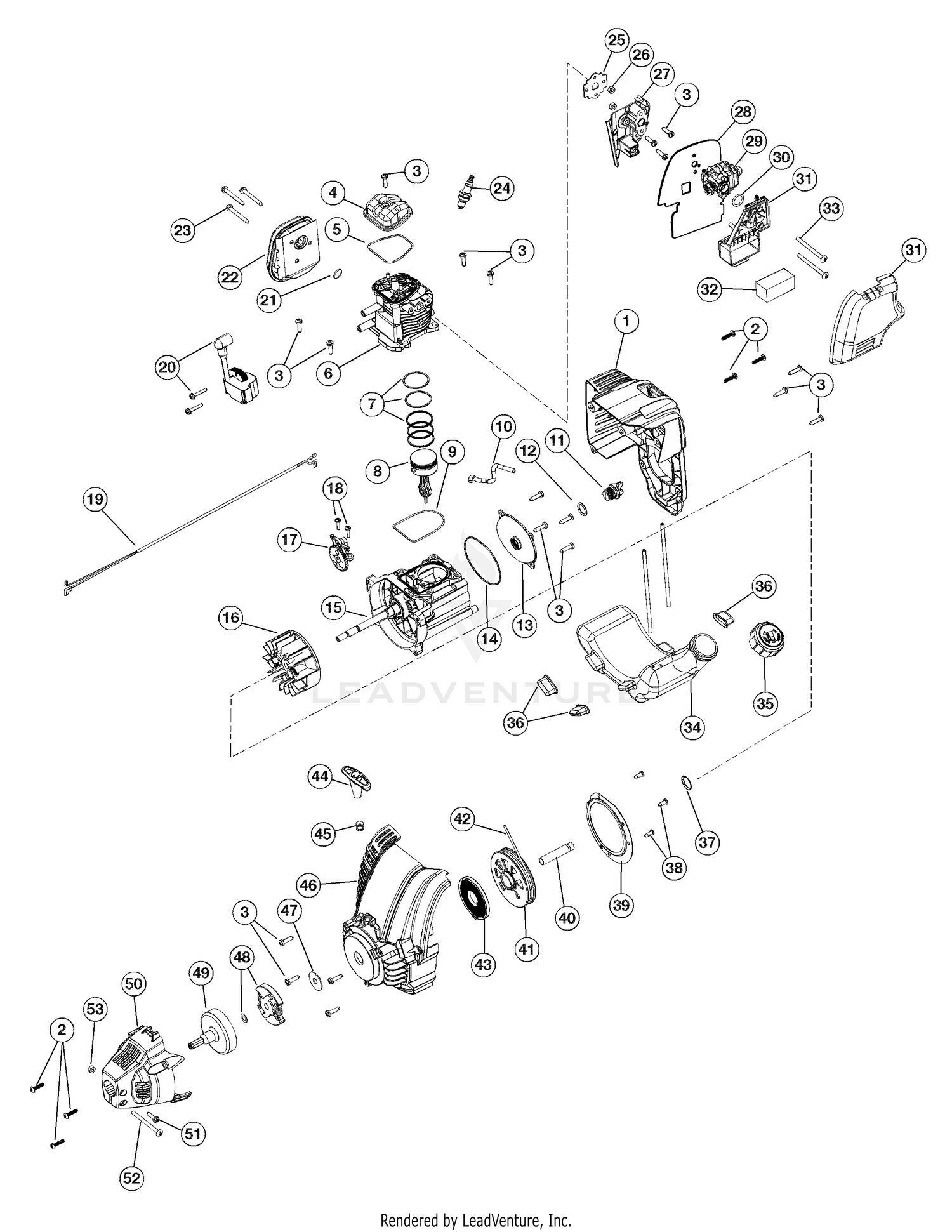

| Ref | Part Number | Description |
|---|
| 2 |
710-04194 |
Cover Screw Price: $3.66 |
| 3 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 4 |
753-05209 |
ROCKER COVER Not Available Price: |
| 5 |
721-04132 |
O-RING Not Available Price: |
| 7 |
753-05229 |
PISTON RING ASSEMBLY Not Available Price: |
| 9 |
753-05232 |
Cylinder O-Ring Not Available Price: |
| 10 |
791-182379 |
Breather Hose Price: $4.10 |
| 12 |
791-182290 |
Oil Plug O-Ring Price: $4.29 |
| 13 |
841-020721S |
CRANKCASE COVER This part replaces 753-06111. Price: $11.71 |
| 14 |
753-05238 |
Crankcase Cover O-ring Price: $9.20 |
| 16 |
753-06221 |
Flywheel Assembly Price: $18.82 |
| 18 |
710-04584 |
Cam Bracket Screw Price: $3.29 |
| 19 |
753-05264 |
Lead Wires Price: $14.70 |
| 20 |
753-05301 |
Module Assembly This part replaces 753-05243. Price: $99.77 |
| 21 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 23 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 24 |
794-00082 |
Spark Plug This part replaces 753-05255. Price: $6.35 |
| 25 |
753-05247 |
GASKET/INSULATOR Not Available Price: |
| 26 |
712-04099 |
Nut Price: $5.94 |
| 27 |
753-05249 |
Insulator Not Available Price: |
| 28 |
753-05366 |
Carburetor Gasket Price: $17.21 |
| 29 |
753-06220B |
CARBURETOR ASSEMBLY This part replaces 753-06220. Price: $41.59 |
| 30 |
791-181751 |
O-Ring Price: $3.92 |
| 32 |
753-05254 |
Air Filter Price: $4.88 |
| 33 |
710-04517 |
Screw Price: $4.71 |
| 35 |
753-1229 |
Fuel Cap Price: $19.90 |
| 36 |
753-05259 |
Fuel Tank Pads Price: $5.72 |
| 37 |
753-04288 |
Palnut Price: $9.62 |
| 38 |
1755 |
Screw This part replaces 753-1202. Price: $3.37 |
| 40 |
750-04434 |
Spacer Price: $5.91 |
| 42 |
791-613103 |
Rope This part replaces 753-05840. Price: $8.97 |
| 43 |
753-04286 |
Recoil Spring Price: $24.35 |
| 44 |
631-04164B |
Pull Handle This part replaces 631-04164A. Price: $3.38 |
| 45 |
791-611061 |
Rope Guide Price: $9.62 |
| 47 |
9162-1 |
Washer Price: $3.91 |
| 48 |
753-1238 |
Clutch & Clutch Washer Price: $39.52 |
| 49 |
791-153592 |
Clutch Drum Price: $45.60 |
| 51 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 52 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 53 |
712-0161 |
Nut-Hex Ins L-#10- This part replaces 791-180217. Price: $4.02 |
