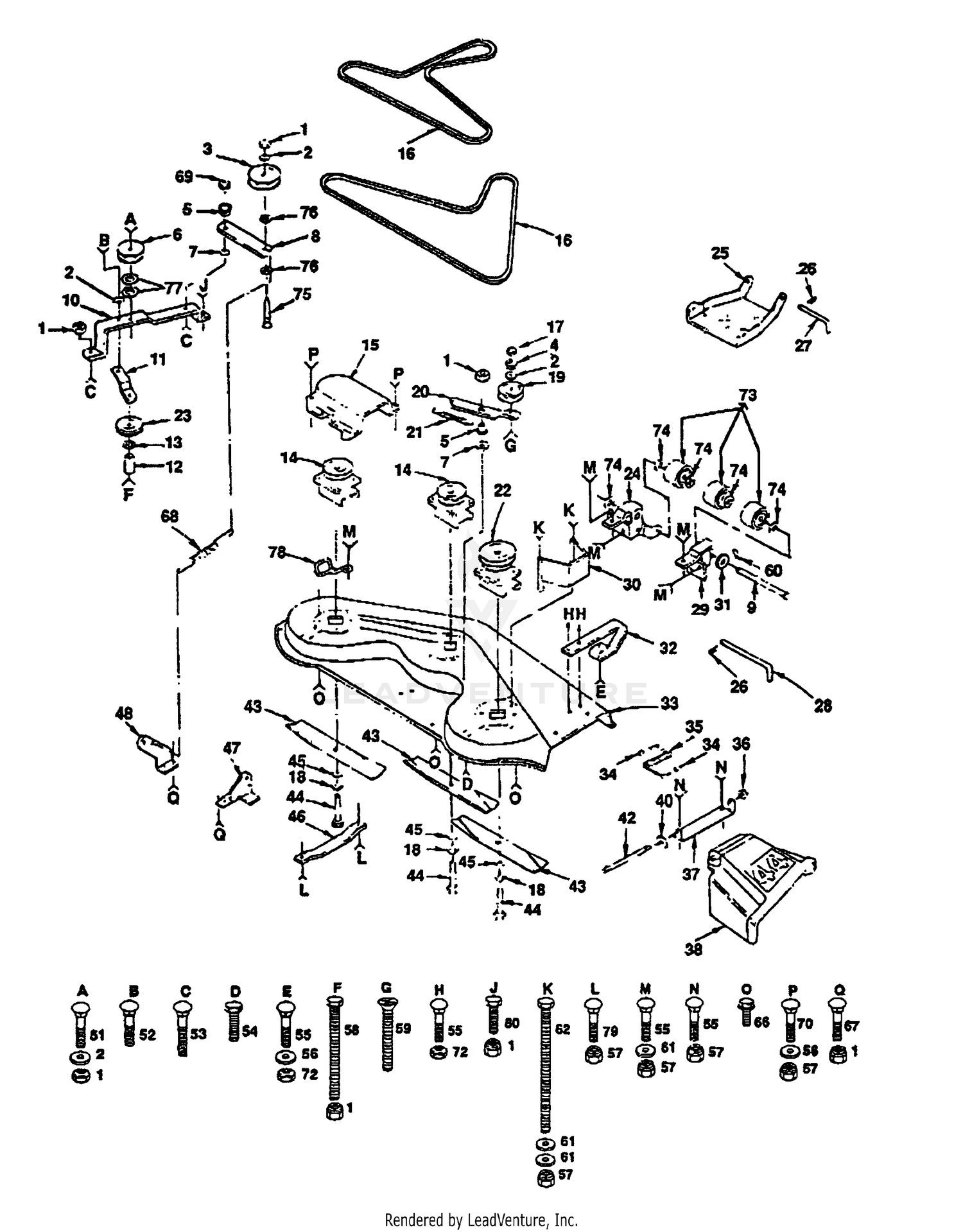

| Ref | Part Number | Description |
|---|
| 1 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 2 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 3 |
532121316 |
PULLEY.IDLER.FLAT.MOWER.BLK.PT Price: $44.99 |
| 4 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 5 |
532106902 |
SPACER RETAINER Price: $2.99 |
| 6 |
532124858 |
IDLER-INSIDE T Price: $32.98 |
| 7 |
532106513 |
WASHER, WEAR LT (1 2) Price: $5.99 |
| 8 |
532121425 |
ARM IDLER Price: $4.06 |
| 9 |
532109776 |
PIVOT PIN T Price: $8.99 |
| 10 |
532106523 |
BAR-SUPPORT YT Price: $13.32 |
| 11 |
532106522 |
BRACE-IDLER YT Price: $2.99 |
| 12 |
532121236 |
SPACER Price: $2.38 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
532136819 |
MANDREL ASM SEC 44/50 This part replaces 532121658. Price: $89.99 |
| 15 |
532106214 |
GUARD YT Price: $22.99 |
| 16 |
532106085 |
V-BELT T Price: $37.99 |
| 17 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 18 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 19 |
532102932 |
IDLER.FLAT.GTV Price: $24.99 |
| 20 |
532106526 |
ARM-IDLER YT Price: $14.99 |
| 21 |
532007644 |
SPRING This part replaces 532124885. Price: $6.23 |
| 22 |
532121705 |
JACKSHAFT YT Price: $123.99 |
| 23 |
532102403 |
IDLER-FLAT T Price: $34.99 |
| 24 |
532109599 |
BRACKET LH YTH Price: $15.31 |
| 25 |
532105662 |
LINK,PARALLEL Price: $15.31 |
| 26 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 27 |
532105744 |
ROD,FRT PARALL LT Price: $9.99 |
| 28 |
532109835 |
HINGE PIN T Price: $13.61 |
| 29 |
532109600 |
BRACKET RH YTH Price: $23.03 |
| 30 |
532108119 |
GUARD BELT HYT Price: $12.60 |
| 31 |
596040101 |
Washers This part replaces 819151616. Price: $2.99 |
| 32 |
532136321 |
RUNNER-RH This part replaces 532124950. Price: $7.99 |
| 33 |
532144729 |
MOWER HOUSING This part replaces 532121423. Price: $262.82 |
| 34 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 35 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $6.99 |
| 36 |
532110452 |
NUT PUSH M Price: $2.99 |
| 37 |
531155201 |
SERVICE KIT BRACKET BRACKET This part replaces 532109743. Price: $2.99 |
| 38 |
532109785 |
DEFLECTOR SHIELD Price: $24.99 |
| 40 |
819111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: $5.99 |
| 42 |
532106735 |
ROD-HINGE T Price: $8.99 |
| 43 |
532025034 |
BLADE.106635X.44(NLA) This part replaces 532122265. Price: $19.99 |
| 44 |
874610624 |
BOLT.3/8-24X1-1/2 Price: $4.99 |
| 45 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 46 |
532007631 |
RUNNER LH This part replaces 532125074. Price: $14.99 |
| 47 |
532123807 |
BRKT SUSP REAR RH Price: $12.33 |
| 48 |
532123808 |
BRKT SUSP REAR LH Price: $6.73 |
| 51 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 52 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 53 |
872140612 |
Soft, Carriage 3/8-16 x 1-1/2 Price: $2.99 |
| 54 |
874760620 |
BOLT Price: $4.99 |
| 55 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 56 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 57 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
596564405 |
Bolts This part replaces 874760648. Price: $2.99 |
| 59 |
874110632 |
SCREW YT Price: $2.99 |
| 60 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 61 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 62 |
874760580 |
Bolt, Hex 5/16-18 x 5 Price: $2.99 |
| 66 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 67 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $4.99 |
| 68 |
532102727 |
SPRING.EXT.8.5" Price: $6.99 |
| 69 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 70 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 72 |
532124949 |
LOCKNUT Price: $3.99 |
| 73 |
532109729 |
ROLLER T Price: $6.99 |
| 74 |
596040101 |
Washers This part replaces 819151610. Price: $2.99 |
| 75 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 76 |
596134901 |
GSPH This part replaces 819131210. Price: $2.99 |
| 77 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 78 |
532121352 |
BELT RETIANER Price: $3.00 |
| 79 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 80 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
807919 |
Body-Carburetor, Upper Price: Call Us |
| 95 |
805538 |
Screw Price: Call Us |
| 98 |
808177 |
Idle Speed Kit Price: Call Us |
| 103 |
805546 |
FIoatAssembly Price: Call Us |
| 108 |
805539 |
Choke Valve Price: Call Us |
| 117 |
805852 |
Jet-Main Price: Call Us |
| 119 |
805540 |
Screw Price: Call Us |
| 125 |
808251 |
Carburetor Assembly Price: Call Us |
| 130 |
805554 |
Throttle Valve Price: Call Us |
| 131 |
807720 |
Shaft-Throttle Price: Call Us |
| 141 |
807722 |
Shaft-Choke Price: Call Us |
| 187 |
296004 |
Fuel-Hose Price: Call Us |
| 307 |
805025 |
Screw Price: Call Us |
| 387 |
491922 |
Pump-Fuel Price: Call Us |
| 601 |
93053 |
Clamp-Hose Price: Call Us |
| 788 |
807685 |
Bracket-Pump Price: Call Us |
| 823 |
805317 |
Screw-HFH Price: Call Us |
| 918 |
393815 |
Line-Vacuum Price: Call Us |
| 947 |
807664 |
Solenoid Price: Call Us |
