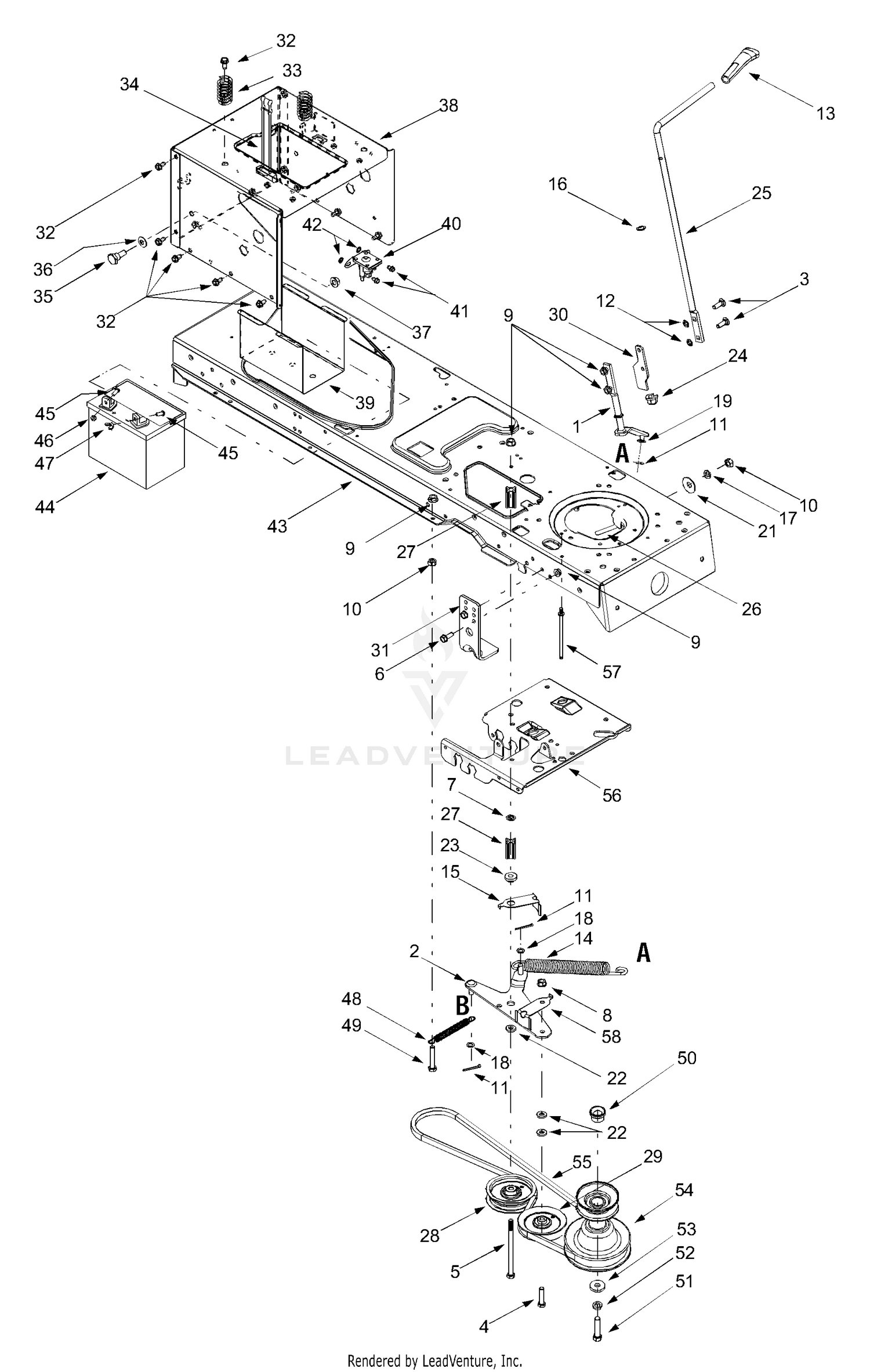

| Ref | Part Number | Description |
|---|
| 1 |
647-0064 |
ENGAGEMENT LEVER ASSEMBLY Not Available This part replaces 647-0046A. Price: |
| 2 |
683-0450 |
ENGAGEMENT PLATE ASSEMBLY Not Available Price: |
| 3 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00 Price: $3.68 |
| 4 |
710-0520 |
Hex Cap Screw, 3/8-16 x 1.5 Price: $3.93 |
| 5 |
710-0831 |
SCREW 3/8-16 x 5.5" GR5 Not Available Price: |
| 6 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 7 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 8 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 11 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 12 |
726-0201 |
Speed Nut, .3125 Price: $6.01 |
| 13 |
731-2111B |
PTO KNOB Not Available This part replaces 731-2111A. Price: |
| 14 |
732-1170 |
Extension Spring, .75 x 6.75 Price: $9.76 |
| 15 |
732-0991A |
BELT GUARD Not Available Price: |
| 16 |
736-0108 |
Flat Washer, .510 x .750 x .033 Price: $6.07 |
| 17 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 18 |
736-0140 |
Flat Washer, .385 x .62 x .063 Price: $6.20 |
| 19 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 20 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 736-3000. Price: $3.95 |
| 21 |
736-0331 |
Bell Washer, .39 x 1.13 x .062 Price: $3.50 |
| 22 |
736-3010 |
Flat Washer, .407 x .812 x .135 Price: $4.02 |
| 23 |
738-0372B |
Shoulder Spacer This part replaces 738-0372. Price: $8.78 |
| 24 |
741-0708 |
Hex Split Flange Bearing, .5 Price: $3.90 |
| 25 |
747-1112D-0637 |
PTO ENGAGEMENT HANDLE Not Available This part replaces 747-1112D. Price: |
| 26 |
747-1286A |
BELT KEEPER ROD Not Available This part replaces 747-1286. Price: |
| 27 |
748-0415B |
SPACER .385ID x 1.54" Not Available This part replaces 748-0415A. Price: |
| 28 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 756-0627B. Price: $28.58 |
| 29 |
756-1208 |
Idler Pulley, 4.0 Price: $32.98 |
| 30 |
783-0744A |
Engagement Stop Price: $36.29 |
| 31 |
783-04467-0637 |
DECK UP STOP BRACKET Not Available This part replaces 783-0891B. Price: |
| 32 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 33 |
732-3080A |
Compression Spring, 1.28 x 3.5 This part replaces 732-3080. Price: $12.91 |
| 34 |
723-0444 |
BATTERY STRAP Not Available Price: |
| 35 |
738-1020 |
Shoulder Screw, .625 x .5, 7/16-20 Price: $6.88 |
| 36 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 37 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 38 |
783-1031A |
UPPER HITCH PLATE Not Available Price: |
| 39 |
783-0349 |
BATTERY TRAY Not Available Price: |
| 40 |
925-1426A |
Solenoid, 12-Volt, 100 Amp This part replaces 725-1426. Price: $24.63 |
| 41 |
710-0599 |
Self Tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 42 |
736-0222 |
Lock Washer, 1/4 Price: $5.07 |
| 43 |
683-0304 |
LOWER FRAME Not Available Price: |
| 44 |
925-1707D |
BATTERY Not Available This part replaces 725-1706. Price: |
| 45 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 46 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 47 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 48 |
732-04197 |
SPR:EXTN:.50 DIA X 5.0 LG This part replaces 732-1165. Price: $6.36 |
| 49 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 50 |
750-0956 |
Spacer Cup This part replaces 750-0596. Price: $17.79 |
| 51 |
710-3029 |
Hex Head Cap Screw, 7/16-20 x 1.25 Price: $3.82 |
| 52 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 53 |
736-0322 |
Flat Washer, .450 x 1.25 Price: $8.42 |
| 54 |
756-0982B |
Engine Pulley, 3.56 OD x 5.56 Price: $67.07 |
| 55 |
954-0497 |
PTO Belt This part replaces 754-0497. Price: $42.53 |
| 56 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653D. Price: $78.74 |
| 57 |
711-1044A |
Belt Guard Pin This part replaces 711-1044. Price: $7.61 |
