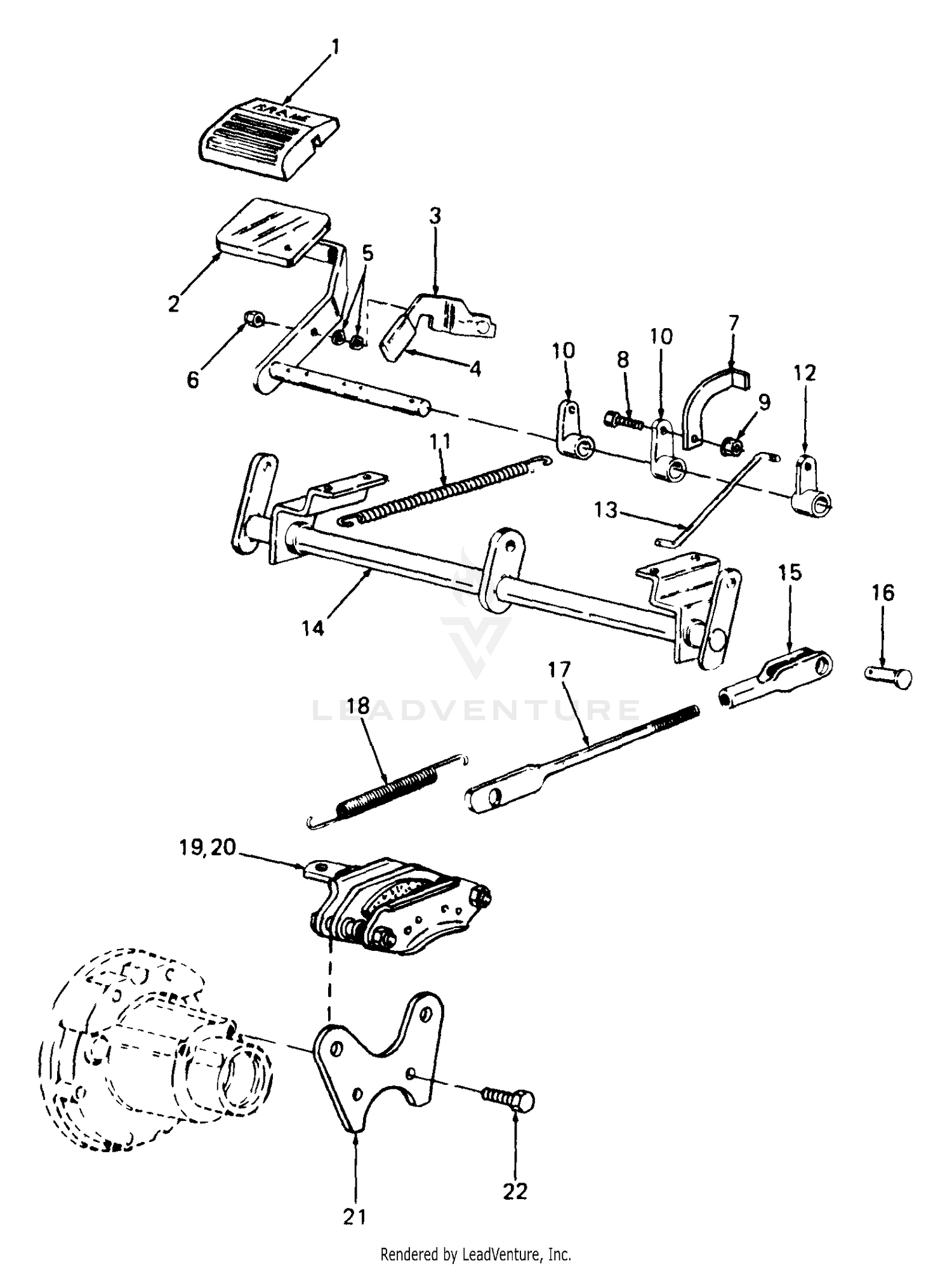

| Ref | Part Number | Description |
|---|
| 1 |
924-3000 |
BRAKE & CLUTCH PEDAL PAD This part replaces 724-3004. Price: $17.21 |
| 1 |
93-7974-03 |
PLATE-BOX, BATTERY This part replaces 93-7974. Price: $87.76 |
| 2 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 2 |
703-0845A |
Pedal Assy, Brake Price: Call Us |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
703-1393 |
BRACKET, PARKING BRAKE Not Available Price: |
| 4 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 4 |
920-3019 |
PARKING BRAKE GRIP Not Available This part replaces 720-3019. Price: |
| 5 |
33005-00 |
NUT-HF Price: $0.68 |
| 5 |
736-3001 |
WAVE WASHER Not Available Price: |
| 6 |
108-3282 |
HOSE-FUEL This part replaces 92-7522. Price: $36.93 |
| 6 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 Price: $3.38 |
| 7 |
66-8121 |
STANDPIPE Price: $23.18 |
| 7 |
703-2280-0637 |
START SWITCH BRACKET (POWDER BLACK) Not Available This part replaces 703-2280. Price: |
| 8 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 8 |
710-0216 |
Bolt, 3/8 X 3/4 Type 5 This part replaces 710-3000. Price: $3.93 |
| 9 |
46-6560 |
BUSHING Price: $2.94 |
| 9 |
712-3005 |
Nut, Hex Flanged Lock, 3/8-16 GR5 Price: $5.99 |
| 10 |
748-3006 |
BRAKE LEVER ROD Not Available Price: |
| 10 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 11 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 11 |
932-3010 |
EXTENSION SPRING 7.32LG x .50 O.D. Not Available This part replaces 732-3010. Price: |
| 12 |
304-46 |
DRAINCOCK Price: $7.55 |
| 12 |
703-0900 |
LEVER, BRAKE Not Available Price: |
| 13 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 13 |
747-3109A |
ROD, BRAKE LINK Not Available Price: |
| 14 |
63-8410 |
WASHER Price: $1.76 |
| 14 |
703-1395 |
SHAFT ASSY, BRAKE Not Available Price: |
| 15 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 15 |
719-3013 |
Clevis, Adjustment Price: $24.95 |
| 16 |
105-7949 |
TANK-FUEL This part replaces 92-7422. Price: $768.96 |
| 16 |
711-3010 |
CLEVIS PIN Not Available Price: |
| 17 |
62-7650 |
GASKET Price: $4.28 |
| 17 |
711-3130 |
BRAKE ROD Not Available Price: |
| 18 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 18 |
932-0260 |
Extension Spring .50" O.D. x 6.5" Lg. This part replaces 732-0260. Price: $18.25 |
| 19 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 20 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 21 |
110-6184 |
HOSE-FUEL This part replaces 92-7521. Price: $49.59 |
| 21 |
703-1787 |
BRACKET-BRAKE MTG Not Available Price: |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
