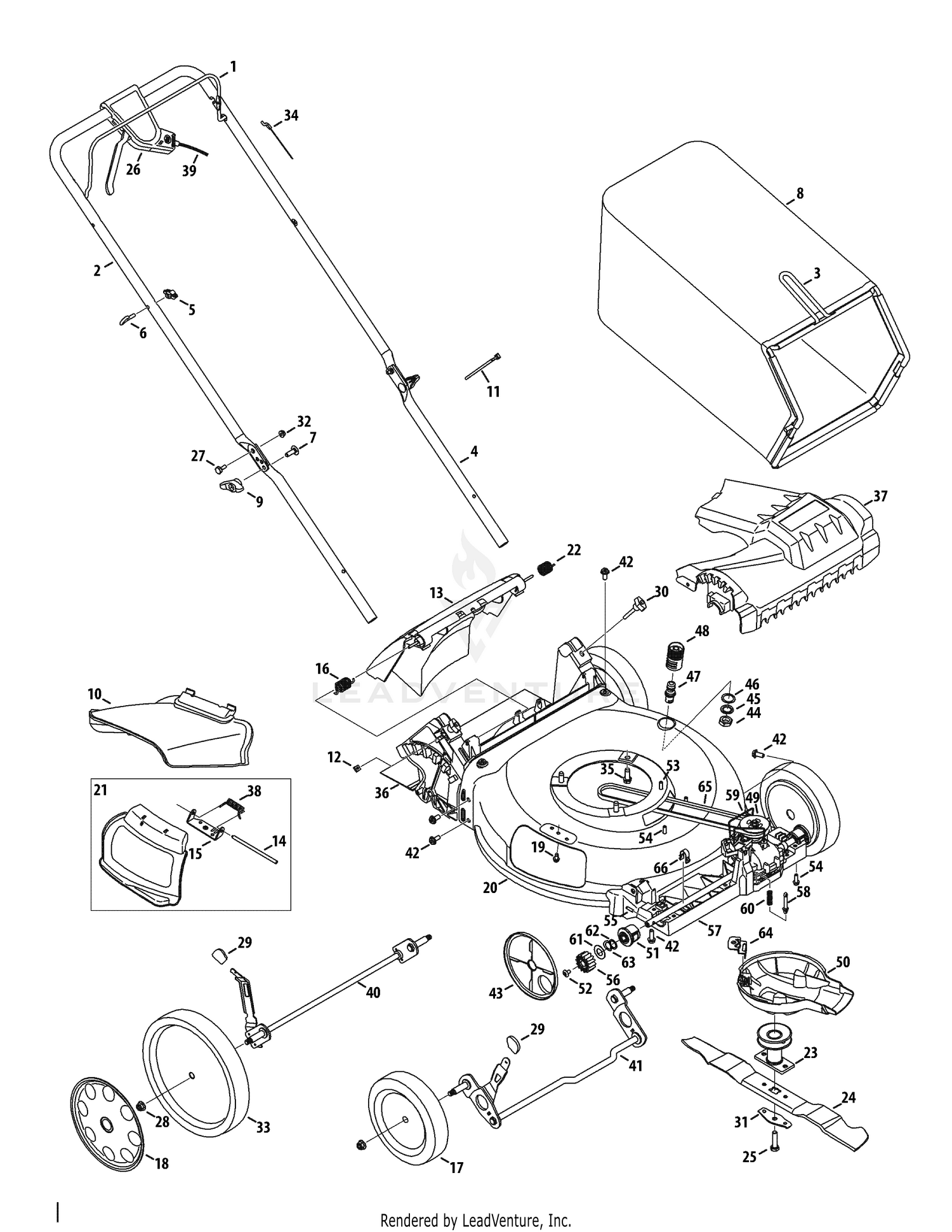

| Ref | Part Number | Description |
|---|
| 1 |
747-05267C |
Blade Control This part replaces 747-05267. Price: $14.84 |
| 2 |
749-04679D-0637 |
UPPER SQUEEZE HANDLE (POWDER BLACK) This part replaces 749-04679-0637. Price: $40.67 |
| 3 |
647-04271-0637 |
Grass Bag Frame This part replaces 747-05226-0637. Price: $36.15 |
| 4 |
749-07298-0637 |
LOWER HANDLE (POWDER BLACK) This part replaces 749-04608A-0637. Price: $8.76 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
710-04998 |
Carriage Screw, 5/16-18 Price: $4.89 |
| 9 |
720-04124 |
Wing Knob Price: $4.37 |
| 10 |
731-07131 |
Side Chute Price: $13.83 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
712-04222 |
Nut, Sq., 1/4-20 Price: $4.77 |
| 14 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 15 |
787-01779 |
Chute Deflector Bracket Price: $4.13 |
| 16 |
732-05061B |
TORSION SPRING (RH) This part replaces 732-04673. Price: $4.64 |
| 17 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 18 |
731-07199 |
Hubcap Price: $8.85 |
| 19 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 20 |
753-06965B |
SERVICE REPLACEMENT KIT (787-01802A) This part replaces 787-01802-0638. Price: $72.94 |
| 22 |
732-04674A |
Torsion Spring - LH This part replaces 732-04674. Price: $3.76 |
| 23 |
687-02528 |
BLADE ADAPTER Price: $34.68 |
| 24 |
942-0741A |
Mulching Blade Price: $27.55 |
| 25 |
710-1044 |
Screw , 3/8-24 x 1.50 Price: $3.48 |
| 26 |
753-06060A |
KIT This part replaces 753-06060. Price: $23.77 |
| 27 |
738-04419A |
Sldr. Screw, .375 x .126 x 1/4-20 Price: $3.61 |
| 28 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 29 |
720-04131A |
Adjustment Lever Knob This part replaces 720-04131. Price: $5.34 |
| 30 |
720-05067A |
Wing Nut, Red This part replaces 720-04127. Price: $5.01 |
| 31 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 32 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 33 |
634-05063 |
Wheels - Rear This part replaces 634-04626. Price: $37.85 |
| 34 |
946-04661A |
CONTROL CABLE 37.58" This part replaces 946-04661. Price: $11.88 |
| 35 |
710-0654A |
TT Sems Screw, 3/8-16 x 1.0 Price: $3.75 |
| 36 |
731-07203 |
Trail Shield Price: $9.41 |
| 37 |
731-07790A |
FRONT COVER This part replaces 731-07208. Price: $26.02 |
| 38 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 39 |
946-04655A |
Drive Cable This part replaces 946-04655. Price: $21.28 |
| 40 |
611-04144B |
REAR AXLE This part replaces 911-04144. Price: $32.33 |
| 41 |
753-06704 |
KIT-AXLE REPLACEMENT Not Available This part replaces 611-04160P. Price: |
| 42 |
710-04995A |
SCREW 5/16-14 x .750 This part replaces 710-04995. Price: $3.61 |
| 43 |
731-07240A |
Wheel Dust Cover This part replaces 731-07240. Price: $5.30 |
| 44 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 45 |
736-0225 |
Washer, Lock, 5/8" Price: $3.90 |
| 46 |
936-0570 |
FLAT WASHER Not Available Price: |
| 47 |
737-04003D |
Water Nozzle Price: $20.69 |
| 48 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 49 |
753-09444 |
TRANSMISSION KIT (SP FWD 53CM WALK) This part replaces 918-04881. Price: $130.17 |
| 50 |
631-04444 |
ENGINE BAFFLE ASSEMBLY Not Available Price: |
| 51 |
641-00014 |
SPHERICAL BEARING ASSEMBLY Not Available Price: |
| 52 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 53 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 54 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 55 |
915-0221 |
Dowel Pin Price: $3.93 |
| 56 |
917-04801 |
Spur Gear, 14T - RH Price: $8.34 |
| 56 |
917-04802 |
Spur Gear, 14T - LH Price: $8.03 |
| 57 |
731-07184A |
Lower Tray Not Available Price: |
| 58 |
731-07355 |
Spring Body Price: $4.99 |
| 59 |
732-04675B |
TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 60 |
732-04704 |
Compression Spring Price: $3.76 |
| 61 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
| 62 |
736-04202 |
Wash., Flat, .504 x .700 x .010 Price: $3.00 |
| 63 |
736-04495 |
Wash., Saddle, .505 x .740 x .125 Price: $3.50 |
| 64 |
787-01800 |
BRACKET-ENGINE BAFFLE NLAUD Not Available Price: |
| 65 |
954-04260 |
V-Belt Price: $26.49 |
