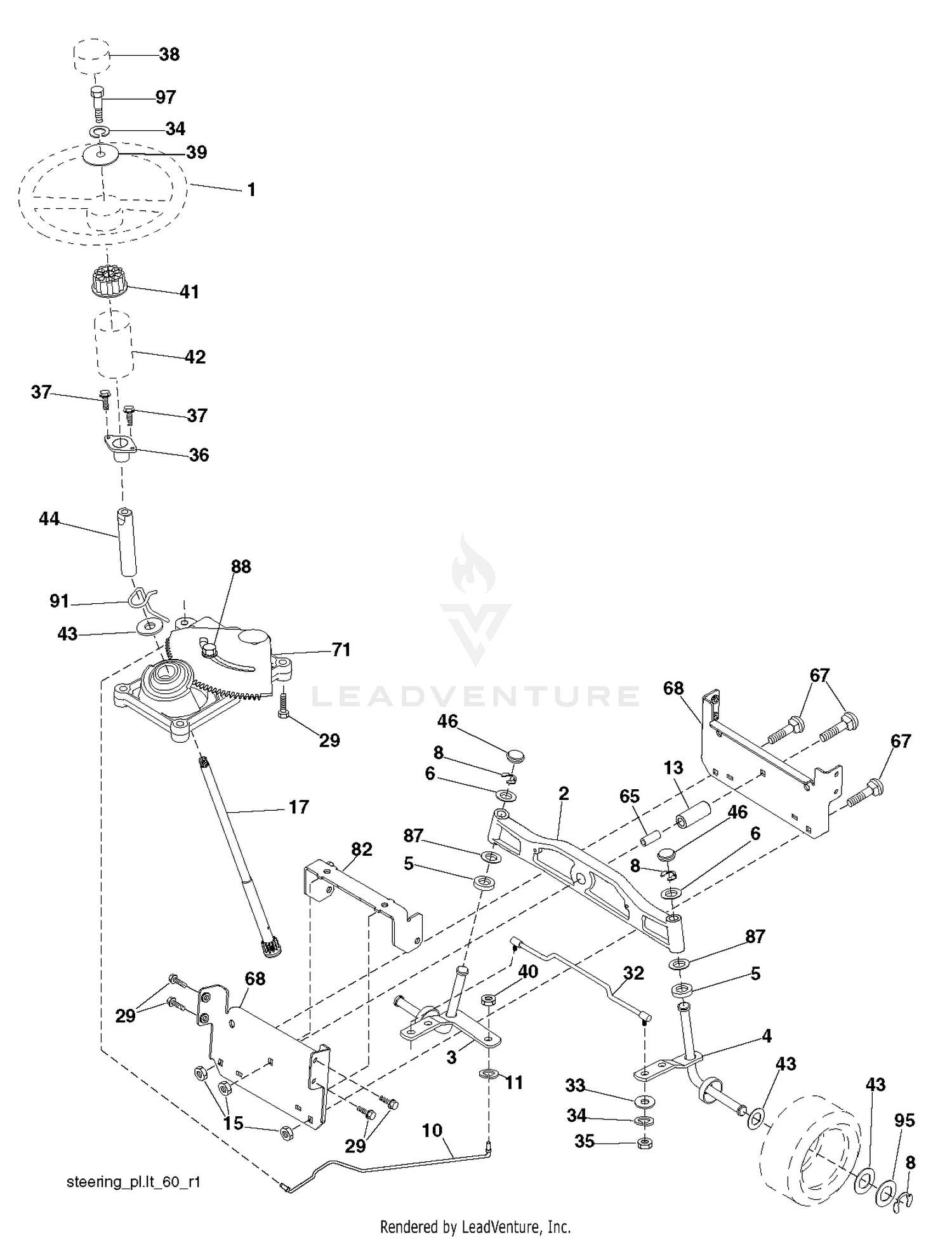

| Ref | Part Number | Description |
|---|
| 1 |
532424146 |
WHEEL.STEERING.STDSRR.BLK/OV Price: $56.99 |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $112.99 |
| 3 |
22-8330 |
PLUG Price: $64.59 |
| 3 |
532169840 |
SPINDLE.ASM.LH.15"TIRES Price: $17.99 |
| 4 |
22-8340 |
SPRING Price: $19.09 |
| 4 |
532169839 |
SPINDLE.ASM.RH.15"TIRES Price: $17.99 |
| 5 |
22-8350 |
BALL Price: $12.28 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 6 |
532121748 |
WASHER Price: $1.99 |
| 7 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 8 |
22-8380 |
RETAINER Price: $17.86 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
22-8490 |
RING-SNAP Price: $6.51 |
| 10 |
22-8480 |
RING-SNAP Price: $49.87 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $40.99 |
| 11 |
22-8390 |
RETAINER Price: $56.56 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 12 |
22-8400 |
SPACER Price: $42.41 |
| 13 |
22-8410 |
SPRING Price: $17.61 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $6.99 |
| 14 |
22-8420 |
SPOOL Price: $437.22 |
| 15 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $31.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $59.99 |
| 33 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 34 |
810040500 |
LOCKWASHER Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT, BUSHING This part replaces 532155099. Price: $5.99 |
| 37 |
532152927 |
SCREW Price: $3.99 |
| 38 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 39 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 41 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 42 |
532169633 |
BOOT.STEERING.SHAFT.BLACK Price: $5.99 |
| 43 |
532121749 |
WASHER Price: $1.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 46 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE Price: $2.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 68 |
532169827 |
BRACE.AXLE.15"TIRES Price: $14.99 |
| 71 |
532175146 |
STEERING ASM Price: $61.99 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 Price: $11.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $3.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $3.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $8.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $2.99 |
